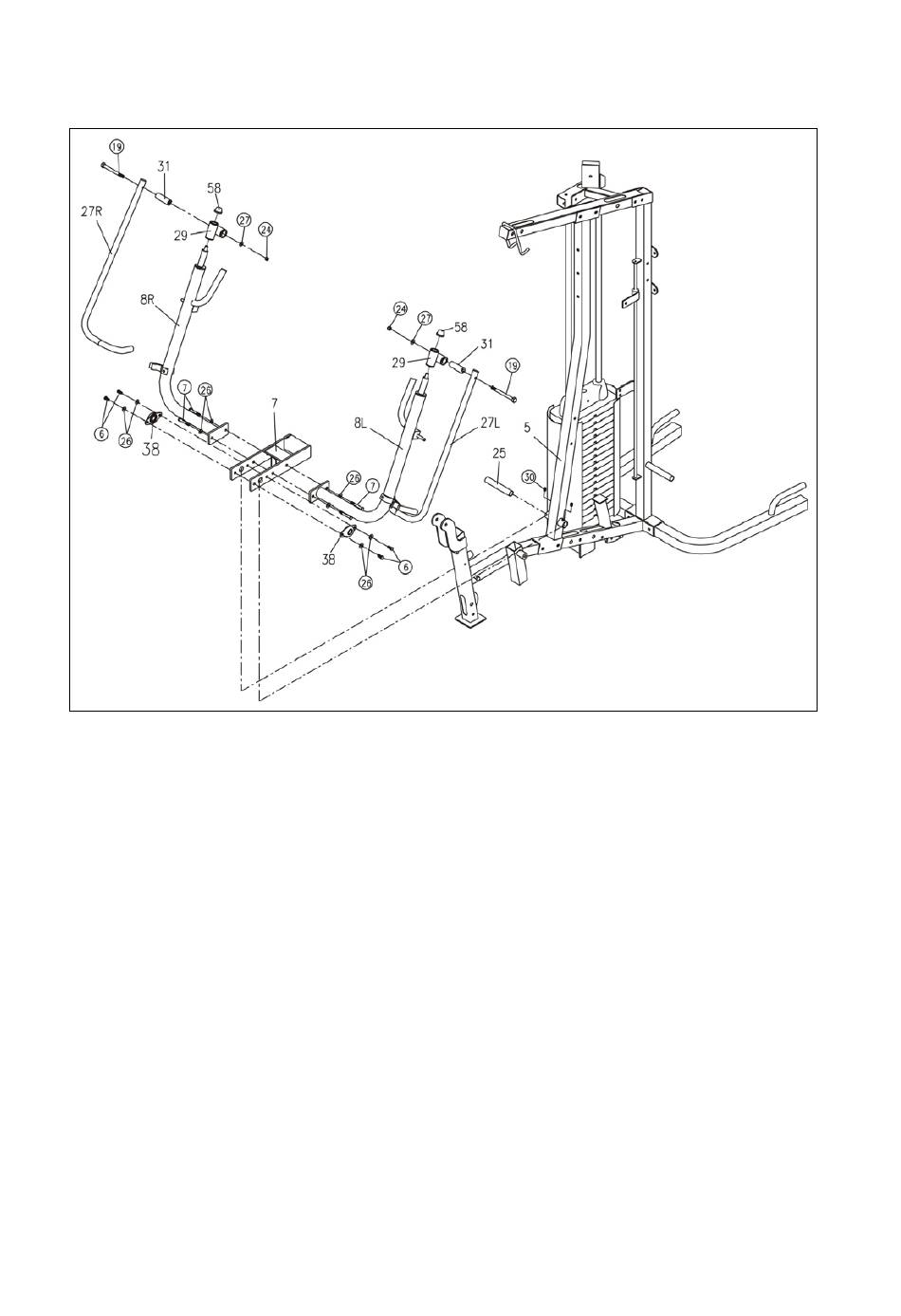

8.Attach chest-extension handlebars (8R&L) to the chest-extension rotating frame (7), which was already attached
to backrest tube (5) in step 4, with washers (26) and bolt (M10x30mm)(7). Slide crossed bearing covers (29) to the
chest-extension handlebars (8R&L), tighten with nut canopy (58). Connect pulling bar (27R&L) and crossed
bearing cover (29) through limiting bushing (31), bolt (M12x120mm)(19), washer (27) and locknut (24).
7
