Sodex Sport S28211 Aassembly Instructions

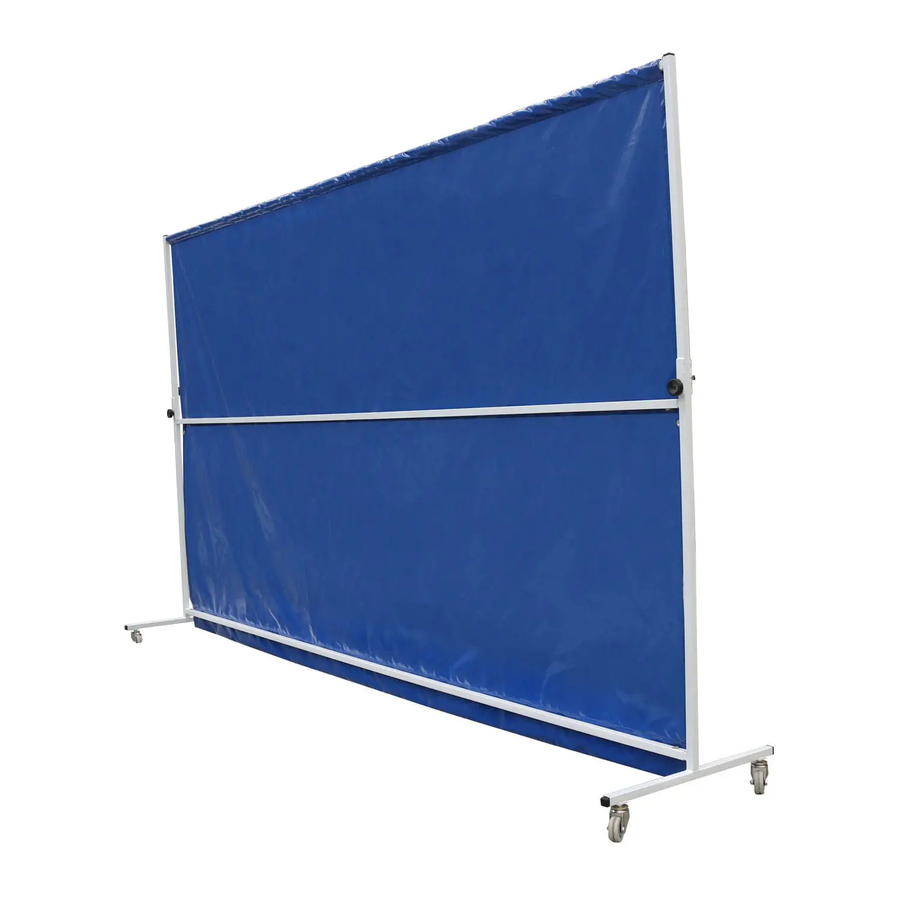

Foldable mobile wall

Table of Contents

Download this manual

DESCRIPTION

Steel structure 30x30

Powder coated

CONFORM

The assembly time for foldable mobile wall is estimated at 15 minutes with 1 people.

The equipement has to be regularly maintained by the owner. It is adviced to:

- Check every week that all the screws are correctly tightened.

- Fix paint defects if the module has been damaged, using the adapted paint, specified by the

manufacturer.

- Replace all damaged or missing parts with a spare part recommended by the manufacturer.

One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has

to be done within the legal period of the reception of the material. The warranty will not apply to:

All degradation during the transport.

All degradation due to use differing from which was intended.

All degradation due to poor maintenance.

Any defect claimed after the end of the legal period.

Any damaged due to a faulty installation and assembly of the module.

Assembly INSTRUCTIONS

FOLDABLE MOBILE WALL

PRODUCT REF

S28211

UNIT

Table of Contents

Do you have a question about the S28211 and is the answer not in the manual?

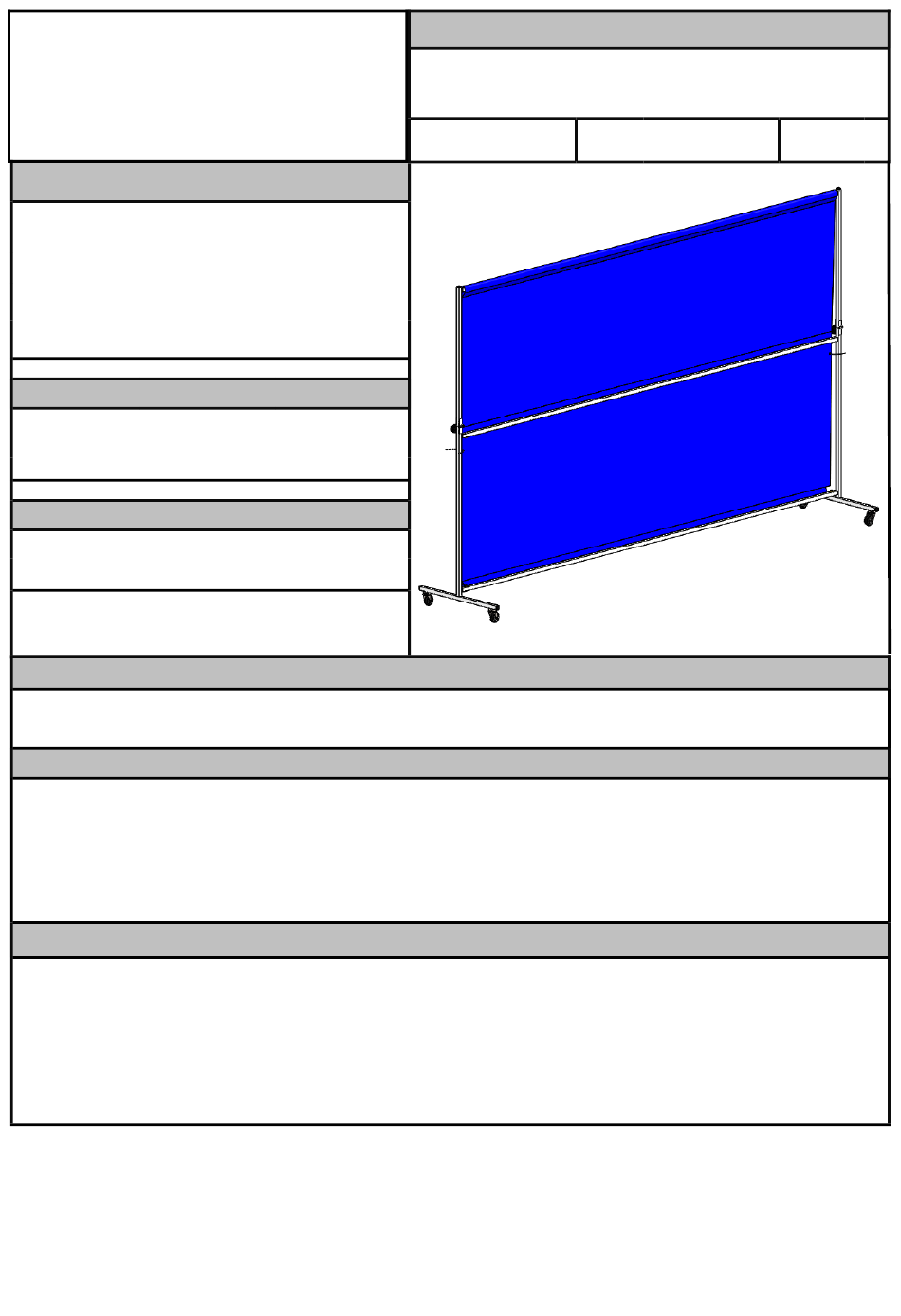

Page 1 ASSEMBLY INSTRUCTIONS FOLDABLE MOBILE WALL S28211 UNIT PRODUCT REF DESCRIPTION Steel structure 30x30 Powder coated CONFORM ASSEMBLY TIME The assembly time for foldable mobile wall is estimated at 15 minutes with 1 people. MAINTENANCE The equipement has to be regularly maintained by the owner. It is adviced to: - Check every week that all the screws are correctly tightened.
Page 2 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Wrench 17mm Mallet INCLUDED ITEMS 1– ASSEMBLY OF THE FRAME ‘T’ SHAPE (x2) PVC cap 30x30 Turn knob ISO Swivel wheel D80 without M10x30 brake thread M12 PVC cap 30x30 Swivel wheel D80 with brake thread M12 NECESSARY ITEMS...
Page 3 ASSEMBLY 2– ASSEMBLY OF THE TARP STEP 1: Insert the transversal bar into the tarp Tarp Transversal bar STEP 2: Assembly of the tarp to the frame Screw BC M10x25 + Washer BC 10 Tarp Transversal bar Screw BC M10x25 + Washer BC 10 Screw BC M10x25 + Washer BC 10...
Page 4 ASSEMBLY 3– FIXING THE SANDOW Maintain the tarp by tying it to the frame Sandow 300 mm Eyelets D12 Ballast NECESSARY ITEMS...
Page 5 PACKING LIST FOLDABLE MOBILE WALL PRODUCT REF S28211 Index C UNIT NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing Method N° (kg) (mm) Plastic bubbles S28211-21 Right Side + Left Side 1 + 1 + cardboard 5 1360x830x250 + S28211-22...
