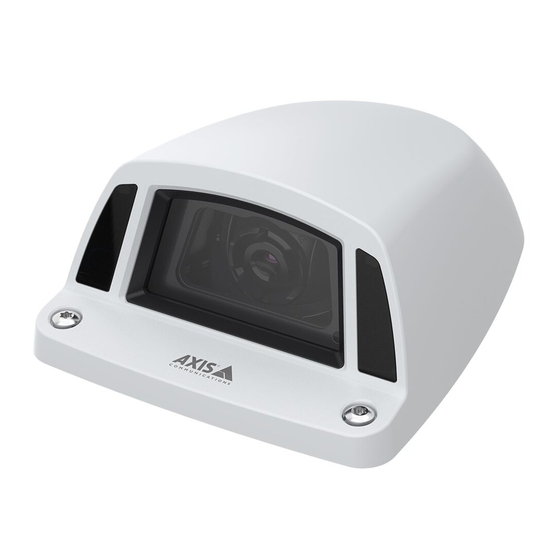

AXIS P3925-LRE Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P3925-LRE and is the answer not in the manual?

Questions and answers

Related Manuals for Axis P3925-LRE

Summary of Contents for Axis P3925-LRE

  • Page 1 AXIS P3925-LRE Network Camera User Manual...

  • Page 2: Table Of Contents

    AXIS P3925-LRE Network Camera Table of Contents Get started ..........

  • Page 3: Get Started

    See the product’s datasheet for lens alternatives. Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
  • Page 4 Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 5: Webpage Overview

    AXIS P3925-LRE Network Camera Get started Webpage overview Live view control bar Live view Product name User information, color themes, and help Video control bar Settings toggle...
  • Page 6 AXIS P3925-LRE Network Camera Get started Settings tabs...

  • Page 7: Additional Settings

    AXIS P3925-LRE Network Camera Additional settings Additional settings Adjust the image This section includes instructions about how to configure your device. If you want to learn more about how certain features function, go to Learn more on page 19. Level the camera To adjust the view in relation to a reference area or object, use the leveling guide in combination with a mechanical adjustment of the camera.
  • Page 8 AXIS P3925-LRE Network Camera Additional settings • To lock the current exposure settings, select Hold current. Optimize IR illumination In most cases, the exposure of the image is automatically adjusted to obtain optimal image quality. If the camera is placed close to a wall or a corner, it can sometimes result in saturation of parts of the image.
  • Page 9 AXIS P3925-LRE Network Camera Additional settings Reduce motion blur in low-light conditions To reduce motion blur in low-light conditions, adjust one or more of the following settings in Settings > Image > Exposure: • Move the Blur-noise trade-off slider toward Low motion blur.
  • Page 10 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
  • Page 11 AXIS P3925-LRE Network Camera Additional settings 1. Go to Settings > System > Orientation and click 2. Adjust the size and placement of the rectangle in the camera’s live view around the area of interest, for example where the license plates of passing cars are expected to appear. You can then see the number of pixels represented by the sides of the rectangle.

  • Page 12: View And Record Video

    AXIS P3925-LRE Network Camera Additional settings 3. Upload an image and click Done. 4. Click Create overlay. 5. Select Image and click Create. 6. Select Image and click Ok. 7. Select Import and upload an image. 8. Select the image from the drop-down list.

  • Page 13: Set Up Rules And Alerts

    To watch this video, go to the web version of this document. www.axis.com/products/online-manual/66917 How to record a video stream when the camera detects motion Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection.
  • Page 14 1. Go to Settings > System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, under Application, select AXIS Video Motion Detection (VMD). 4. In the list of actions, under Recordings, select Record video while the rule is active.
  • Page 15 9. Go to System > Events > Rules and add a rule. 10. Type a name for the rule. 11. In the list of conditions, select AXIS Video Motion Detection. 12. In the list of actions, select Use overlay text.
  • Page 16 Provide visual indication of an ongoing event You have the option to connect the AXIS I/O Indication LED to your network camera. This LED can be configured to turn on whenever certain events occur in the camera. For example, to let people know that video recording is in progress.
  • Page 17 7. Create a second rule and select the same Condition as in the first rule. 8. In the list of actions, select Toggle I/O while the rule is active, and then select the port the AXIS I/O Indication LED is connected to.

  • Page 18: Cleaning Recommendations

    AXIS P3925-LRE Network Camera Cleaning recommendations Cleaning recommendations You can clean this device with detergent and high-pressure water. Maximum water temperature is 80 °C (176 °F). 1. Apply detergent with a cloth. 2. Rinse the device using a water hose or high-pressure water.

  • Page 19: Learn More

    The image shows how the field of view and aspect ratio can change between two different capture modes. Which capture mode to choose depends on the requirements of frame rate and resolution for the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Privacy masks A privacy mask is a user-defined area that prevents users from viewing a part of the monitored area.

  • Page 20: Overlays

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.
  • Page 21 AXIS P3925-LRE Network Camera Learn more Maximum bitrate (MBR) With maximum bitrate, you can set a target bitrate to handle bitrate limitations in your system. You may see a decline in image quality or frame rate when the instantaneous bitrate is kept below the specified target bitrate. You can choose to either prioritize image quality or frame rate.
  • Page 22 AXIS P3925-LRE Network Camera Learn more kbit/s Target bitrate Actual average bitrate You can also turn on maximum bitrate and specify a target bitrate within the average bitrate option. kbit/s Target bitrate Actual average bitrate...

  • Page 23: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 24: Technical Issues, Clues And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 25: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 26: Contact Support

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.

  • Page 27: Specifications

    AXIS P3925-LRE Network Camera Specifications Specifications Product overview Network connector: M12 or RJ45 IR illumination DC connector SD card slot Control button Status LED...

  • Page 28: Sd Card Slot

    Resetting the product to factory default settings. See Reset to factory default settings on page 23. • Connecting to an AXIS Video Hosting System service. To connect, press and hold the button for about 3 seconds until the status LED flashes green.
  • Page 29 AXIS P3925-LRE Network Camera Specifications 3, 4 N.C. The 5-pin DC connector powers up the heater.
  • Page 30 User Manual Ver. M2.2 AXIS P3925-LRE Network Camera Date: March 2021 © Axis Communications AB, 2021 Part No. T10158511...
