Bosch Rexroth VEP 15.6 Multi Touch Operating Instructions Manual page 41

Operator displays – housing devices and built-in devices
Hide thumbs
Table of Contents

Advertisement

VEP 15.6 Multi Touch, VEP 21.6 Multi
Bosch Rexroth AG
Touch
Mounting, demounting and electric installation
1
①

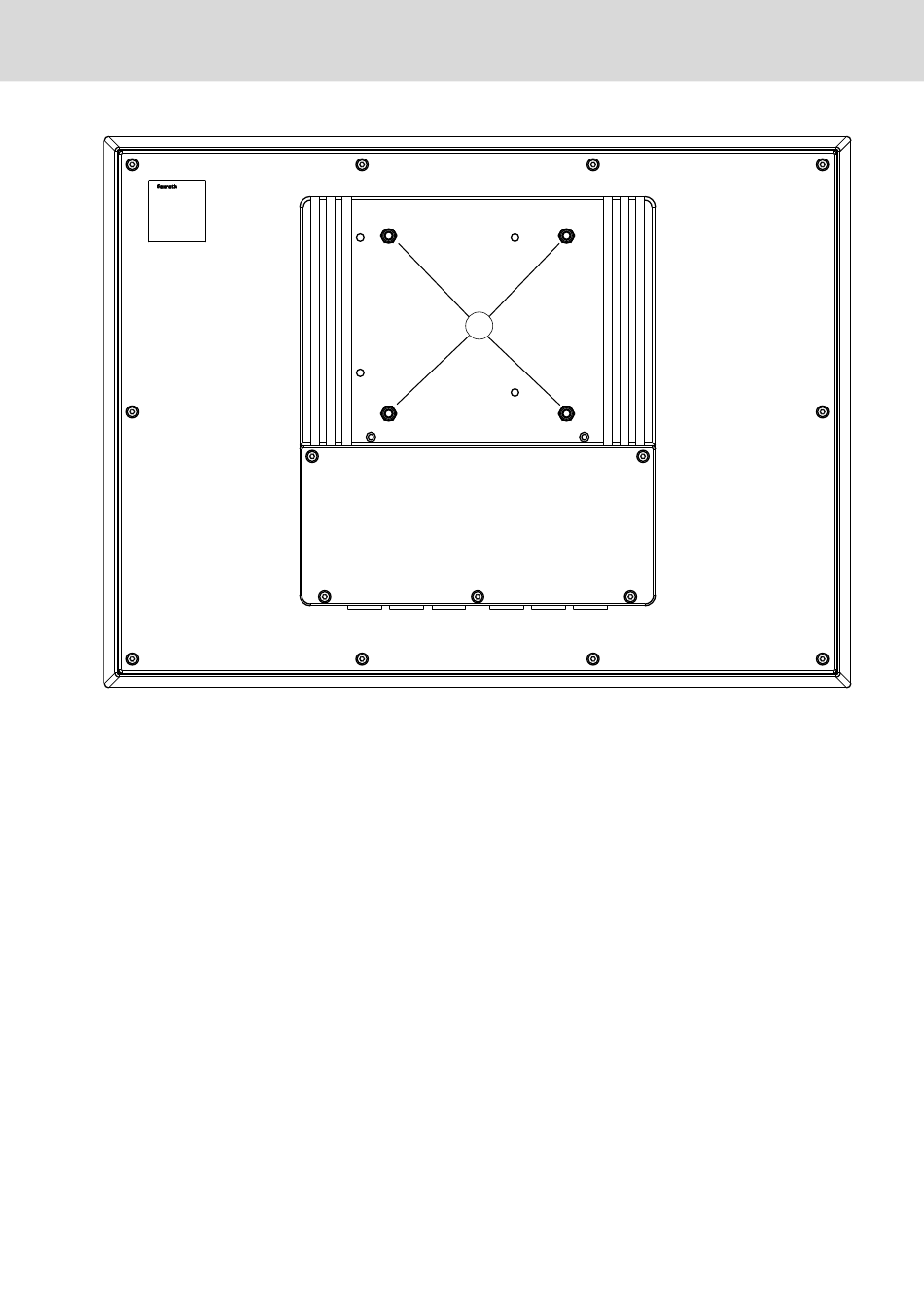

VESA fastening with four M5 threaded bolts (distance 100 mm × 100 mm)
Fig. 10-13: Position of the VESA fastening
35/53
DOK-SUPPL*-VEPXX.6MTHU-IT02-EN-P
