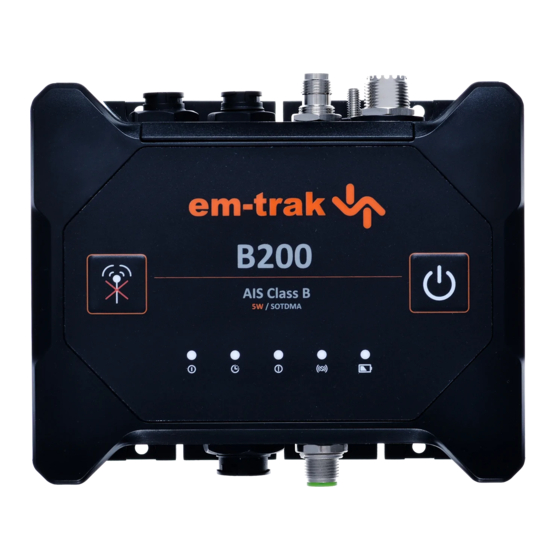

B200
Class B AIS Transceiver
QUICK-START GUIDE
For full instructions of how to install and use your B200
Class B Transceiver please refer to the user manual.
What's in the box?
Document pack
Class B AIS
transceiver
Data cable
Power cable
(NMEA 0183)
Overview
Silent mode button
USB
GPS antenna
VHF antenna
Dimensions
96 mm
169 mm
GPS
antenna
Fixings
kit
USB cable
LED indicators
On / o
NMEA 2000
Mounting holes
NMEA 0183
Power
Ground stud
Mounting holes
60 mm
201-1037:2
Mounting
Installation configuration
Installing your VHF antenna
button
Ensure your antenna is mounted as high as possible and covers 159MHz
Installing your GPS antenna
Connecting to your power supply
Chartplotter
NMEA 0183
GPS antenna
device
Switch
Power in
USB
NMEA 2000
VHF antenna
GPS antenna
VHF antenna
Chassis/
GND
Wireless connection to
tablet, laptop, smartphone.
GPS
External GPS
Antenna
DECK
Red
Power in +
Black
Power in –
12V
!
24V
