Relay Dimensions

7.36

(187.0)

5.47

(139.0)

i9089b

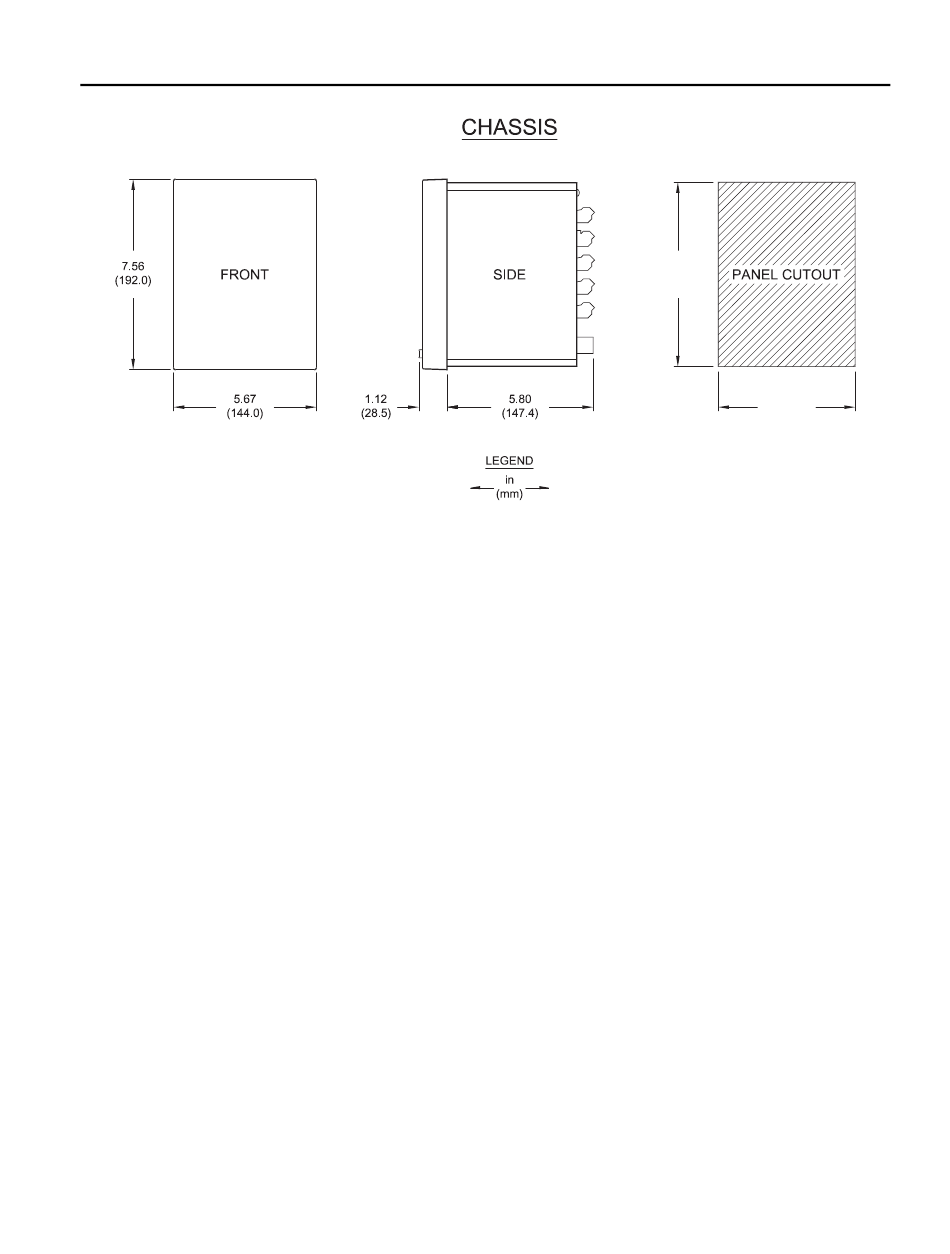

Figure 36 SEL-787 Dimensions for Rack- and Panel-Mount Models
