Cell Features; Specifications - SEPLOS PUSUNG 2 User Manual

SEPLOS PUSUNG 2 ND GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL

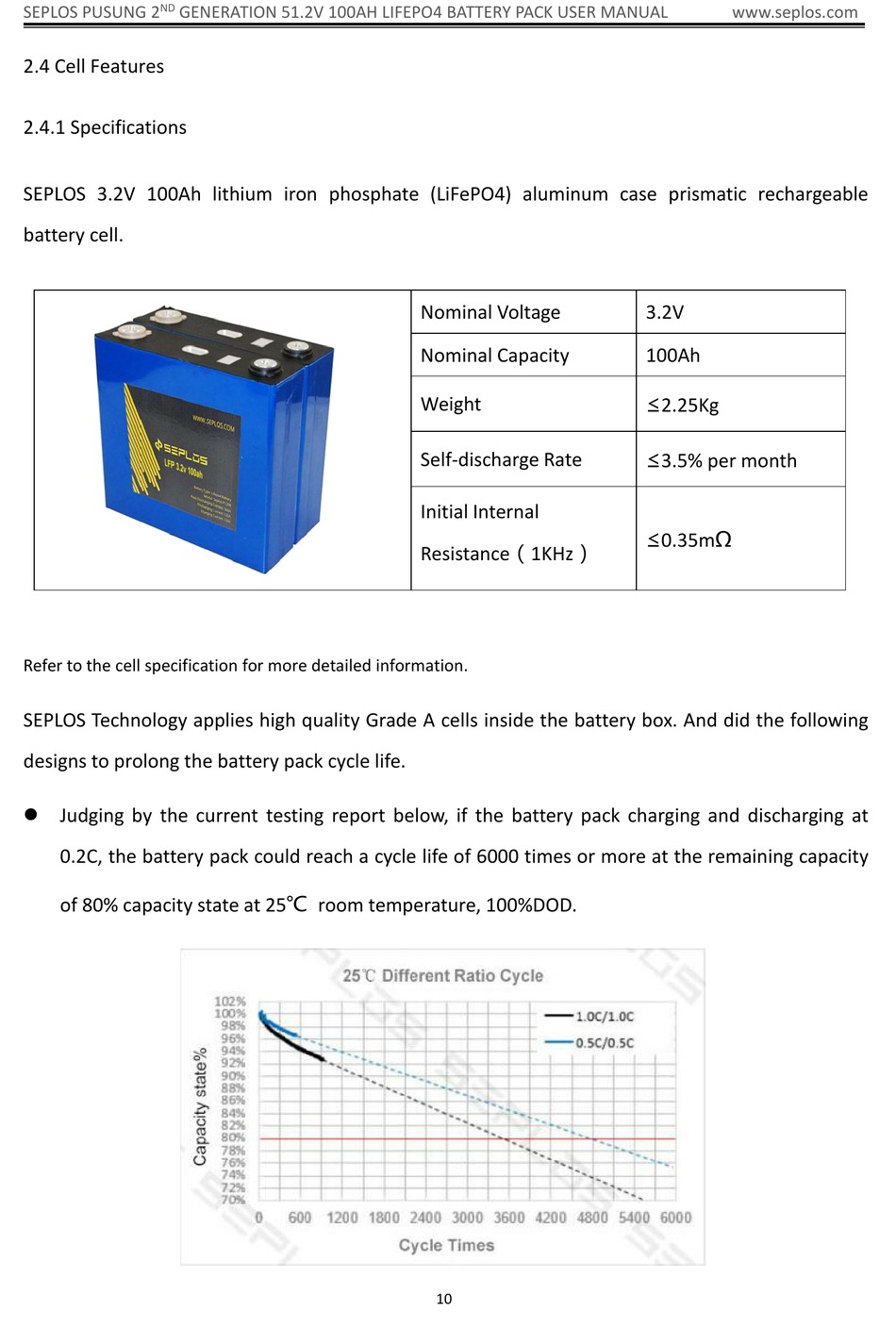

2.4 Cell Features

2.4.1 Specifications

SEPLOS 3.2V 100Ah lithium iron phosphate (LiFePO4) aluminum case prismatic rechargeable
battery cell.
Refer to the cell specification for more detailed information.
SEPLOS Technology applies high quality Grade A cells inside the battery box. And did the following
designs to prolong the battery pack cycle life.
 Judging by the current testing report below, if the battery pack charging and discharging at
0.2C, the battery pack could reach a cycle life of 6000 times or more at the remaining capacity
of 80% capacity state at 25℃ room temperature, 100%DOD.
Nominal Voltage
Nominal Capacity
Weight
Self-discharge Rate
Initial Internal
Resistance（1KHz）
10
www.seplos.com
3.2V
100Ah
≤2.25Kg
≤3.5% per month
≤0.35mΩ
