  • Page 1 Please read this manual carefully before operating and retain it for future reference. Shenzhen Seplos Technology Co,. Ltd...

  • Page 2: Table Of Contents

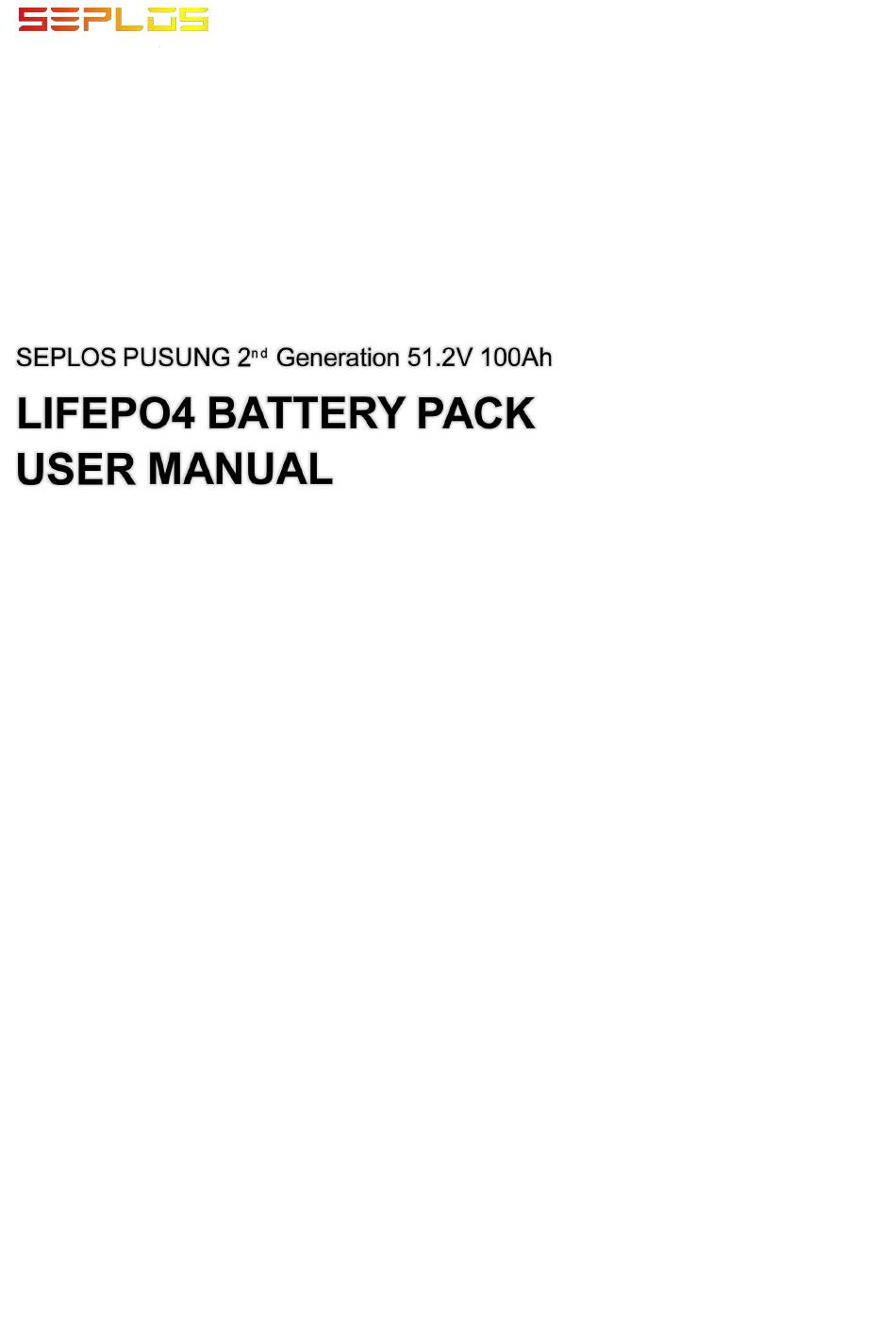

    GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com This manual introduces PUSUNG designed by SEPLOS Technology. Please read this manual before installation of the battery module and follow the instruction carefully during the assembly. Any confusion, please contact SEPLOS Technology immediately for advice and clarification.

  • Page 3: Safety Precautions

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com 1. Safety Precautions This section describes the safety information that must be observed when working with battery packs. To prevent any damages, or personal injury, and to ensure the performance of the battery packs, please read this section carefully and observe the safety precautions at all times.
  • Page 4 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com Always dispose of the battery pack according to local safety regulations.  Store and recharge the battery pack in a manner in accordance with this user manual. ...

  • Page 5: Introduction

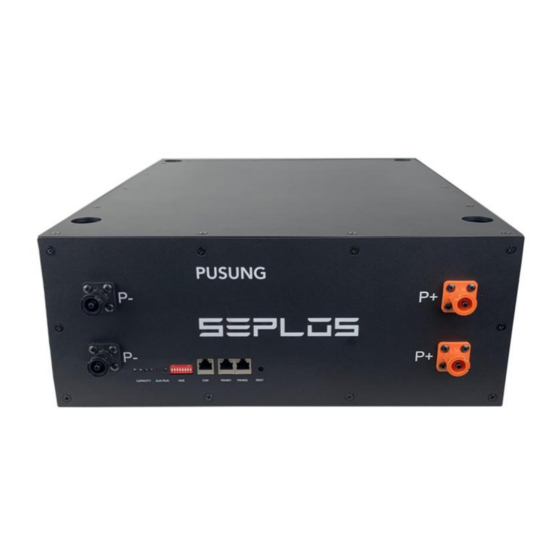

    PUSUNG lithium iron phosphate battery pack is a household renewable energy storage solution developed and produced by SEPLOS Technology. After fully installation, it is a low-voltage DC battery system with an operating voltage of 48V, and works with a low voltage inverter to realize the goal of energy storage for home application.

  • Page 6: Specifications

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com  BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions.  BMS monitors charge and discharge state, and balance current and voltage of each cell.

  • Page 7: Interfaces

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com 2.3 Interfaces RESET Reset button: to start the battery pack, hold the button for 2s to turn on battery pack. RS485 RS485 communication interface: RJ45 port, follow RS485 protocol. For transmitting battery pack information between paralleled packs.
  • Page 8 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com RS485 communication DIP address should setup as the following table. RS485 Communication Single pack address setting: #1, #2, #3, #4, #5, #6, #7, #8 all set OFF PACK...
  • Page 9 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com CAN communication DIP address should setup as the following table. CAN Communication Master Packs (#1, #2, #3, #4 set OFF) Slave Packs (#5, #6, #7, #8 set OFF)
  • Page 10 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com ALARM ALARM light: red LED flash to show the battery alarm status. And red light to show the battery in protection status of abnormal temperature, over-current, or short-circuit.
  • Page 11 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com CAPACITY SOC light: 4 green LED lights to show the capacity status of battery pack. Each LED represents 25% the capacity. Status Charge Discharge Capacity ●L4 ●L3 ●L2 ●L1...

  • Page 12: Cell Features

    Resistance（1KHz） Refer to the cell specification for more detailed information. SEPLOS Technology applies high quality Grade A cells inside the battery box. And did the following designs to prolong the battery pack cycle life.  Judging by the current testing report below, if the battery pack charging and discharging at 0.2C, the battery pack could reach a cycle life of 6000 times or more at the remaining capacity...

  • Page 13: Battery Management System

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com  The real capacity of each single cell is 105Ah. The module inside comes with 16 cells in parallel. And the default setting of BMS pack  discharge end voltage is for 15 cells in parallel.

  • Page 14: Bms Upper Computer System

    Refer to the BMS specification for the detailed information 2.5.2 BMS Upper Computer System Battery pack can be remotely monitored with SEPLOS BATTERYMONITOR software. With this software, battery voltage, cell voltage of single cell and pack, SOC status, cell temperature, voltage differences can be monitoring in real time.

  • Page 15: Installation

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com Compatible inverters list: 3. Installation 3.1 Application...

  • Page 16: Tools

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com 3.2 Tools Screwdriver Electric Screwdriver Preset Adjustable Torque Wrench Hex Wrench 3.3 Installation Process 3.3.1 Battery module assembly (cell to cell)  Put battery cell into plastic holders.
  • Page 17 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com...

  • Page 18: Battery Module Wiring (Module To Module/Bms)

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com Wiring Diagram B stands for Black wire R stands for Red wire O stands for Orange wire Y stands for Yellow wire W stands for White wire NTC stands for negative temperature coefficient thermistor 3.3.2 Battery module wiring (module to module/BMS)
  • Page 19 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com...

  • Page 20: Battery Pack Wiring (Pack To Pack)

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com 3.3.3 Battery pack wiring (Pack to pack)  Stack the battery packs onto the base. (Maximum 6 packs can be stacked.)  Connect cables between packs. Connect cable with inverter.

  • Page 21: List

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com 4. List 4.1 Packing list Item Name Description Quantity Picture Cell 3.2V 100Ah LiFePO4 battery cell 16 PCS Plastic cell holder, black 14 PCS Plastic cell holder side cover with...
  • Page 22 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com Fuse 150A, fuse 1 PCS M6*8mm, Grade 8.8 carbon steel, 32 PCS flange screw M3*8mm, carbon steel, Phillips oval 6 PCS screw M4*8mm, carbon steel, Phillips truss 18 PCS...
  • Page 23 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com Handle 98*48mm, 304 stainless steel 4 PCS Nuts M4 nuts 16 PCS Foot M16, diameter 60mm, height 100mm 4 PCS Bottom box, Q345 steel, black 1 PCS Front panel, Q345 steel, black...

  • Page 24: Optional Tools And Accessories List

    SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com Module to module 1 PCS PACK negative to BMS negative 1 PCS PACK positive to fuse 1 PCS Bus bar Fuse to BMS positive 1 PCS BMS negative to power terminal...
  • Page 25 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com Pack to pack positive power cable, red, optional 24cm Pack to pack negative power cable, optional black, 24cm Power cable Pack to inverter power cable, 150cm, optional other length cables optional...
  • Page 26 SEPLOS PUSUNG 2 GENERATION 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com This document is subject to change without notice. ©2020 SEPLOS Technology Building B,Yajiashi Industrial Park, No. 89 Huating Road, Dalang Longhua new district, Shenzhen China. 518109 TEL: (86) 13286686628 E-mail: info@seplos.com...
