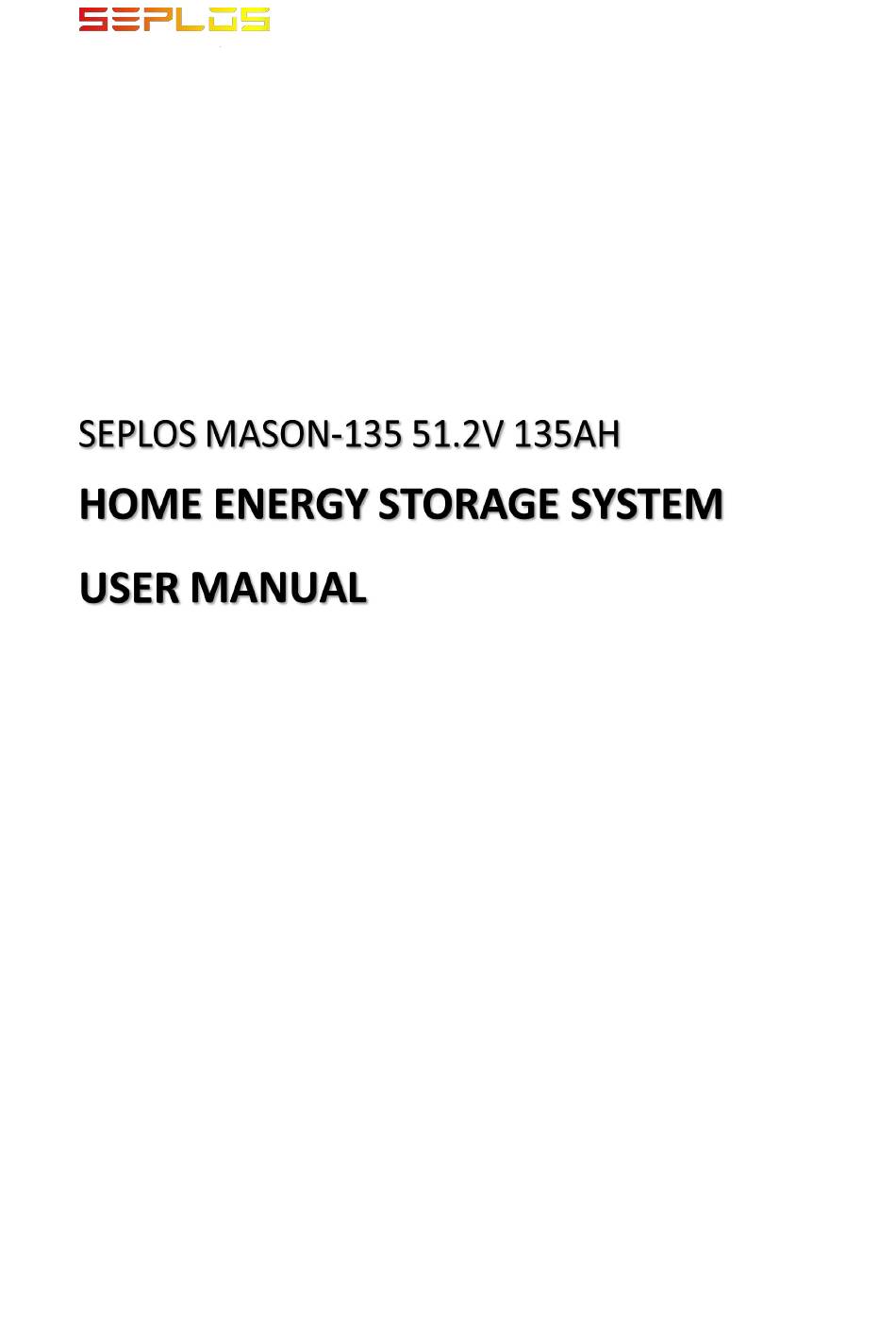

SEPLOS MASON-135 User Manual

Home energy storage system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Please read this manual carefully before operating
and retain it for future reference.
Dongguan Seplos Technology Co,. Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MASON-135 and is the answer not in the manual?

Questions and answers

Related Manuals for SEPLOS MASON-135

Summary of Contents for SEPLOS MASON-135

  • Page 1 Please read this manual carefully before operating and retain it for future reference. Dongguan Seplos Technology Co,. Ltd...

  • Page 2: Table Of Contents

    SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM CONTENT 1. Safety Precautions...................... 3 1.1 Before Connecting..................... 3 1.2.During operation....................4 2. Brief Introduction....................... 5 2.1 Features......................5 2.2 Specification...................... 6 2.3 Interface......................6 2.4 Cell Specification..................... 10 2.5 Seplos Smart BMS................... 10 2.5.1 BMS Functions..................11...

  • Page 3: Safety Precautions

    SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM 1. Safety Precautions It is very important and necessary to read the user manual carefully before installing or using the battery. Failure to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, death, or may damage the battery and the whole system.

  • Page 4: During Operation

    SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM  It is prohibited to connect the battery with different type of battery;  Please ensure the electrical parameters of battery system are compatible to inverter;  Keep the battery away from fire or water.

  • Page 5: Brief Introduction

    WWW.SEPLOS.COM 2. Brief Introduction This manual describes the functions and features of the 51.2V 135Ah MASON-135 Battery Pack that designed and produced by SEPLOS Technology. This lithium battery is a great option for grid-tie or off-grid residential solar system. All SEPLOS batteries use safest and most stable components.

  • Page 6: Specification

    SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM 2.2 Specification MASON-135 PARAMETERS Nominal Voltage 5.12V Nominal Capacity 135AH Energy Power 6.912KWh Dimension (L*W*H) 420*530*200mm Cycle life 3000 times Weight (KG) 68KG 0 - 50℃(Charging) Temperature range -20 - 55℃(Discharging) -30 - 45℃(Storage)
  • Page 7 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM LCD SCREEN LCD Screen displays and monitors the voltage, capacity, temperature, and current information of battery pack. And LCD Screen comes with four buttons. Home Page MENU Page Individual Cell Voltage...
  • Page 8 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM Capacity SOC light: 4 green LED lights to show the capacity status of battery pack. Each LED represents 25% the capacity. Status Charge Discharge Capacity ●L4 ●L3 ●L2 ●L1 ●L4 ●L3...
  • Page 9 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM Over voltage Blink type 1 protection Temperature, over current Blink type 2 protection Normal Blink type 3 According to battery SOC status Warning Blink type 3 Blink type 3 Over current,...

  • Page 10: Cell Specification

    Battery Terminals Two battery terminals for connect batteries in parallel, or connect the battery with inverters. 2.4 Cell Specification SEPLOS 3.2V 135Ah lithium Iron phosphate (LiFePO4, LFP) aluminum case prismatic rechargeable battery cell.  Brand New Grade A cells  3000+ cycle life ...

  • Page 11: Bms Functions

    SOC status, cell temperature, voltage differences can be monitoring in real time. Through history record, battery status can be checked afterwards. First, connect the battery pack to the master computer with USB-RS485 adapter with SEPLOS RS485 adapter.

  • Page 12: Compatible Inverters

    SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM If the adapter needs wiring, follow the wiring diagram. Note: Download the software installation file at Google drive with this link: https://drive.google.com/drive/folders/10pxgNLHovcDZRVGrCZsSkfecBrRw-AdW?usp=sharing 2.5.3 Compatible Inverters To make sure that the battery module works perfectly, it would be better to use the compatible...
  • Page 13 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM Pre-programmed CAN Protocol list:  Goodwe-V1.5  Pylon-V1.3  Growatt-V1.05  Victron CANBUS_PROTOCOL  LUXPOWER_CAN Protocol  Sofar_REV5  SMA_EN_10 Compatible inverters list:  Goodwe Growatt (RS485 protocol and CAN protocol, confirm the models and protocols before ...

  • Page 14: Installation

    (RS485 protocol, need to customize) 3. Installation 3.1 Battery assembly 3.2 Packing List MASON-135 designed with easy assembly for customer made their own battery pack. Please check the packing list and assemble the battery pack accordingly to the installation guidance.

  • Page 15: Application

    SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM 3.3 Application MASON-135 deep cycle battery pack is ideal and preferred for the following applications.  Solar/Wind System  Off-grid applications...

  • Page 16: Appendix

    SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM 4. Appendix 5.1 RS485 DIP address setup demonstration. Single pack: No need to set DIP address. PUSUNG Multiple PUSUNG packs in parallel: PUSUNG PUSUNG PUSUNG PUSUNG PUSUNG PUSUNG PUSUNG PUSUNG...
  • Page 17 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM 5.2 CAN BUS DIP address setup demonstration. 1 Pack 2 in Parallel 3 in Parallel 4 in Parallel in Parallel in Parallel in Parallel in Parallel...
  • Page 18 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM in Parallel in Parallel in Parallel in Parallel...
  • Page 19 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM in Parallel in Parallel in Parallel in Parallel...
  • Page 20 SEPLOS MASON-135 51.2V 135AH LIFEPO4 BATTERY PACK USER MANUAL WWW.SEPLOS.COM Scan the QR code to get connected with Seplos Technology SEPLOS ON FACEBOOK SEPLOS WHATSAPP This document is subject to change without notice. ©2021 SEPLOS Technology Room 1611, building 49, No. 3 Yunfeng Road, Queshan, Taoyuan Apartment, Dalang Street,...
