tek.com/keithley

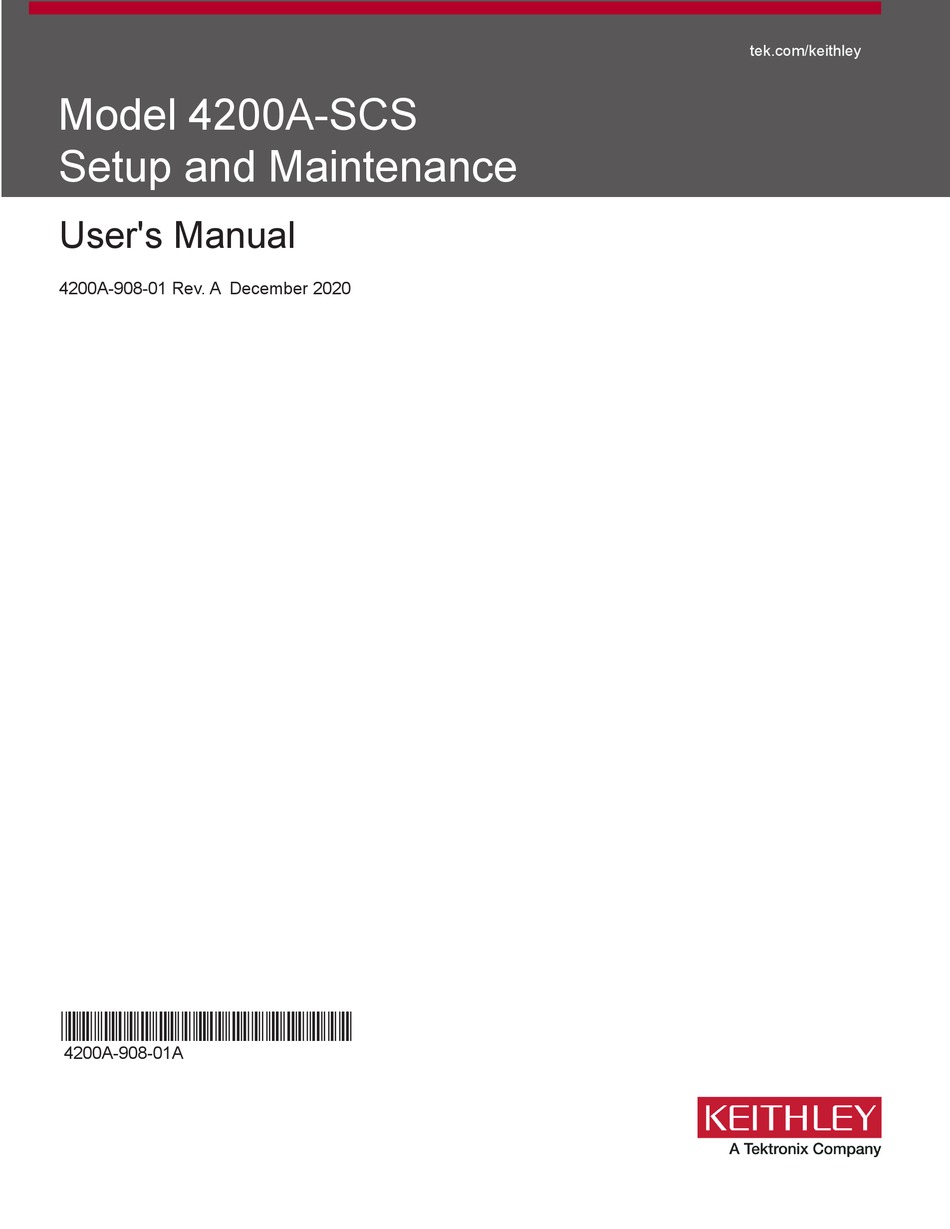

Model 4200A-SCS
Setup and Maintenance
User's Manual
4200A-908-01 Rev. A December 2020
*P4200A-908-01A*
4200A-908-01A
