Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-935-5595
http://www.tek.com/keithley
Introduction
The Model 4200-CVU-PWR C-V Power Package for both the 4200A-SCS and 4200-SCS enables C-V
measurements with a DC voltage bias of up to ±200 V or 400 V differential (0 V to ±400 V) and a current output
of up to 300 mA. Using this package, the 4210-CVU Capacitance-Voltage Unit measures the capacitance and
either one or two 4200-SMUs or 4210-SMUs are used to supply the DC bias or sweep voltage.
The next figure shows the hardware that is supplied with this package. The next table lists the hardware, part
number, and quantity.
Note that the items shipped may vary from the model pictured here.
PA-977 Rev. C / September 2016

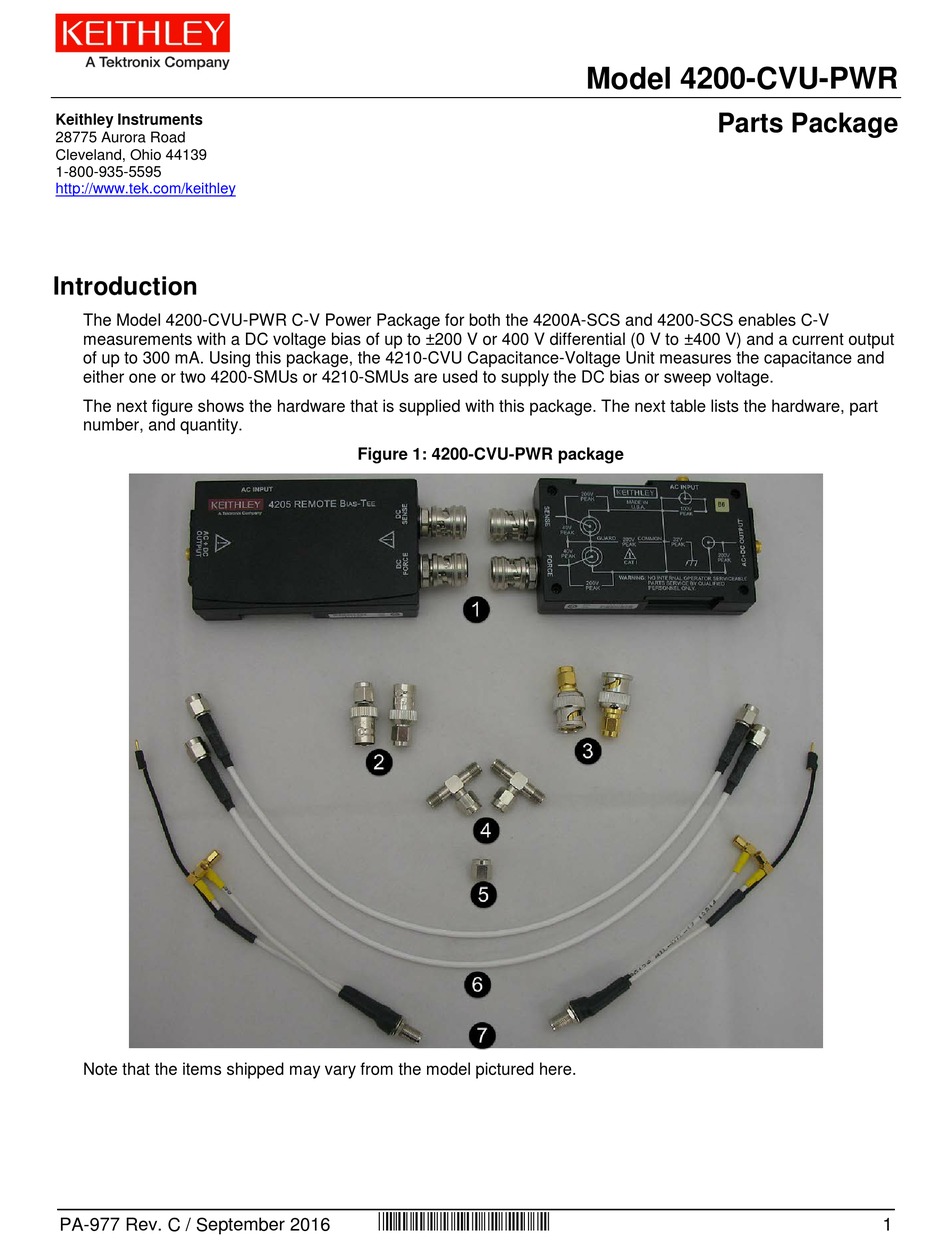

Figure 1: 4200-CVU-PWR package
*PPA-977C*
Model 4200-CVU-PWR
Parts Package
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix KEITHLEY 4200-CVU-PWR
Summary of Contents for Tektronix KEITHLEY 4200-CVU-PWR
- Page 1 Model 4200-CVU-PWR Parts Package Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 http://www.tek.com/keithley Introduction The Model 4200-CVU-PWR C-V Power Package for both the 4200A-SCS and 4200-SCS enables C-V measurements with a DC voltage bias of up to ±200 V or 400 V differential (0 V to ±400 V) and a current output of up to 300 mA.
- Page 2 Model 4200-CVU-PWR Description Part number Quantity Remote bias tee 4205-RBT SMA male to BNC female CS-1252 adapter SMA male to BNC male adapter CS-1479 SMA tee female-male-female CS-1391 50 Ω SMA male shorting cap 011019500 SMA plug to SMA plug coaxial CA-406B cable Triaxial to SSMC cable assembly...
- Page 3 Model 4200-CVU-PWR In this setup, you can connect either the CVL1 (LPOT and LCUR) or CVH1 (HPOT and HCUR) to the AC Input of the 4205-RBT. By default, the AC ammeter is connected to the CVL1. To make C-V measurements with a voltage differential up to 400 V, two 4205-RBTs and two 4200-SMUs or 4210-SMUs are required, in addition to the 4210-CVU (see next figure).
- Page 4 Model 4200-CVU-PWR If you are using a 4200-SCS, to locate the project, you can find it at the following location: C:\S4200\kiuser\Projects\_CV These projects use both the SweepV and CvsT modules to make measurements on devices. On the 4200A-SCS, you can create user modules by selecting Custom Test from the Test Library. To create a user module: 1.
- Page 5 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 6 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. Instrumentation and accessories shall not be connected to humans. Before performing any maintenance, disconnect the line cord and all test cables. To maintain protection from electric shock and fire, replacement components in mains circuits —...
