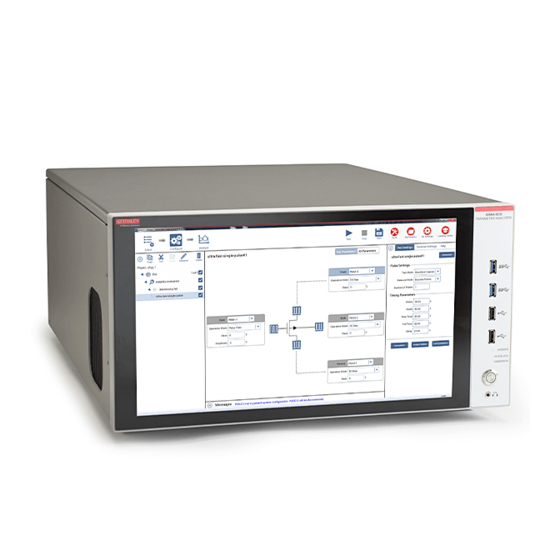

Model 4200A-SCS Parameter Analyzer
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEITHLEY 4200A-SCS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix KEITHLEY 4200A-SCS

Summary of Contents for Tektronix KEITHLEY 4200A-SCS

  • Page 1 Model 4200A-SCS Parameter Analyzer Quick Start Guide...
  • Page 2 Safety precautions overvoltages often associated with local AC mains connections. Certain Keithley measuring instruments may be connected to mains. These instruments will be marked as category II The following safety precautions should be observed before using this product and any or higher.
  • Page 3 Do not touch any object that could provide a current path to the common side of the circuit under The WARNING heading in the user documentation explains hazards that might result test or power line (earth) ground. Always make measurements with dry hands while standing on in personal injury or death.
  • Page 4 Power and environmental ratings CAUTION For indoor use only. 100 V ac to 240 V ac, 50 Hz to 60 Hz Power supply Carefully consider and configure the appropriate output‑off state, source levels, and compliance levels 1000 VA Maximum VA before connecting the instrument to a device that can deliver energy.
  • Page 5 Introduction The 4200A-SCS and embedded Clarius software provides Clarius Manual: Provides comprehensive information • clear, uncompromised measurement and analysis. The about projects, tests, data analyzation, formulator data Clarius software is furnished with embedded measurement calculation, user library descriptions, customizing Clarius. expertise and ready-to-use applications that enable you •...

  • Page 6: Unpack And Inspect The Instrument

    Unpack and inspect the instrument You should have received the 4200A-SCS Parameter Analyzer with a Quick Start Guide (this document) and: To unpack and inspect the instrument: • Keyboard 1. Inspect the box for damage. • Mouse 2. Open the top of the box. •...

  • Page 7: Connect The Instrument

    Connect the instrument • Make sure any test fixture connected to the system protects the operator from contact with hazardous voltages, hot surfaces, and sharp objects. Use Important test system safety information shields, barriers, insulation, and safety interlocks to This system contains instruments that can produce accomplish this.

  • Page 8: Install The Instrument

    Wiring the interlock NOTE If you need voltages greater than ±40 V for testing, you To keep users safe, always read and follow all safety warnings must add an interlock switch to the fixture. This ensures provided with each of the instruments in your system. that hazardous voltages are not present when the exterior enclosure of the fixture is open.
  • Page 9 There are low-voltage and high-voltage test fixtures for the WARNING 4200A-SCS. Low-voltage fixtures, such as the 8101-PIV are intended for applications that are less than ±40 V. For these The 4200A‑SCS is provided with an interlock circuit applications, an interlock is not needed. that must be positively activated for the high‑voltage output to be enabled.

  • Page 10: Test Connections

    NOTE For the examples shown in this quick start guide, you do not need to use an interlock. The 4200A-SCS functions on all current ranges and up to ±40 V without asserting the interlock. When the interlock is not asserted, the maximum voltage on the SMU and preamplifier terminals is not hazardous.
  • Page 11 Power on the 4200A‑SCS WARNING The 4200A-SCS operates from a line voltage of 100 V to The power cord supplied with the Model 4200A‑SCS 240 V at a frequency of 50 Hz to 60 Hz. Make sure the contains a seperate protective earth (safety ground) wire operating voltage in your area is compatible.
  • Page 12 NOTE To power on the 4200A-SCS: Make sure the power is off. The power switch, on the When first starting a Clarius+ application, you must answer front panel in the lower right corner, is not lit when power “Yes” to an on-screen license agreement. Answering “No” is off.
  • Page 13 Change powerline frequency To change powerline frequency: 1. Close Clarius. NOTE 2. Run KCon. 3. Select KI 4200A SCS in the Configuration Navigator. The default powerline frequency is set to 60 Hz. If the setting The left pane is the Configuration Navigator. is wrong, the 4200A-SCS cannot properly reject the 4.
  • Page 14 FAQs A configuration error has been detected and I cannot How should I clean the front‑panel display? launch Clarius. What should I do? If you need to clean the front-panel LCD touchscreen display, This occurs when the physical configuration does not use a soft dry cloth.
  • Page 15 Next steps See the 4200A-SCS Learning Center , which is • Hardware manuals for setup and maintenance, preinstalled on your system. To access the Learning Center, source-measure units (SMUs), capacitance-voltage click Help in the Clarius menu, press F1 while using Clarius, units (CVUs), pulse-measure units (PMUs), or select the desktop icon.
  • Page 16 Contact information: 1-800-833-9200 For additional contacts, see https://www.tek.com/contact-us Find more valuable resources at TEK.COM. Copyright © 2020, Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
