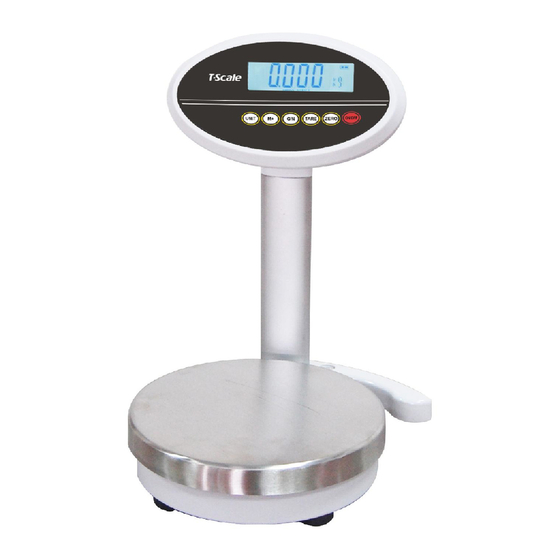

T Scale ROW Precision Balance Series Technical Manual
  1. Manuals
  2. Brands
  3. T Scale Manuals
  4. Scales
  5. ROW Precision Balance Series
  6. Technical manual

T Scale ROW Precision Balance Series Technical Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ROW
Precision Balance
V1.20-V1.10
REV:YM1,OCT 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROW Precision Balance Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for T Scale ROW Precision Balance Series

Summary of Contents for T Scale ROW Precision Balance Series

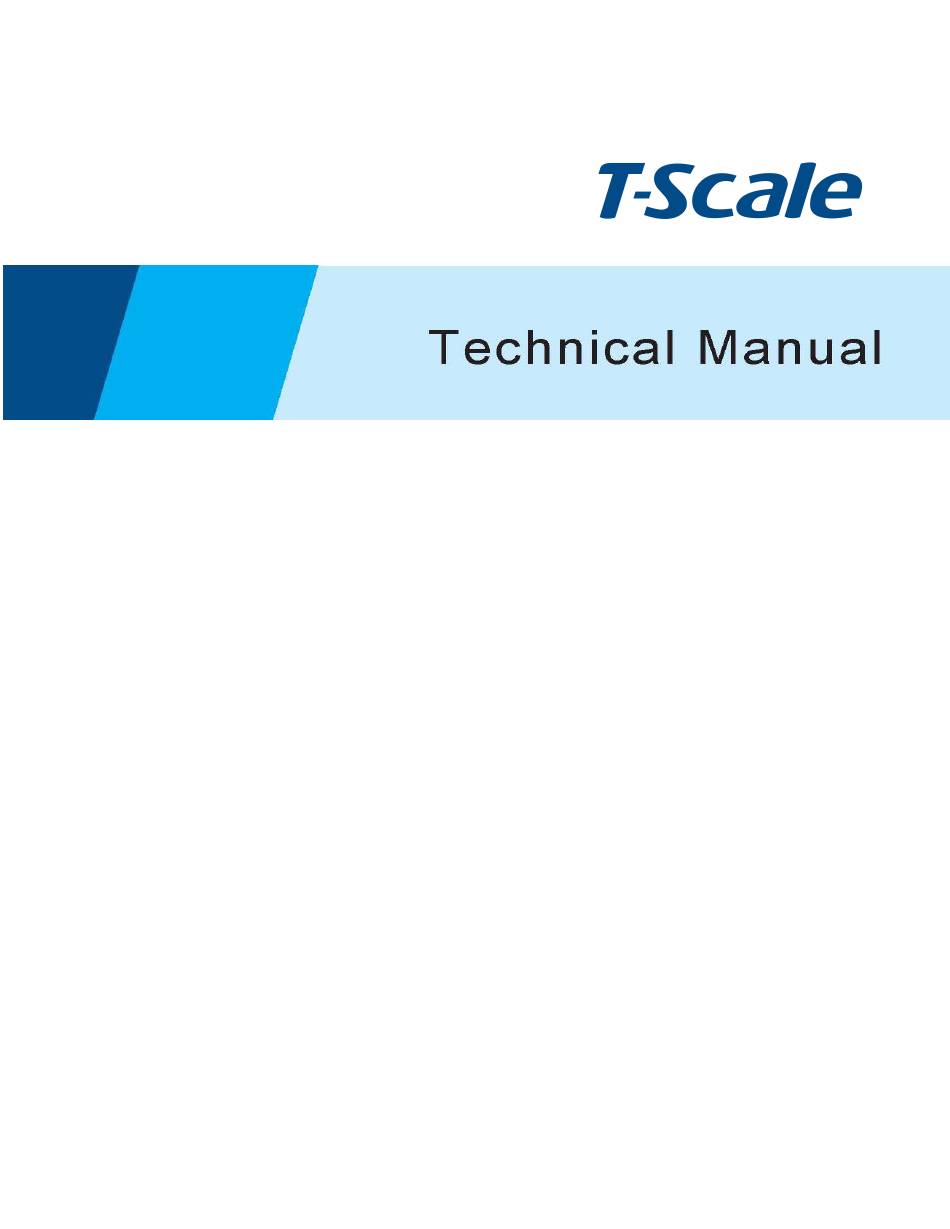

  • Page 1 Precision Balance V1.20-V1.10 REV:YM1,OCT 2016...

  • Page 2: Table Of Contents

    ROW Precision Balance Technical Manual CONTENTS SPECIFICATIONS….………………………………………………….……..4 INTRODUCTION………………………………………………………………...5 INSTALATION …………………………………………………………………..6 Unpacking…………………………………………………………………..6 Installation…………………………………………………………………..6 Load cell connections..………………………………………………...7 Connect Adaptor and Charging..………………………………………...7 DESCRIPTION……………...……………………………………………...8 Display……………………………………………………………………..8 Key board……………………………………………………………..…….9 OPERATION.…………………….………………………………….………….10 5.1. Power ON/OFF……………………………………………..………..10 5.2. Zero……………………..............10 5 . 3 . T a r e ..............1 0 5.4.

  • Page 3: Specifications

    ROW Precision Balance Technical Manual 1. SPECIFICATIONS Overall View Adjustable foot keyboard Adaptor Jack RS-232 Dimensions - 3 -...
  • Page 4 ROW Precision Balance Technical Manual Model Resolution 1/30,000; 1/70,000; 1/150,000 housing ABS Plastic indicator+ SST pan Capacity 3kg/7kg/15kg Stabilisation Time 1 Seconds typical Operating Temperature 0°C ~ +40°C / 32°F - 104°F AC Adaptor (12V/500mA) / Power supply (external) Ni-MH battery (1.2V/2000mAh x 6) Calibration Automatic External Display...

  • Page 5: Introduction

    ROW Precision Balance Technical Manual 2. INTRODUCTION  The ROW series precision balance that amplifies signals from a load cell, converts it to digital data and displays it as a mass value.  It is suitable for general weighing or more specialized applications such as check weighing, animal weighing and accumulation applications.

  • Page 6: Instalation

    ROW Precision Balance Technical Manual 3. INSTALLATION Unpacking When you receive the balance, inspect it to make sure that it is not damaged and that all are parts are included:  Remove the Indicator from the carton.  Remove the protective covering. Store the packaging and to use if you need to transport the scale later.

  • Page 7: Load Cell Connections

    ROW Precision Balance Technical Manual Connect Adaptor and Charging  To charge the battery insert the adaptor pin to jack. Adaptor simply plug into the mains power. The scale no needs to be turned on.  The battery should be charged 12 hours for full capacity. ...

  • Page 8: Description

    ROW Precision Balance Technical Manual 4. DESCRIPTION Display DISPLAY FUNCTION Check weighing ZERO Indicator for Zero display TARE Indicator for Tare display GROSS Indicator for Gross weight Indicator for Net weight STABLE Indicator for Display stability AUTO Indicator for Auto Accumulation Indicator for Accumulation ANIMAL Indicator for Animal Weighing Mode...

  • Page 9: Key Board

    ROW Precision Balance Technical Manual Key Board FUNCTION Turn the power On/ Off Used to reset to Zero. In setting mode can use to confirm entry Used to recording tare values and change the value from gross value to net value. Insetting mode can use to increase the value and scroll forward in menu.

  • Page 10: Operation

    ROW Precision Balance Technical Manual 5. OPERATION Initial Start – Up: Warm-up time of 15 minutes stabilizes the measured values after switching on. 5.1. Power ON/OFF: Switch on the balance by pressing key. The display is switched on and the test is started and if want to switched off, press again the key.

  • Page 11: Check Weighing

    ROW Precision Balance Technical Manual It can set an upper or lower limit when weighing with the limits range. During the limit controls dividing the unit will indicate whether a value upper or lower limits with an alarm sound . For details see the parameter F3 oFF. ...

  • Page 12: Accumulation

    ROW Precision Balance Technical Manual Press key to enter, press Check mode 1 Check mode 2 Check mode 3 Select desired setting by pressing and press key to confirm, press to escape. Note: The load weight must greater than 20 scale divisions for the check weighing operations.

  • Page 13: Accumulation Automatically

    ROW Precision Balance Technical Manual Accumulated Total Manually, the scale can be set to accumulation by pressing , when an optional printer is connected. See details in F4 Prt. Memory Recall When display of Zero, you can see the number of weighing and total weight by pressing , display will be shown for two seconds.

  • Page 14: Animal Weighing

    ROW Precision Balance Technical Manual  When the load few seconds get stable, the reading will be locked for few seconds and will be follow beep.  It can add or remove loads also update the weighing locked values. 5.12. Peak Hold RW can operate peak hold function, maximum reading will be hold and will update automatically when adding the goods.

  • Page 15: Parameter

    ROW Precision Balance Technical Manual 6. PARAMETERS KEYS OPERATIONS INTO THE MENU Enter the menu  In weighing mode, press key and key together. Select the menu  Press , it can change the menu block one by one.  Using increase the digit. Enter the selected menu ...

  • Page 16: Subtraction Scale

    ROW Precision Balance Technical Manual PARAMETER BLOCK Menu Sub-Menu Description Lower limit value SET Lo F0 H-L Weighing with Upper limit value. SET Hi set limits Clear the accumulation memory with out F1 toL to CLr printout Print the total accumulation memory and clear to P-C the total memory Print the total accumulation and keep all the...

  • Page 17: Keys Operation Into Menu

    ROW Precision Balance Technical Manual Commands R= Send, T= Tare, Z= Zero No documented P cnt 2 Send data of stable weighing values P stab Automatic accumulation. P auto Individual weighing values are automatically added Set BAUD rate After setting the RS 232 mode, display will be shown current baud rate b XXX.
  • Page 18 ROW Precision Balance Technical Manual PROGRAM PARAMETERS 7. 5 To select A/D speed sped To select single range operation To set decimal points. Deci Options: 0 , 0. 0 , 0. 00 , 0. 000 , Si g 0. 0000 To set increment Options: 1 , 10 ,...

  • Page 19: Parameter Block

    ROW Precision Balance Technical Manual Options: 1 , 10 , 20 , To select second division Di v 2 Options: 1 , 10 , 20 , To select first capacity Cap 1 To select second capacity Cap 2 Normal Calibration Linear Calibration This display will show XXXXX for indicating the Count...

  • Page 20: Calibration

    ROW Precision Balance Technical Manual 7. CALIBRATION Fo h-l  In weighing mode, press key and key together.  Press continuous until display will be shown. prog  Press , display will be shown.  Enter the password. Press P1 SPED Display will be shown P 2 cal ...
  • Page 21 ROW Precision Balance Technical Manual  Enter the function by pressing , display will be shown 05. 000 Currently adjustment  If want to change by using the keys select the required setting  Enter the selected setting by pressing load display will be shown.
  • Page 22 ROW Precision Balance Technical Manual  Load the first calibration mass weight on the platform (mass weight should be1/3 of the max capacity) and wait few seconds for display stability. Load 2  Then press , display will be shown ...

  • Page 23: Rs232 Out Put

    ROW Precision Balance Technical Manual 8. RS-232 OUTPUT ROW series balance can take out data through RS 232 output. Specifications: RS-232 output of weighing data Code : ASCII Data bits : 8 data bits Parity : No Parity Baud rate : 600bps to 9600bps selectable RS-232 (9pin connector) Pin ２...
  • Page 24 ROW Precision Balance Technical Manual Print Out Formats Note: Lab 0 & 2 for English and Lab 1 & 3 for Chinese Language 2016/09/16 11:11 WEIGHT: 1.00kg WEIGHT: 1.00kg 2016/09/16 11:11 WEIGHT: 1.00kg WEIGHT: 1.00kg TOTAL: 1.00kg TOTAL: 1.00kg 2016/09/16 11:11 NET: 1.00kg...
  • Page 25 ROW Precision Balance Technical Manual 2016/09/16 11:11 S/NO: S/NO: NET: 1.00kg NET: 1.00kg GROSS: 1.00kg GROSS: 1.00kg TARE: 0.00kg TARE: 0.00kg 2016/09/16 11:11 S/NO: S/NO: NET: 1.00kg NET: 1.00kg GROSS: 1.00kg GROSS: 1.00kg TARE: 0.00kg TARE: 0.00kg TOTAL: 10.00kg TOTAL: 10.00kg - 25 -...

  • Page 26: Drawing

    ROW Precision Balance Technical Manual 9. DRAWING - 26 -...
  • Page 27 ROW Precision Balance Technical Manual - 27 -...

  • Page 28: Error Codes

    ROW Precision Balance Technical Manual 10. ERROR CODES Error Message Description Solution Maximum load exceeded Unload or reduce weight ----- Incorrect date Enter the date by using format Err 1 “yy;mm:dd” Incorrect time Enter the time by using format Err 2 “hh:mm:ss”...
  • Page 29 ROW Precision Balance Technical Manual scale again. Pre-tare error Check the pre-tare value Err 18 Initialize zero error Calibration the scale. Err19 Printer error Check the printer settings or Err P connections Approval setting error Check the PCB jumper Err l settings.
  • Page 30 ROW Precision Balance Technical Manual The company was founded in Taiwan in 1967 as Taiwan Scale Mfg Co., Ltd in order to produce Mechanical Weighing Instrument. Today, this privately owned company is recognized worldwide as a leading Electronic Weighing Scale Manufacturer.
