- Page 1 IDENTIFICATION INSTALLATION ID ANT.U580/290-FCC Robust UHF Long Range Antenna 30° circular M90117-0e-ID-B...
- Page 2 Composition of the information in this document has been done to the best of our knowledge. FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
-
Page 3: Table Of Contents
IDENTIFICATION ID ANT.U580/290-FCC Contents Contents Contents Safety Instructions Performance Features of ID ANT.U580/290-FCC Installation Accessories VSWR Beamwidth Technical Data Page 3 of 11... -
Page 4: Safety Instructions
IDENTIFICATION ID ANT.U580/290-FCC 1 Safety Instructions 1 Safety Instructions Safety Instructions ► The device may only be used for the intended purpose designed by the manufacturer. ► The manual must be read thoroughly and kept safe and accessible for all users. -
Page 5: Performance Features Of Id Ant.u580/290-Fcc

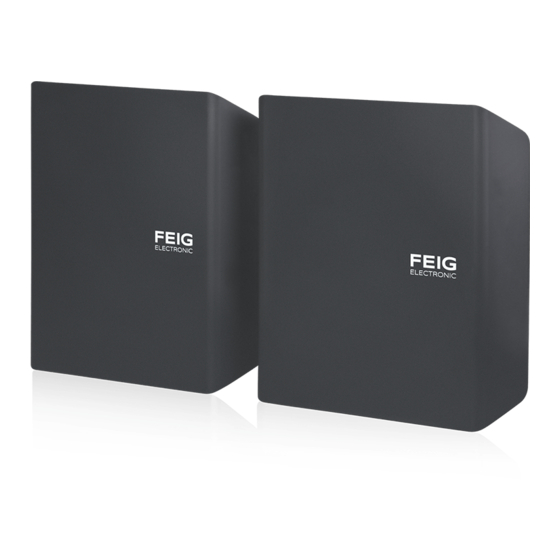

2 Performance Features of ID ANT.U580/290-FCC Performance Features The antenna ID ANT.U580/290-FCC is a circular polarized antenna and can be used at operating frequencies in the UHF range from 902 MHz – 928 MHz. Due to the circular polarization a reading of transponders is possible in random orientations. -
Page 6: Installation
3 Installation Installation The ID ANT.U580/290-FCC is designed to be mounted outdoors. Four holes for M5 screws are provided on the backside of the housing for mounting on a VESA bracket. The screws used should have a screw-in depth of maximum 12 mm (0.5"). For secondary protection the antenna can be secured by means of an eye bolt, that should be fixed with screw locking varnish, and e.g. - Page 7 IDENTIFICATION ID ANT.U580/290-FCC 3 Installation Fig. 2: Dimensional drawing - side view CAUTION: • Do not exceed the bending radius of the connection cable (15 mm static, 30 mm dynamic) to prevent damage and a decrease of the antenna performance.
-
Page 8: Accessories
IDENTIFICATION ID ANT.U580/290-FCC 4 Accessories 4 Accessories Accessories For the ID ANT.U580/290-FCC following optional accessories are available: Order Number Article Description 5241.001.00 ID ANT.C2-B UHF Antenna Cable SMA/TNC 2 m 5241.002.00 ID ANT.C6-B UHF Antenna Cable SMA/TNC 6 m 5243.001.00 ID ANT.C2-C... -
Page 9: Vswr
IDENTIFICATION ID ANT.U580/290-FCC 5 VSWR 5 VSWR VSWR The typical VSWR of the antenna ID ANT.U580/290-FCC is < 1,25:1. INSTALLATION Page 9 of 11... -
Page 10: Beamwidth
IDENTIFICATION ID ANT.U580/290-FCC 6 Antenna Pattern 6 Beamwidth Antenna Pattern The 3 dB beamwidth of the antenna is 65 ° x 30 °. Fig. 3: 3 dB beamwidth INSTALLATION Page 10 of 11... -
Page 11: Technical Data
IDENTIFICATION ID ANT.U580/290-FCC 7 Technical Data 7 Technical Data Technical Data Mechanical Data Housing Plastic (ASA-PC) Aluminum Dimension (W x H x D) 576 mm x 288 mm x 80 mm (22.7" x 11.3" x 3.1") Weight 3850 g Mounting...
