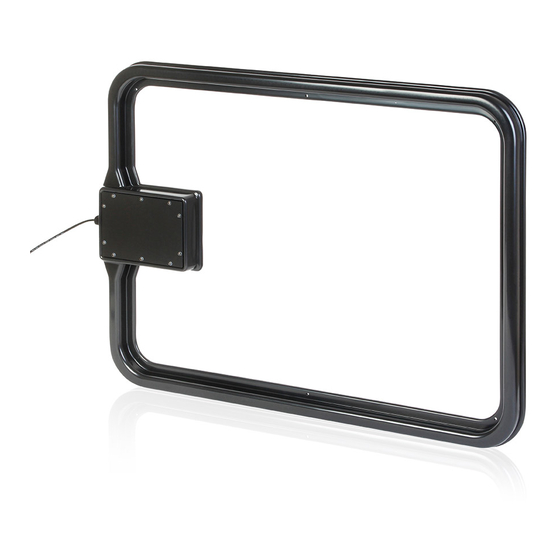

Feig Electronic ID ISC.ANT800/600 Installation And Tuning Manual

A gate antenna made from four base antennas.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

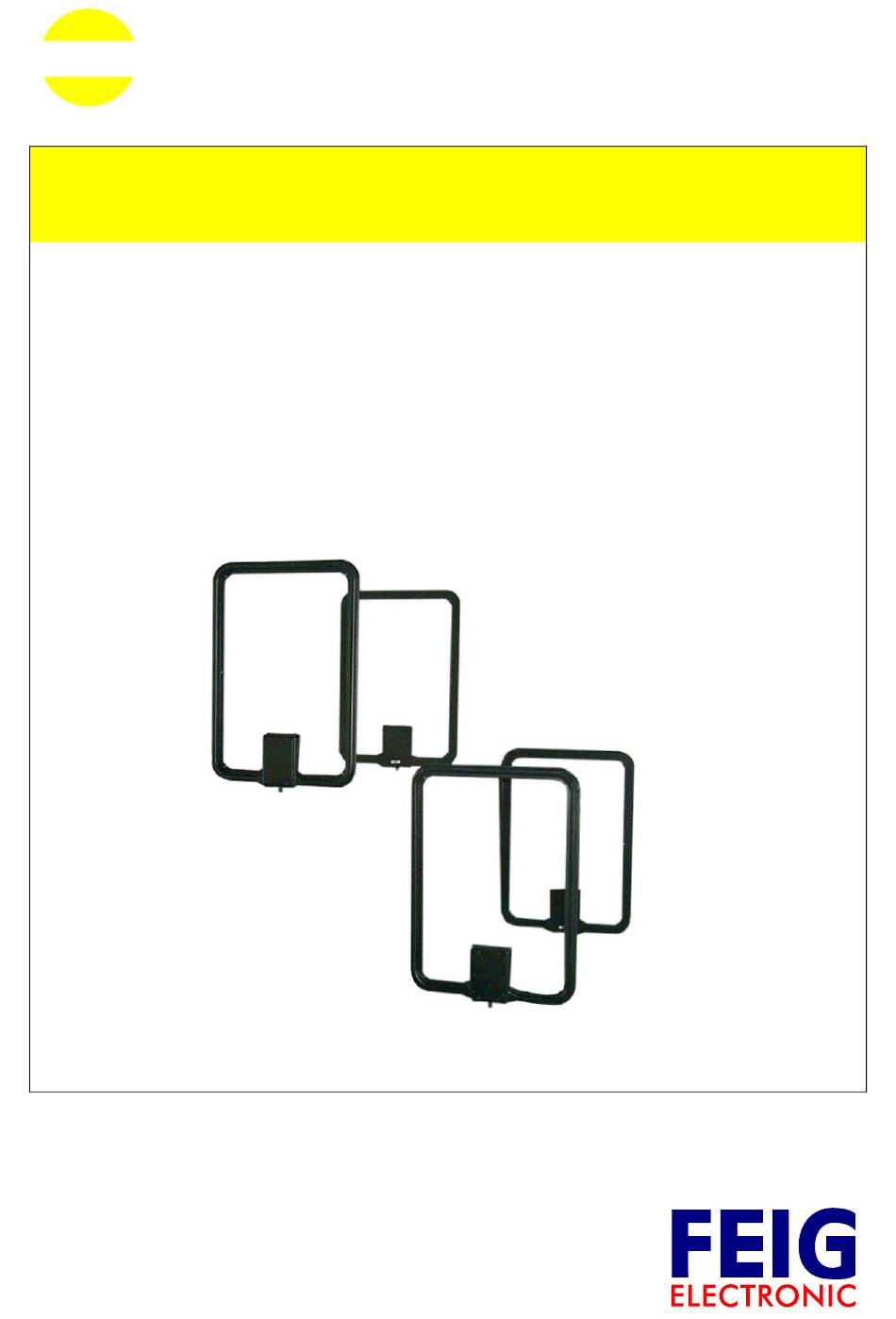

APPLICATION-NOTE
®
OBID
i-scan
ID ISC.ANT800/600
Installation and tuning of a gate antenna
made from four base antennas.
Label reads only with parallel orientation
to the loops
final
public
2002-06-04
N11000-2e-ID-B.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID ISC.ANT800/600 and is the answer not in the manual?

Questions and answers

Related Manuals for Feig Electronic ID ISC.ANT800/600

Summary of Contents for Feig Electronic ID ISC.ANT800/600

  • Page 1 APPLICATION-NOTE ® OBID i-scan ID ISC.ANT800/600 Installation and tuning of a gate antenna made from four base antennas. Label reads only with parallel orientation to the loops final public 2002-06-04 N11000-2e-ID-B.doc...
  • Page 2 ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environments. FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does not convey any license under its patent rights nor the rights of others.

  • Page 3: Table Of Contents

    ® OBID i-scan Application-Note ID ISC.ANT800/600 Contents 1. Characteristics and application of the antenna gate 1.1. Project notes........................5 1.2. Required components ......................7 1.3. Preparing the installation location / metal-free areas............8 2. Installation and wiring 2.1. Installation instructions....................10 2.2. Instructions for installing and routing the antenna connection cable ......11 3.

  • Page 4: Characteristics And Application Of The Antenna Gate

    The minimum separations can be found in section 1.3. . The gate consists of four base antennas of type ID ISC.ANT800/600-A, three Power Splitters type ID ISC.ANT.PS-A and a Reader type ID ISC.LR200-A. The Power Splitters ID ISC.ANT.PS-A are used to connect the four antennas in correct phase and power relationships.

  • Page 5: Project Notes

    ® OBID i-scan Application-Note ID ISC.ANT800/600 1.1. Project notes The antenna configuration described here allows labels to be detected as they pass horizontally through the gate. The label orientation must be parallel to the antennas. The labels are detected along a horizontal line of motion in certain areas within the antennas. The precise read area de- pends on the distance of the label from the floor.
  • Page 6 ® OBID i-scan Application-Note ID ISC.ANT800/600 • The distance from label to label should be greater than 10 cm (3.9 in). . The distance from label to label may be reduced if the gate width GD is reduced correspond- ingly. This applies especially to distances of less than 5 cm (1.9 in).

  • Page 7: Required Components

    • Qty. 5 EMC- ferrite toroids, available from: Würth Elektronik GmbH & Co.KG, diameter da=28, B.No.742 701 4. The cables on the antennas ID ISC.ANT800/600 and on the Power Splitter ID ISC.ANTPS-A are each 3.5 m (11.5 ft) long. This means the Readers should be installed near the antennas. For longer distances between Reader and base antenna, the ID ISC.ANT.EC extender can be used to...

  • Page 8: Preparing The Installation Location / Metal-Free Areas

    ® OBID i-scan Application-Note ID ISC.ANT800/600 1.3. Preparing the installation location / metal-free areas To ensure flawless operation of the gate, all larger metallic parts must be removed from the vicinity of the antennas. Figure 2 Metal-free zone, side view 2.50 m (8.2 ft)
  • Page 9 ® OBID i-scan Application-Note ID ISC.ANT800/600 If metal cannot be avoided in the vicinity of the antennas, note the following: • The minimum separation between metal and the antenna must be 10 cm (3.9 in). At 30 cm (12 in), the read distance will be significantly reduced. At more than 50 cm (20 in) there is virtually no measurable effect.

  • Page 10: Installation And Wiring

    ® OBID i-scan Application-Note ID ISC.ANT800/600 2. Installation and wiring 2.1. Installation instructions The antennas and power splitters on both sides of the gate are installed according to the diagram below. The power splitters are connected only after calibrating the antennas. Since the Reader is enclosed in a metal housing and the antennas couple into the Reader cables, the Reader should be located at a distance of at least 50 cm (20 in) from the antennas.

  • Page 11: Instructions For Installing And Routing The Antenna Connection Cable

    OBID i-scan Application-Note ID ISC.ANT800/600 2.2. Instructions for installing and routing the antenna connection cable To suppress any possible noise, an EMC toroid core with dia=28 mm should be installed in the antenna cables for the base antennas and power splitters (vendor: see appendix). Loop the coax cable at least four times tightly through the toroid.

  • Page 12: Tuning The Gate

    ® OBID i-scan Application-Note ID ISC.ANT800/600 3. Tuning the gate Before tuning, all antennas must be installed and the cables held down near the antenna. 3.1. Preparations Step Procedure Note Connect the ID ISC.LR200 See Installation Manual ID ISC.LR200 Reader to the PC through the RS232 or RS485 port Located on the OBID ®...
  • Page 13 ® OBID i-scan Application-Note ID ISC.ANT800/600 Click on Commands Select Baudrate Detec- tion[0x52] command Click on Send The program tests all possible baud rates. It stops as soon as the baud rate set on the Reader has been detected (default...

  • Page 14: Tuning The First Base Antenna

    The third and fourth antennas are tuned in the same sequence. Tuning begins with An- tenna 3. Next Antenna 4 is tuned, and then Antenna 3 again. Figure 6: Configuration for tuning the first base antenna 4 x ID ISC.ANT800/600-A Antenna 4 Antenna 2...

  • Page 15: Tuning The Base Antennas

    ® OBID i-scan Application-Note ID ISC.ANT800/600 3.2.1. Tuning the base antennas Note Step Procedure Connect the Reader to the base antenna through the SWR Reader Bridge. See also section 3.5. ID ISC.LR200 Base antenna Measuring the standing wave ratio (VSWR ID ISC .ANT800/600-A...
  • Page 16 ® OBID i-scan Application-Note ID ISC.ANT800/600 Click on Commands at the ISCStart Program Window Select the command [0x6F] Base Antenna Tunning] and click on Send to send all the settings. Now connect the Static Antenna Tuning Con- troller ID ISC.SAT.C-A...
  • Page 17 ® OBID i-scan Application-Note ID ISC.ANT800/600 If the tuning was not If the red LED flashes for 4 seconds, this indicates there is no properly concluded, this RF power at the antenna. is indicated by the red Possible causes: LED.

  • Page 18: Tuning The Second, Third And Fourth Antenna

    Since adjacent antennas will have a mutual coupling effect on each other depending on their spacing, the first base antenna should once again be retuned. Figure 7: Configuration for tuning the second base antenna Antenna 4 4 x ID ISC.ANT800/600-A Antenna 2 Antenna 3 9 cm...

  • Page 19: Fine Tuning The Two Antennas On The Gate Side

    This means Antenna 1 and 3 must be connected to terminal X1 on the Power Splitter. Antenna 2 and 4 are connected to terminal X2 on the Power Splitter. Figure 8: Configuration for fine tuning the first gate side 4 x ID ISC.ANT800/600-A Antenna 4 Antenna 2...
  • Page 20 ® OBID i-scan Application-Note ID ISC.ANT800/600 Note Step Procedure Connect the ID ISC.LR200 Reader Figure 8: to the first (or second) gate side. Turn the leftmost of the two trim capacitors C2 on Antenna 1 (3) approx. ¼ - ½ turn counter- clockwise.
  • Page 21 ® OBID i-scan Application-Note ID ISC.ANT800/600 Turn the right trim capacitor C2 on antenna 1 (3) and Antenna 2 (4) alternately slowly counter- clockwise. The SWR must drop! Otherwise turn the trim capacitor slowly clockwise. Continue tuning until the SWR reading no longer drops.
  • Page 22 ® OBID i-scan Application-Note ID ISC.ANT800/600 Figure 9: Configuration for fine tuning the entire gate 4 x ID ISC.ANT800/600-A Antenna 4 Antenna 2 Antenna 3 3 Power Splitters Antenna 1 SWR - Meter ID ISC.LR200-A 25 cm (10 in) Floor 20 cm 3.6 m...

  • Page 23: Measuring The Standing Wave Ratio (Vswr)

    OBID i-scan Application-Note ID ISC.ANT800/600 3.5. Measuring the standing wave ratio (VSWR) Once an antenna has been calibrated or the local conditions have changed, the question arises: How well are the Reader and base antenna adjusted to each other? A useful tool for evaluating the adjustment of the antenna to the 50 Ω...

  • Page 24: Startup And Testing Of The Gate

    OBID i-scan Application-Note ID ISC.ANT800/600 4. Startup and testing of the gate After installing and calibrating the antennas, the correct function of the gate can be checked using the Reader, the ISCStart service software (V4.00 or higher), a PC running under MS Windows, and ®...

  • Page 25: Checking The Noise Level

    ® OBID i-scan Application-Note ID ISC.ANT800/600 Clock on “Start“ button The serial number and tag type are displayed in the window 4.2. Checking the Noise Level Step Action: Remarks: Select: “Test and Measurements“ menu Select “Noise Levels“ function Click on “Start“...

  • Page 26: Setting The Operating Parameters

    ® OBID i-scan Application-Note ID ISC.ANT800/600 4.3. Setting the operating parameters Step Action Remarks Select Configuration menu Configuration CFG3 RF-Interface: Select 4 W RF power Activate necessary transponder drivers. Deactivate unused transponder drivers. Set FSK-transponder, FSK-RX-CHN to “0x02 both antennas“...

  • Page 27: Testing The Performance

    ® OBID i-scan Application-Note ID ISC.ANT800/600 4.4.Testing the performance For this performance test we will be assuming the conditions described in the section: “Projecting Notes“. The indicated ranges and read areas will change correspondingly when different labels are used. The test begins by checking the read range outside the gate (see illustration, points assuming the configuration and local conditions permit.

  • Page 28: Switching The Reader To Buffered Read Mode

    ® OBID i-scan Application-Note ID ISC.ANT800/600 The following problems may arise: • Antenna incorrectly installed (orientation, distance between antennas, check cable placement) • Metal in the vicinity that detunes or disturbs the antennas • One of the base antennas is improperly tuned (SWR ≥ 1.3) •...

  • Page 29: Regulatory Agencies In Eu Countries And The Usa

    OBID i-scan Application-Note ID ISC.ANT800/600 4.6. Regulatory agencies in EU countries and the USA The design and RF power of the antennas is affected mainly by the country-specific RF regula- tions. The entire EU geographic area is covered under uniform limits specified in the R&TTE guideline and EN 300 330.

  • Page 30: Shielding Around The Antennas

    OBID i-scan Application-Note ID ISC.ANT800/600 4.7. Shielding around the antennas To reduce the magnetic radiation of the gate antenna, a shield should be provided around the gate. Each gate side should be shielded on four sides (back, right, left, up) at a distance of 50 cm to the outer edge of the antennas.

  • Page 31: Appendix: Helpful Tools For Constructing And Testing The Antennas

    Laptop or personal computer (PC) running under Microsoft Windows 95, 98, ME, 2000, XP. Service software ISCStart (V4.02 or higher). This software can be found on the OBID ® i-scan • CD-ROM supplied by FEIG ELECTRONIC GmbH.. • SWR and Power Meter including SMA connectors (female) or appropriate adapters.

  • Page 32: Recommended Equipment And Possible Sources

    ® OBID i-scan Application-Note ID ISC.ANT800/600 5.1. Recommended equipment and possible sources: 1. VSWR – Meter Alan CTE International VSWR & Power – Meter KW 220 Vendors: • CB Funkshop Rößner, 91637 Wörnitz, Tel.09868/932945, http://www.cb-funkshop.de • Garant – Funk, 53879 Euskirchen, Tel. 02251/55757...
  • Page 33 ® OBID i-scan Application-Note ID ISC.ANT800/600 Oscilloscope Tektronix TDS 210 or a model from the TDS2xx or TDS3xx. series Agilent 54622D or a model from the 546xx series Voltcraft 100 MHz- Oscilloskope 6100 Hameg HM 407 or HM 1507-3 Vendors: •...
