® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Contents Safety Instructions / Warning - Read before Start-Up ! Performance Features of the ID ISC.ANT1400/760 Antennas Available Antenna Types ....................7 Installation and Wiring Mounting preparation....................9 Installing the Antenna Base ..................11 3.3.1 Drilling the Mounting Holes ...................11 3.3.2 Installing the Antenna Base and Antenna Body ............13... - Page 4 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.4.1 Checking the Noise Level....................34 4.4.2 Reading a Serial Number ....................35 4.4.3 Testing the performance ....................35 Connecting and Setting the Alarm Kit (optional) .............37 4.5.1 Installing the Alarm Indicators ..................37 4.5.2 Connecting the Indicators....................39 4.5.3 Reader Setting for Indicators..................40...
-
Page 5: Safety Instructions / Warning - Read Before Start-Up
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Safety Instructions / Warning - Read before Start-Up ! • The device may only be used for the intended purpose designed by for the manufacturer. • The operation manual should be conveniently kept available at all times for each user. -
Page 6: Performance Features Of The Id Isc.ant1400/760 Antennas

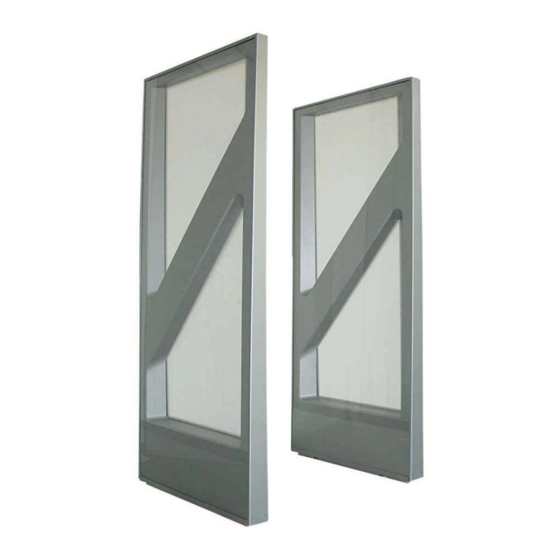

® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Performance Features of the ID ISC.ANT1400/760 Antennas The ID ISC.ANT1400/760 Type A antenna is the version with Reader and Power-Splitter. The ID ISC.ANT1400/760 Type C includes the Reader and Multiplexer. The Reader and Power-Splitter or Multiplexer are mounted inside the antenna base. -
Page 7: Installation And Wiring
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Installation and Wiring Dimensions of antenna The outside dimensions of the antenna are shown in Fig. 1 Fig. 1: Antenna outside dimensions All dimensions are in mm with general tolerance to ISO 2768 m (mean). -
Page 8: Mounting Preparation
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 3.2 Mounting preparation For assembly the antenna must be carefully unpacked and disassembled into its main components. This is done as described in the following steps: 1. Place the packed antenna on the floor with the top side facing up. Carefully open the box and remove the side cover plates. - Page 9 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Upper frame section (optional with LED-Strip) Antenna body with antenna conductor Side panels Antenna base (hole template) Fig. 4: Antenna construction with frame side panels without cover plates Additionally, at antenna Type A and Type C, some ring cores are added to mount on the cabling (See manual reader).
-
Page 10: Installing The Antenna Base
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 3.3 Installing the Antenna Base Notes: Before installing the antennas please read 4.1 Project Notes . The spacing of the antennas comprising a gate depends on the antenna configuration. If multiple antennas or gates are connected to different Readers, a minimum separation of 8 m must be kept between the antennas or gates. - Page 11 OBID i-scan Installation ID ISC.ANT1400/760-A/B/C The size and type of the screw anchors depends considerably on the strength of the base or floor. The anchors should be capable of withstanding a permissible load of at least 5 kN per anchor for all load directions (e.g.
-
Page 12: Installing The Antenna Base And Antenna Body
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 3.3.2 Installing the Antenna Base and Antenna Body The antenna foot is screwed on the floor. Use the adjusting screws (Fig. 7) to align the antenna foot vertically. Adjusting screws (hexagon socket width A/F5) Fig. -
Page 13: Connecting The Components
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 3.3.3 Connecting the Components The antenna is for the most part pre-wired. Only the antenna cables for the Type B or BL antennas need to be routed to the main antenna (Type A or C). At 4.2.2.a typical configuration for Type A and B antennas is shows (4.3.2 for Type C and B antennas). -
Page 14: Installing The Cover Plates
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 3.4 Installing the Cover Plates Note: We recommend installing the cover plates only after a function test of the complete antenna configuration. Fig. 12 shows the cover plates as well as the frame side sections . - Page 15 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Proceed according to the following steps to install the cover plates and side panels 1. Fit cover plates into antenna foot and upper frame section as shown in Fig. 13. Cover plates with the painted, non-transparent area go on the open side of the antenna body. This covers the antenna conductor and electronics.
- Page 16 OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 2. Join the sides of the side panels with the antenna body and slide down (Fig. 15). To do it, the side panels are placed at an angle (Fig. 14). First insert the mounting slot on to the mounting and slide down approx.
- Page 17 OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 3. Attach the side panels using the mounting screws. The screws are placed in a plastic bag in the antenna base. First fit the upper screws and then fit the lower screws. The locations of these fasteners are shown in Fig.
-
Page 18: Typical Antenna Configuration (Gate Antenna With Two Antennas)
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Typical Antenna Configuration (Gate Antenna with two Antennas) The standard configuration of a gate with three-dimensional tag orientation consists of an ID ISC.ANT1400/760 Type A or C antenna and an ID ISC.ANT1400/760 Type B or BL antenna. - Page 19 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C To achieve three-dimensional capture of the tag in the capture area drawn above, the following conditions must be met: The gate distance GD depends on the antenna configuration (see Table 1). The tags should be at least ISO card size (46 mm x 75 mm).
-
Page 20: Configuration And Setup Using Antennas Type -A And -B
Microsoft Windows . The service software is included on ® the OBID i-scan CD obtained from FEIG ELECTRONIC GmbH or can be downloaded on the Download Area of the Homepage www.feig.de. FEIG ELECTRONIC GmbH Page 21 of 50 M50700-4e-ID-B.doc... -
Page 21: Configuration Of A Gate Antenna
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.2.2 Configuration of a Gate Antenna The connection of the components is shown in Fig. 18. We recommend supplying the Reader and Power Splitter using two separate power supplies. 2 Tuning-Boards of Antenna ID ISC.ANT1400/760 Long Range Reader ID ISC.LR2000... -
Page 22: Setting The Power Splitter
X2: Antenna X3: Antenna X4: 12-24V DC for Antenna with dyn. antenna tuner ID ISC.DAT 4.2.4 Setting the Antenna Tuner The ID ISC.ANT1400/760-A antennas are factory set as follows: Table 3: Jumper settings for Antenna Tuner Function Jumper Position open 1Ω... -
Page 23: Reader Configuration
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.2.5 Reader Configuration To tune the antennas, open the ISOStart software and first read out the current configuration of the Reader: Step Action Note Start ISOStart Software Run „Detect“..follow „New-File Assistant“..and read out the current... - Page 24 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Step Action Note CFG1: Interface and Mode To tune, activate “ISO-Host Mode” Set by clicking on “Write” FEIG ELECTRONIC GmbH Page 25 of 50 M50700-4e-ID-B.doc...
-
Page 25: Tuning The Gate Antenna
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.2.6 Tuning the Gate Antenna Before tuning the Gate Antenna you must quit the ISOStart software. Then the gate may be tuned according to the following sequence: Step Action Note Start “DATuningTool” Software Click on “Detect Reader...”... -
Page 26: Configuration And Setup Using Antennas Type -C And -B
Microsoft Windows . The service software is included on ® the OBID i-scan CD obtained from FEIG ELECTRONIC GmbH or can be downloaded at the Download Area of the Homepage www.feig.de. FEIG ELECTRONIC GmbH Page 27 of 50 M50700-4e-ID-B.doc... -
Page 27: Configuration Of The Gate Antenna, Antenna Type -C And -B
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.3.2 Configuration of the Gate Antenna, Antenna Type -C and -B Connect the components as shown in Fig. 20. 2 Tuning- Boards of Antenna ID ISC.ANT1400/760 Long Range Reader ID ISC.LR2000 X9, Pin1+3 3,60m... -
Page 28: Setting The Multiplexer
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.3.3 Setting the Multiplexer Set the jumpers JP1-JP8, JP11-JP18 and DIP switch S1 on the Multiplexer as shown. More on setting the ID ISC.ANT.MUX Multiplexer can be found in the corresponding installation manual (M30201-xde-ID-B). -
Page 29: Setting The Antenna Tuner
Jumper Position In addition, close jumpers JP11 to JP18. 4.3.4 Setting the Antenna Tuner ID ISC.ANT1400/760-A antennas must be set as follows (JP3 is factory set to closed and must be opened): Table 6: Jumper settings for Antenna Tuner Function... -
Page 30: Reader Configuration
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.3.5 Reader Configuration To tune the antennas, open the ISOStart software and first read out the current configuration of the Reader: Step Action Note Start ISOStart Software Run „Detect“..follow „New-File Assistant“..and read out the current... - Page 31 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C Step Action Note CFG1: Interface and Mode To tune, activate “ISO-Host Mode” Set by clicking on “Write” CFG15: Antenna Multiplexing Ι Activate „Multiplexing“ Configure the parameters as follows: • „Switching Condition“ – after no response •...
-
Page 32: Tuning The Gate Antenna
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.3.6 Tuning the Gate Antenna Before tuning the gate antenna, you must quit the ISOStart software. Then the gate can be tuned as follows: Step Action Note Start “DATuningTool” software Select “Detect Reader...”. In the „Detect Reader“ window select the interface (COM-Port 1, BusAdr. -
Page 33: Testing The Gate Antenna
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.4 Testing the Gate Antenna After tuning the gate antenna, you can check for proper function using the Reader, the ISOStart service software and a Smart Tag. Here the Noise Level and performance of the gate are tested. -
Page 34: Reading A Serial Number
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.4.2 Reading a Serial Number Step Action Note Attach a tag to an antenna Use adhesive tape, for example Select „Test and Measurement“ Select „ISO Inventory“ function and activate by clicking on „Start“. The serial number and tag type will be shown in the display. - Page 35 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C The test begins by checking the read range outside the gate (see Fig. points ), assuming the configuration and locality permit it. Start the ISO Inventory command in the ISOStart program as described in 4.4.2 Reading a Serial...
-
Page 36: Connecting And Setting The Alarm Kit (Optional)
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.5 Connecting and Setting the Alarm Kit (optional) The solution provided here presumes that all alarm indicators (LED strip and buzzer) are wired in parallel and switched through the relay X11 on the ID ISC.LRM2000 Reader. The pulse duration can be set (CFG2 / REL1) between 100 ms and 6553.5 s by adjusting the Reader configuration. - Page 37 OBID i-scan Installation ID ISC.ANT1400/760-A/B/C If the signal Light bar or Light bar with LED strip needs to be replaced or retrofitted into the Type B antenna, place the frame upper section together with the LED strip and cover on the antenna body and gently tighten the mounting screws as per See: 4.5 Connecting and Setting the Alarm Kit...
-
Page 38: Connecting The Indicators
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.5.2 Connecting the Indicators Signal LED Signal LED 2 (Option BL) Buzzer Reader X9, Pin1+3 +24VDC DC Power supply24V The indicators are connected as shown in Fig. 28: Fig. 28: Wiring the indicators Notes: All cables must be routed as far from the antenna conductor as possible. -
Page 39: Reader Setting For Indicators
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.5.3 Reader Setting for Indicators The ISOStart software can be used to set the Reader so that relay X11 opens or closes when a Transponder is read. Step Action Note Start ISOStart Software Select “Configuration” and click on “Read”... - Page 40 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C ISO 15693 Mode Enter desired value in „AFI“ field. Set by clicking on “Write” FEIG ELECTRONIC GmbH Page 41 of 50 M50700-4e-ID-B.doc...
-
Page 41: Programming A Transponder With The Afi Byte
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.5.4 Programming a Transponder with the AFI Byte If the transponders will remain on the object when leaving the storage location, they must first be cancelled. This is generally done by writing to a particular area of the transponder. - Page 42 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C To verify, read AFI byte by selecting [0x2B] Get System Information FEIG ELECTRONIC GmbH Page 43 of 50 M50700-4e-ID-B.doc...
-
Page 43: Activating Buffered Read Mode
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.6 Activating Buffered Read Mode „Buffered Read Mode“ is the normal operating mode of the Reader. Here the tags are read at maximum speed and the information is stored in the Reader’s ring buffer. This data sets can be read by the host. -
Page 44: Configuring The Reader In Accordance With National Rf Regulations
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 4.7 Configuring the Reader in accordance with national RF regulations Configuration of the RFID Readers and the maximum transmitting power of the antennas are affected mainly by the country-specific RF regulations. For the entire EU the limits are set forth in the R&TTE Directive and EN 300 330. - Page 45 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C When placing the antennas in service, the systems integrator must ensure that the prescribed mounting instructions are followed, the necessary Reader settings are made and permissible limits according to the national regulations are not exceeded.
-
Page 46: Technical Data
760 x 1700 x 90 mm ± 5 mm Dimensions ( W x H x D ) • Weight approx. 27 kg with/ 32,5 kg without packing – ID ISC.ANT1400/760-A / -C approx. 26 kg with/ 31,5 kg without packing – ID ISC.ANT1400/760-B •... - Page 47 ® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C • Permissible overall transmitting power per antenna gate 10.0 W***** – EU-territory (per EN 300 330) and other CEPT nations 8.0 W – USA (per. FCC Part 15) • Outputs 24 V / 30 mA –...
- Page 48 EN 50364 * Persistent deformation after load release approx. 0.5 cm. ** Qty. 2 ID ISC.ANT1400/760-A antennas, antenna spacing (antenna center), same flow direction, Tag 46 mm x 75 mm ISO15693, sensitivity / minimum field strength H =80 mA/m rms, transmitting power 8 W, tag orientation parallel to antenna for horizontal movement through the antenna.
-
Page 49: Approval
Equipment Classification according to ETSI EN 300 330 and ETSI EN 301 489: Class 2 The technical data for the ID ISC.LRM2000 Reader built into the ID ISC.ANT1400/760-A an- tenna can be found in the Installation Manual which is included with the device. -
Page 50: Usa (Ul)
® OBID i-scan Installation ID ISC.ANT1400/760-A/B/C 5.2.3 USA (UL) The following picture indicates the label position: FEIG ELECTRONIC GmbH Page 51 of 50 M50700-4e-ID-B.doc...
