Apevia X-Cruiser Installation Manual page 2

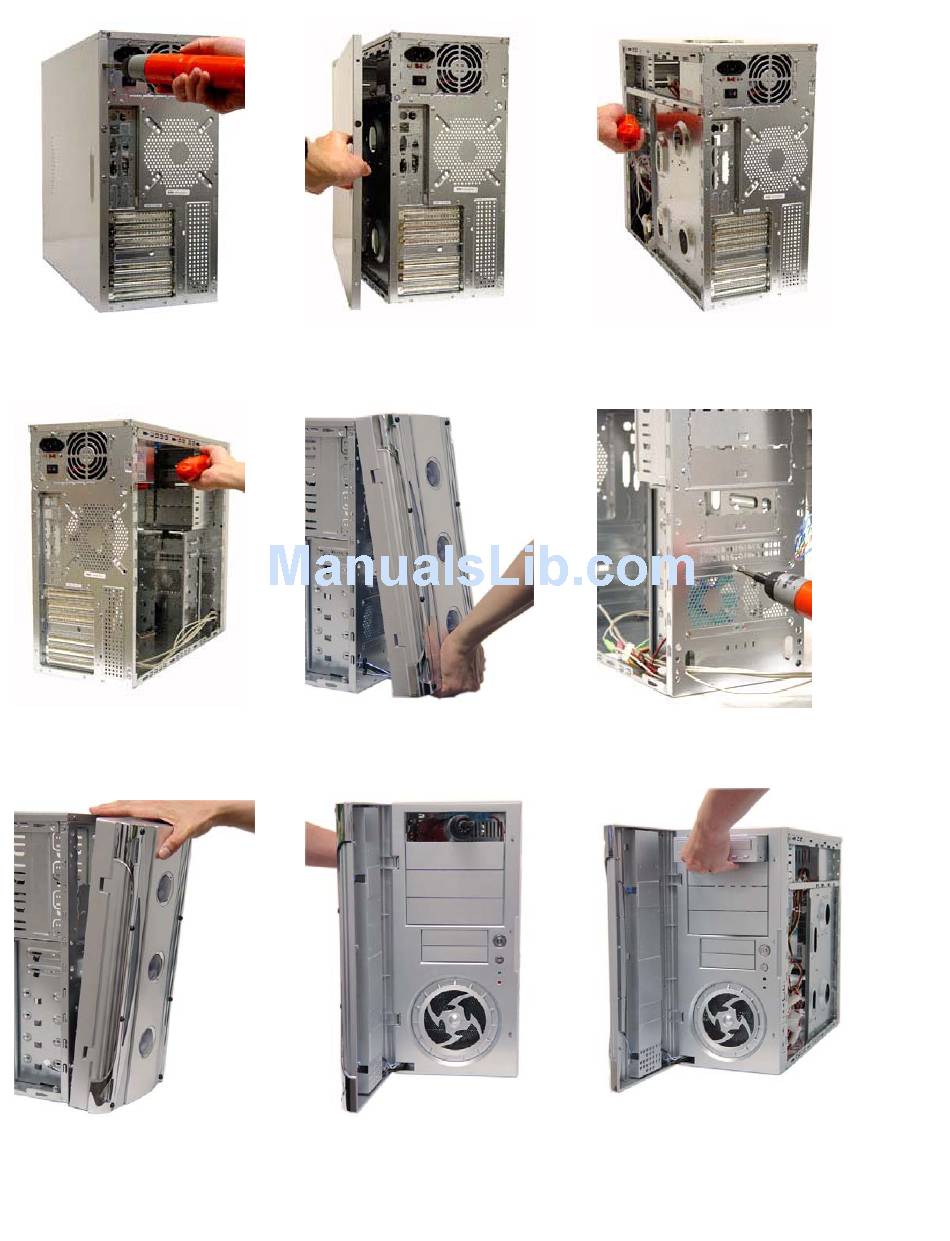

9.Take out front panel: (Optional. Only if you need to install front fans or replace LCD)
Step (1): Unscrew the side panel
panel (motherboard side)
Step (4): Unscrew the other
2 screws from the other side.
11.Put the front panel back
and screw to secure.
Step (2): Take out the side
panel (motherboard side)
Step (5): Pull out the front
panel from the bottom.
12.5.25" Drives: Open the door
and force out the 5.25" metal
plate and drive cover from inside
with a screw driver.
Step (3): There are 4 screws that
hold the front panel to the case. (2
on each side) Unscrew the 2 screws
from inside of the case.
10.Front Case Fans (Optional):
You can put up to 2*80mm fans
in the front.
13.Insert 5.25" drivers.
