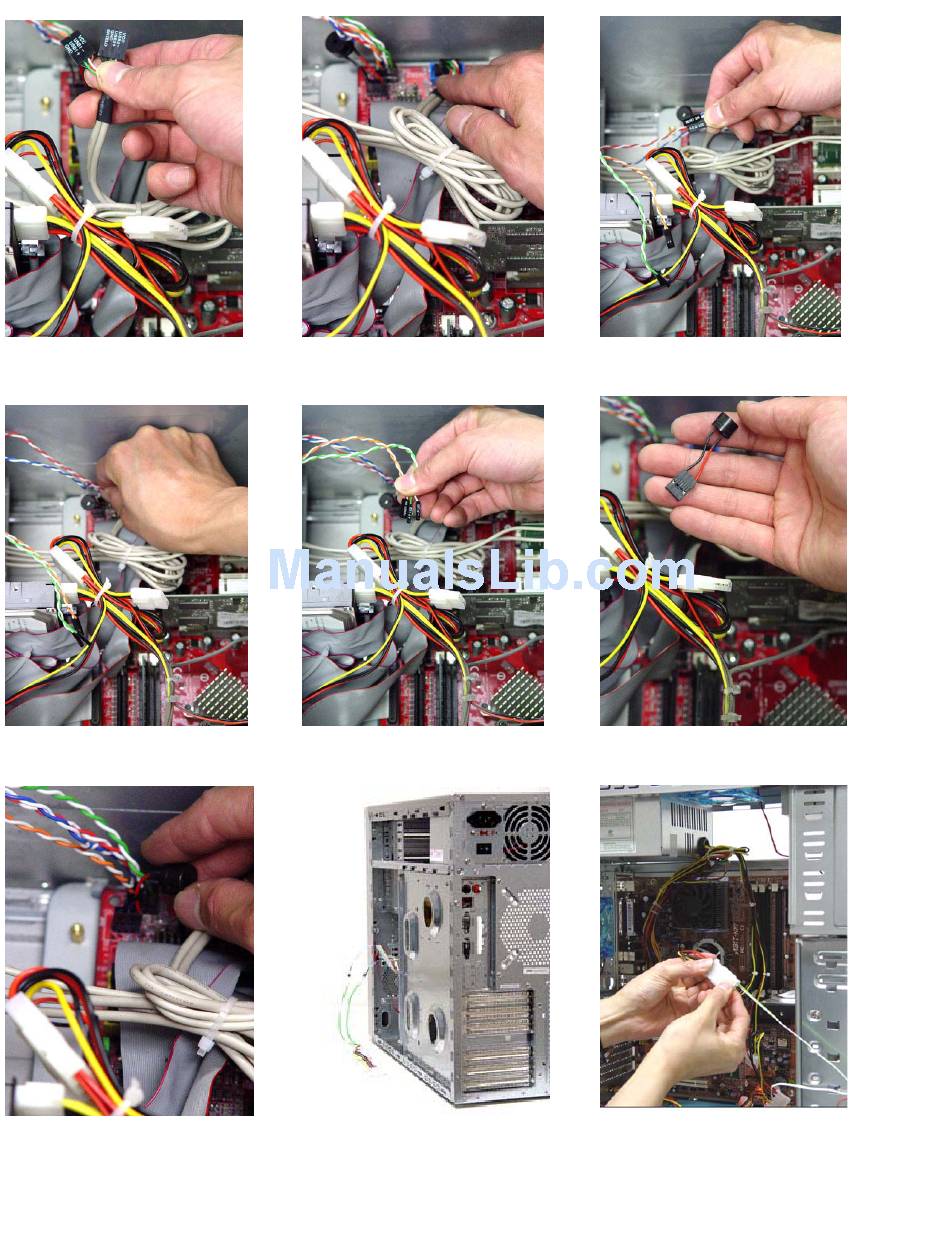

23.Find 2*USB Cables.(USB1
& USB2)
26.Plug them onto your M/B.
Please refer to M/B user manual.
29.Install case speaker onto M/B
following M/B user manual.
24.Plug USB cables to your M/B.
Please refer to M/B User Manual.
27.Find "Power SW" and "+P LED" 28.Find "Case Speaker" from
"-P LED" cables and plug onto M/B. screw box.
Please refer to M/B user manual.
30. Install LED Lights: Find 2*
LED connectors from the front
Panel. They are 2*2-pin
connectors that lead out to2*4-pin
connector (1*Male, 1*Female)
25.Find "HDD LED" and
"Reset SW" cables.
31.Connect the 4-pin Male connector
to a 4-pin connector Female from
power supply.
