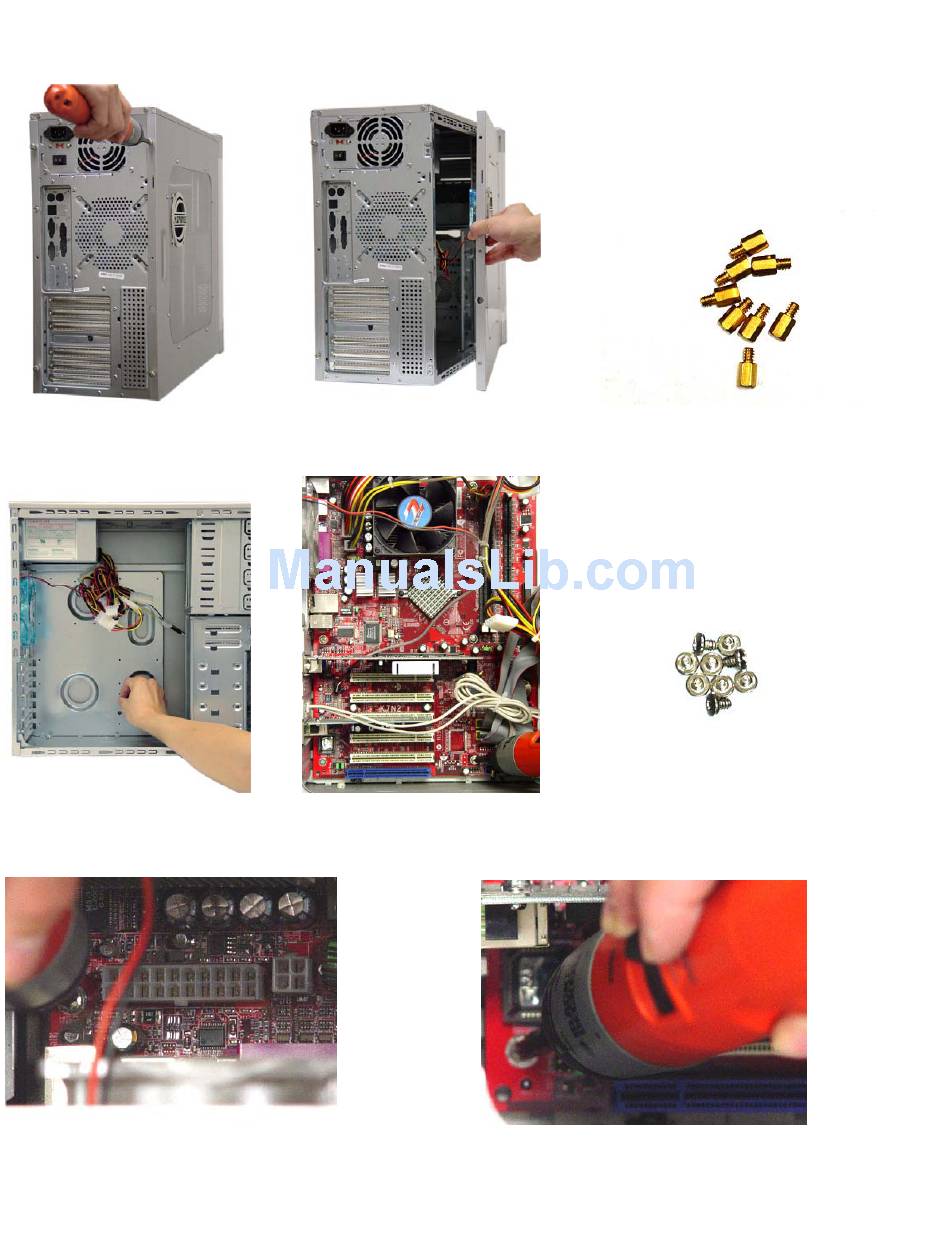

X-Discovery Series Installation Guide
1:Unscrew the thumb screws
from Side Panel.
4:Put the motherboard stand-offs 5.Sit the motherboard on the
on the motherboard tray.
7.Screw in all the screws into the
motherboard stand-offs
2.Pull the side panel back then
pull out.
motherboard tray.
8.Same as Step 7.
3:Find the motherboard stand-offs
from the enclosed screw box.
6.Find screws in the screw box.
