VAC V200 Mounting Instructions

V200 T hird P arty S witch M ounting
Always o rder t he l ong N amur s haft w ith y our t hird p arty s witch f or u se w ith
this k it-­‐Westlock i llustrated-­‐other s witches w ith W estlock m ounting w ill
mount j ust a s w ell. W e a lso h ave m ounting f or S tonel E X S witches.

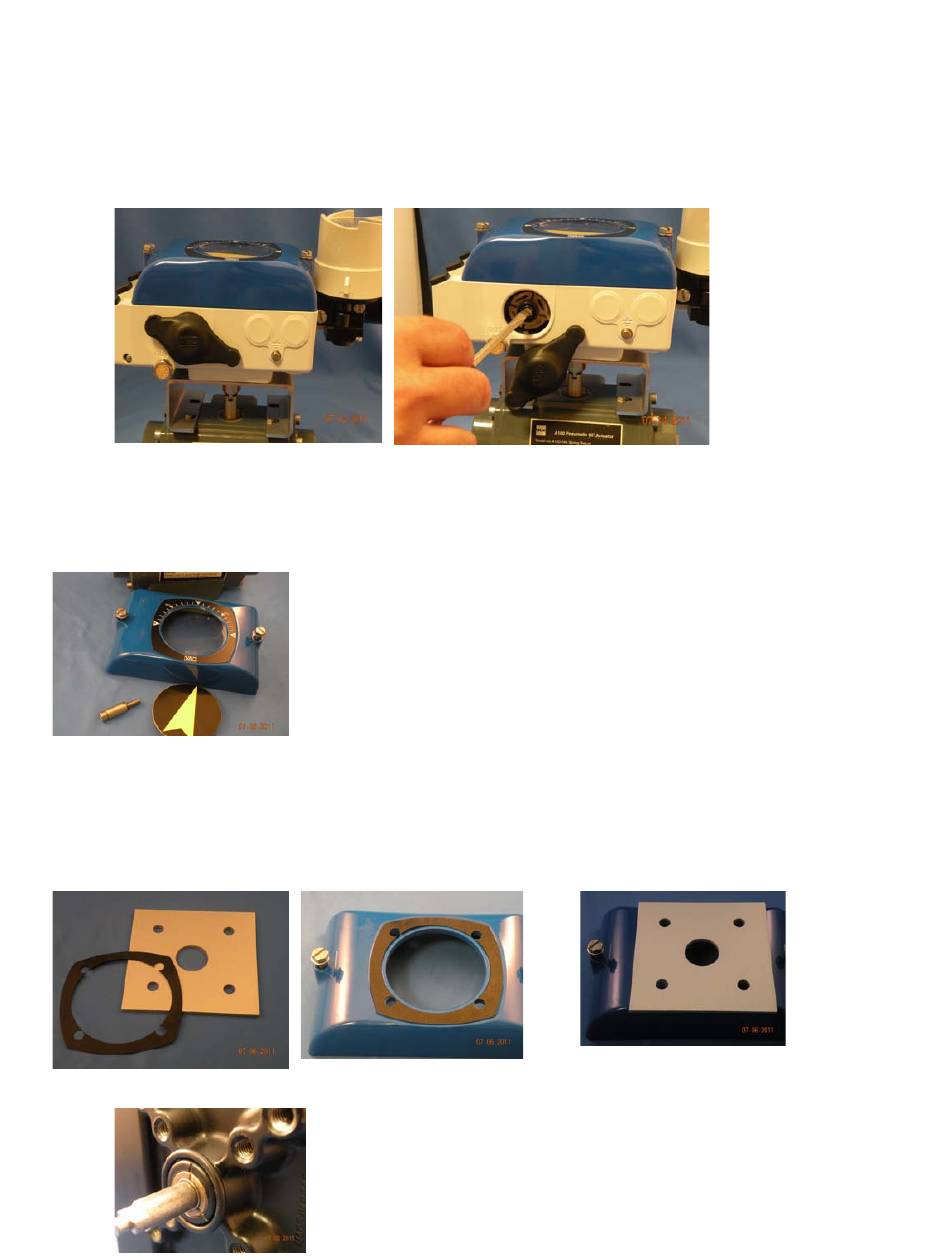

1.Mount a nd c alibrate t he V 200E-­‐EX p ositioner. C alibrate o nly t he
positioner. T he E X I p h as b een f actory c alibrated.
3.Place t he g asket a nd m ounting p late o n c over.
Instructions
2. R emove t he p ositioner c over, a rrow, a nd s ocket
head b olt.
4. P lace t he o -­‐ring o n t he s haft h ub o f t he s witch.
.
