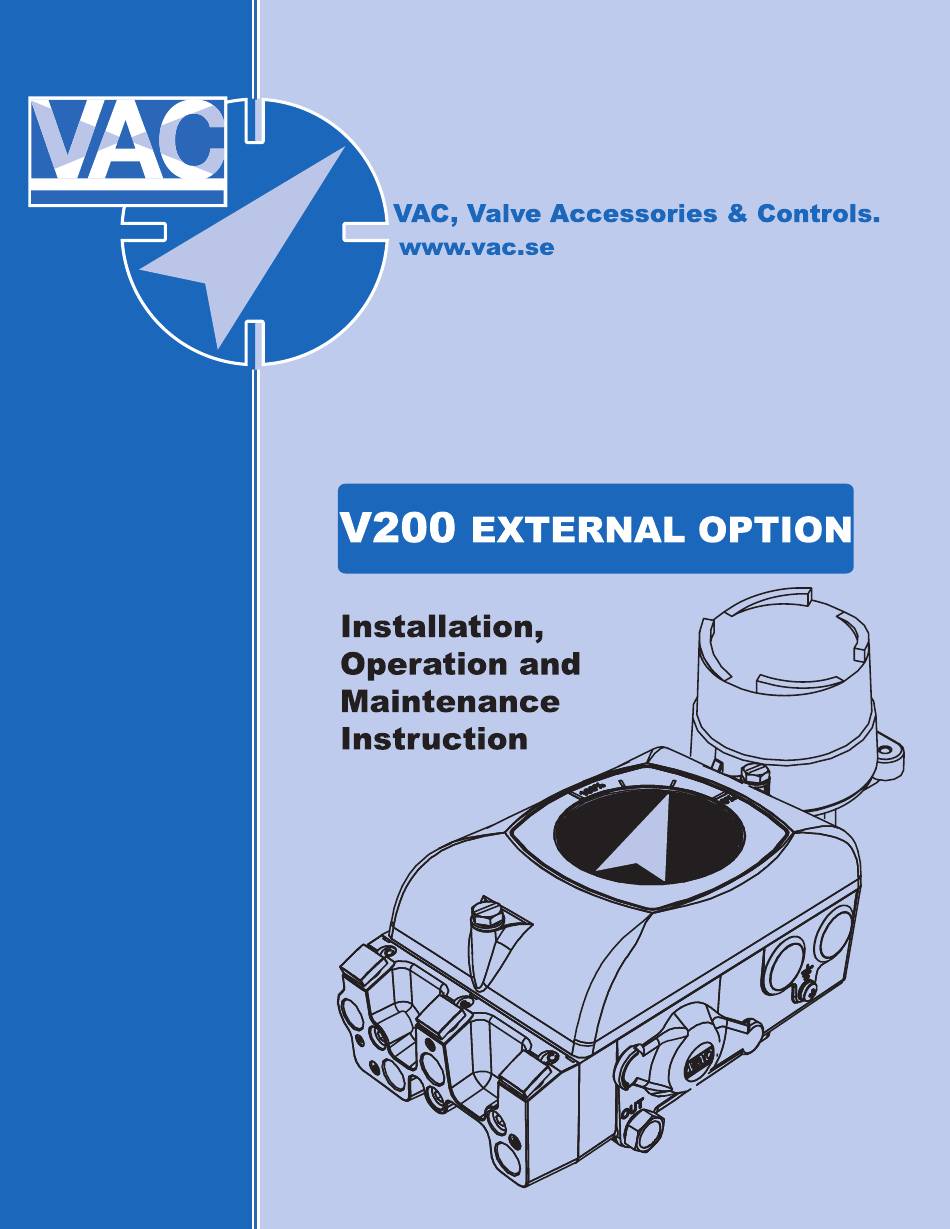

- Page 1 V200 POSITIONER www.vacaccessories.com 92076r16...
-
Page 3: Table Of Contents
V200 POSITIONER www.vacaccessories.com CONTENTS 1 INTRODUCTION .................. 4 Air quality recommendations ........... 4 Safety Instructions ..............4 2 INSTALLATION ..................5 ......Installing external IP converter on V200P Installing external IP converter on V200E ....... 6 2.3 Main supply filter for IP converter ..........7 3 SPARE PARTS ................... -
Page 4: Introduction
V200 POSITIONER www.vac.se 1 INTRODUCTION 1.1 Air quality recommendations To ensure normal operational safety with VAC Poor air quality is one of the main causes of positioner products, we recommend that a wa- premature functional problems with pneumatic ter separator and a <80 micrometer filter are and electropneumatic equipment. The pilot mounted as close to the product as possible. -
Page 5: Installation
V200 POSITIONER www.vacaccessories.com 2 INSTALLATION 2.1 Installing external IP converter on V200P NOTE! This instruction is for use when converting from V200P to V200EX, V200FF or other external IP converter. When converting from V200E please follow the instruction in section 2.2. 1. -
Page 6: Installing External Ip Converter On V200E
V200 POSITIONER www.vac.se 2.2 Installing external IP converter on V200E (which has the internal IP inside the unit). 1. Loosen the two screws(1) that secure the internal IP converter(2) and remove the internal IP. 2. Make sure the two O-rings(3) are still in the positioner housing. -
Page 7: Main Supply Filter For Ip Converter
V200 POSITIONER www.vacaccessories.com 2.3 Main supply filter for IP converter Changing the filter 1. Turn off or disconnect the main air supply. Should air supply not be disconnected or turned off, the pressure may cause the filter cover to eject from the unit. 2. Loosen the screw(1) and remove filter cover(2) 3. Cautiously remove the filter (3) with a sharp pointed object e.g. a pocket knife. 4. Press the new filter(3) into the housing. 5. Check the O-ring(4) and replace if needed. -
Page 8: Spare Parts
V200 POSITIONER www.vac.se 3 SPARE PARTS 3.1 Exploded drawing external options 92076r16... -
Page 9: Spare Parts List External Options
..- Mounting Plate IP ABB EX ... Aluminum, painted ..90046 ....1 3 ..External IP Module Gas Approved ........93063 ....1 1 ..IP Gas Approved ............Contact VAC ... 1 2 ..Mounting Kit external IP Gas Approved .......91012 ....1 .. -
Page 10: Specifications
V200 POSITIONER www.vac.se 4 SPECIFICATIONS 4.1 Specifications external options 0-10V Gas approved Fail Freeze V200 0-10V V200EX V200EX-GA V200FF Input Signal: 0-10VDC (Ri 10K Ohm) 4-20mA (Ri 260 Ohm) 4-20mA (Ri 10K Ohm) 4-20mA (Ri 197 Ohm) Supply Pressure: 20-120 PSI... -
Page 11: Dimensions
V200 POSITIONER www.vacaccessories.com 5 DIMENSIONS 5.1 V200E 0/10V 92076r16... -
Page 12: V200Ex
V200 POSITIONER www.vac.se 5.2 V200EX 92076r16... -
Page 13: V200Ex-Ga
V200 POSITIONER www.vacaccessories.com 5.3 V200EX-GA 92076r16... -
Page 14: V200Ff
V200 POSITIONER www.vac.se 5.4 V200FF 92076r16... - Page 15 V200 POSITIONER www.vacaccessories.com Intentionally blank 92076r16...
