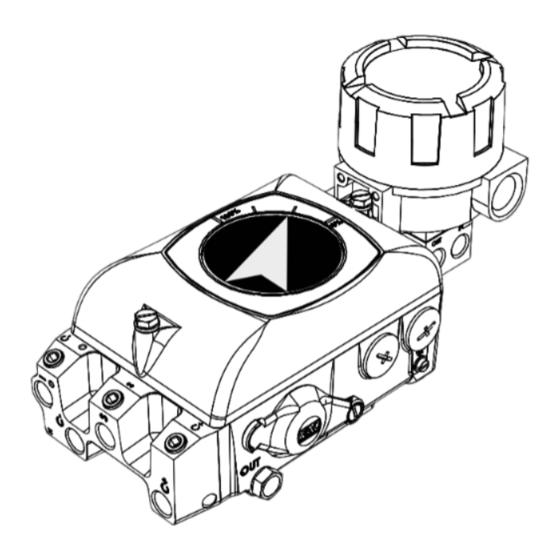

- Page 1 V200 POSITIONER www.vacaccessories.com/v200 Valve Accessories & Controls V200 EXTERNAL OPTION Installation, Operation and Maintenance Instruction V200 External options IOM r2...
-
Page 3: Table Of Contents
V200 POSITIONER www.vacaccessories.com/v200 CONTENTS 1 INTRODUCTION ................. Air quality recommendations ..........Safety Instructions ..............2 INSTALLATION .................. Installing external IP converter on V200P ......Installing external IP converter on V200E ......Main supply filter for IP converter .......... 3 SPARE PARTS .................. Exploded drawing external options ......... -
Page 4: Introduction
V200 POSITIONER www.vacaccessories.com/v200 1 INTRODUCTION 1.1 Air quality recommendations To ensure normal operational safety with VAC Poor air quality is one of the main causes of positioner products, we recommend that a premature functional problems with pneumatic water separator and a <80 micrometer filter are and electropneumatic equipment. -
Page 5: Installation
V200 POSITIONER www.vacaccessories.com/v200 2 INSTALLATION 2.1 Installing external IP converter on V200P NOTE! This instruction is for use when converting from V200P to V200EX, V200FF or other external IP converter. When converting from V200E please follow the instruction in section 2.2. 1. -
Page 6: Installing External Ip Converter On V200E
V200 POSITIONER www.vacaccessories.com/v200 2.2 Installing external IP converter on V200E (which has the internal IP inside the unit). 1. Loosen the two screws(1) that secure the internal IP converter(2) and remove the internal IP. 2. Make sure the two O-rings(3) are still in the positioner housing. -
Page 7: Main Supply Filter For Ip Converter
V200 POSITIONER www.vacaccessories.com/v200 2.3 Main supply filter for IP converter Changing the filter 1. Turn off or disconnect the main air supply. Should air supply not be disconnected or turned off, the pressure may cause the filter cover to eject from the unit. 2. -
Page 8: Spare Parts
V200 POSITIONER www.vacaccessories.com/v200 3 SPARE PARTS 3.1 Exploded drawing external options V200 External options IOM r2... -
Page 9: Spare Parts List External Options
V200 POSITIONER www.vacaccessories.com/v200 3.2 Spare parts list external options Item Description Material Part no 1 ..External IP module 0-10V ..........93016 ....1 1 ..IP 0-10V ............... 400119 .... 1 2 ..Mounting Kit external IP 0-10V ........91011 ....1 .. -
Page 10: Specifications
V200 POSITIONER www.vacaccessories.com/v200 4 SPECIFICATIONS 4.1 Specifications external options Electropneumatic 0-10V Electropneumatic EX Electropneumatic Fail Freeze V200 0-10V V200EX V200FF nput Signal: 0-10VDC (Max:Ri 10K Ohm) 4-20mA (Max:Ri 250 Ohm) 4-20mA (Max:Ri 250 Ohm) Supply Pressure: <100 PSI (<1MPa) 21.8-100 PSI (0.15-1MPa) 21.8-145 PSI (0.15-1MPa) Linearity error: <0.8% f.s... -
Page 11: Dimensions
V200 POSITIONER www.vacaccessories.com/v200 5 DIMENSIONS 5.1 V200E 0/10V V200 External options IOM r2... -
Page 12: V200Ex And V200Ex-Ga
V200 POSITIONER www.vacaccessories.com/v200 5.2 V200EX and V200EX-GA V200 External options IOM r2... -
Page 13: V200Ff
V200 POSITIONER www.vacaccessories.com/v200 5.3 V200FF V200 External options IOM r2...
