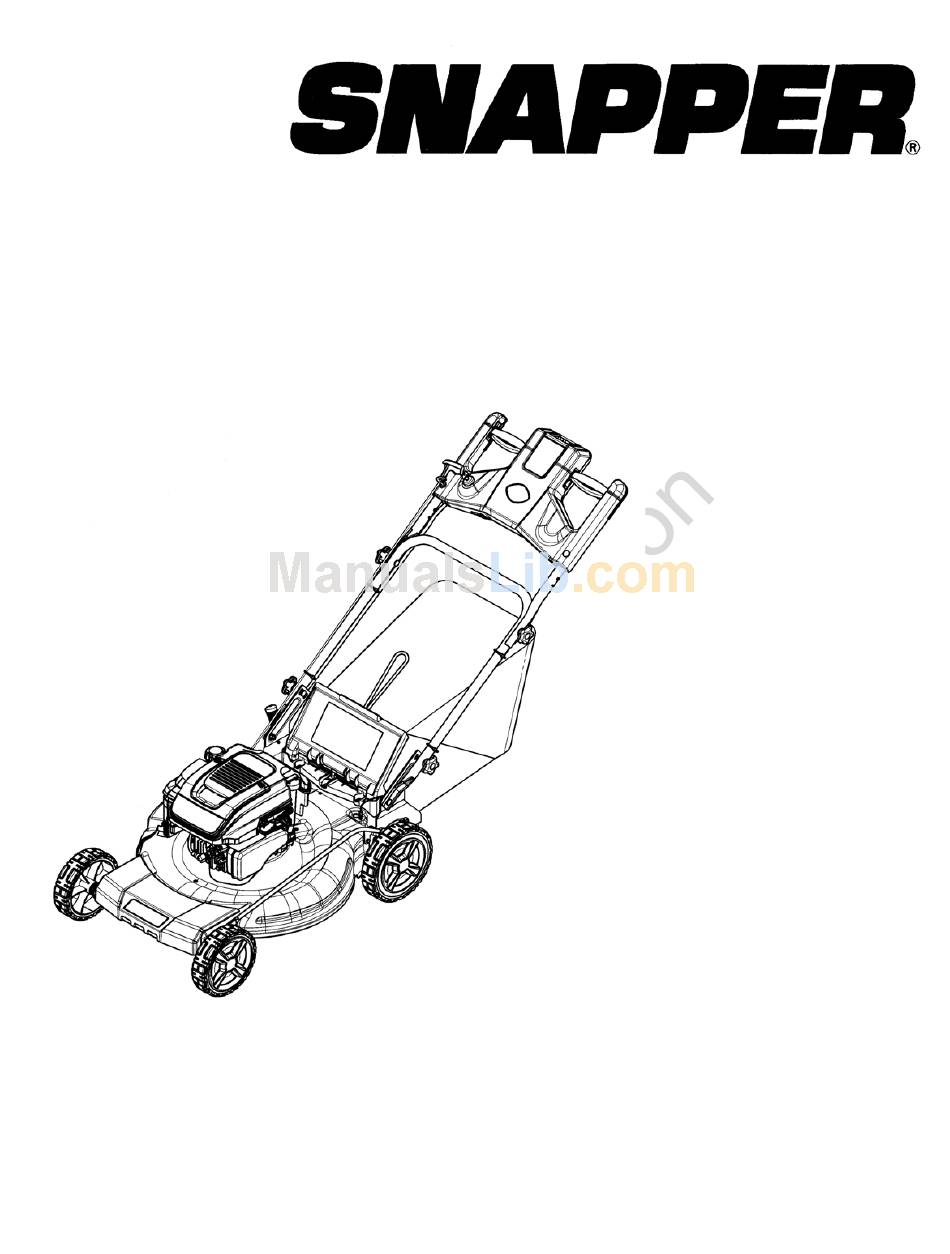

- Page 1 Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 Parts Manual for 22" VARIABLE SPEED 3N1 WALK BEHIND MOWERS Model No. Description 7800756 NSXPV2270 7800757 NSXPV2270E 7800707 SPXV2270 7800708 SXPV2270E Manual No. 7104293 Revision: B 5/13/2011...
-
Page 3: Table Of Contents
PAGE GROUP Handle & Controls Group (Manual Start) Drive Control Assembly (Manual Start) Handle & Controls Group (Electric Start) Drive Control Assembly (Electric Start) Mower Deck Group Engine, Blade & Grass Bag Group Transmission & Wheels Group Decals Group 22" VARIABLE SPEED 3N1 Table Of Contents Manual No. -
Page 4: Handle & Controls Group (Manual Start)
Handle & Controls Group (Manual Start) Manual No. 7104293 22" VARIABLE SPEED 3N1... - Page 5 Item Part No Description 7090015 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2, YZ 7090391 WASHER, 5/16” Internal Tooth Lock 7090951 NUT, 5/16-18 Large Flange Center Lock 7091189 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2 723873 BOLT, 5/16-18 x 3/4”...
-
Page 6: Drive Control Assembly (Manual Start)
Drive Control Assembly (Manual Start) Manual No. 7104293 22" VARIABLE SPEED 3N1... - Page 7 Item Part No Description 7091075 SCREW, #10-24 x 5/8” Hex Washer Self-Tap, GR 5 BZ 7091195 SCREW, #10-16 x 3/4” Pan Head Self-Tap Combo, BZ 1960593 NUT, #10-24 Speed Retainer w/extrusion 7102803 LEVER, Drive Control 7102804 LEVER, OPC, Control 7102805 CAM, Drive, LH 7102806 CAM, Drive, RH...
-
Page 8: Handle & Controls Group (Electric Start)
Handle & Controls Group (Electric Start) Manual No. 7104293 22" VARIABLE SPEED 3N1... - Page 9 Item Part No Description 7028765 SWITCH, ES, Start/Run 7102990 KNOB, Handle, (5/16-18 internal threads) 5-Prong 7090015 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2, YZ 7090391 WASHER, 5/16” Internal Tooth Lock 7090951 NUT, 5/16-18 Large Flange Center Lock 7091189 BOLT, 5/16-18 x 2”...
-
Page 10: Drive Control Assembly (Electric Start)
Drive Control Assembly (Electric Start) Manual No. 7104293 22" VARIABLE SPEED 3N1... - Page 11 Item Part No Description 7091075 SCREW, #10-24 x 5/8” Hex Washer Self-Tap, GR 5 BZ 7091195 SCREW, #10-16 x 3/4” Pan Head Self-Tap Combo, BZ 1960593 NUT, #10-24 Speed Retainer w/extrusion 7102803 LEVER, Drive Control 7102804 LEVER, OPC, Control 7102805 CAM, Drive, LH 7102806 CAM, Drive, RH...
-
Page 12: Mower Deck Group
Mower Deck Group Manual No. 7104293 22" VARIABLE SPEED 3N1... -
Page 13: Mower Deck Group
Item Part No Description 7600155D DECK, 22”, Rear Wheel Drive, Washout (used on 7800756 & 7800707 models) 7600159D DECK, 22", Rear Wheel Drive, Washout, Electric Start (used on 7800757 & 7800708 models) 7300885BH BRACKET, Lower Handle, LH, 22 WBM 7300915BH BRACKET, Lower Handle, RH, 22 WBM 7103298 COVER, Mulching... -
Page 14: Engine, Blade & Grass Bag Group
Engine, Blade & Grass Bag Group Manual No. 7104293 22" VARIABLE SPEED 3N1... - Page 15 Item Part No Description 7900072 SCREW, 3/8-16 x 1-1/4” Hex Washer Self-Tap 7103517 BELT GUIDE, Engine 7100437 PULLEY, Engine 7092086 SET SCREW, 5/16-18 x 1/2” Hex Recess 7091214 KEY, #HP-506 Hi-Pro 7101414 BLADE HUB, 21” WBM, Rear Drive, 2 Position 7103288BZ BLADE, Wave, Steel Deck 7012063...
-
Page 16: Transmission & Wheels Group
Transmission & Wheels Group Manual No. 7104293 22" VARIABLE SPEED 3N1... - Page 17 Item Part No Description 7103312 TRANSMISSION, Variable Speed, Rear Wheel Drive 7400259 WELDMENT, Rear Crossbar, RWD 7400306 WELDMENT, Front Axle 7091195 SCREW, #10-16 x 3/4” Pan Head Self-Tap, Combo 7100863 BELT GUIDE, Transmission 7103364 BELT, 3L, Traction Drive, 22” WBM, RWD (3L Sect., 33.83” Effective Length) 7091585 NUT, 3/8-16 Hex Center Lock, YZ 7100240...
-
Page 18: Decals Group
Decals Group Manual No. 7104293 22" VARIABLE SPEED 3N1... - Page 19 Item Part No Description 7104747 DECAL, Start, React 7104744 DECAL, Drive, React 7104746 DECAL, Stop, React 7104745 DECAL, Run, React 7101394 DECAL, Warning, Rear Discharge Door 7102275 DECAL, Customer Service, MY08, Snapper 7104852 DECAL, Briggs Engine, 700 Series 7104875 DECAL, Briggs Engine, Front Cover “SPX” Series 7103963 DECAL, Front Shroud, Snapper Logo 7103970...
- Page 24 Parts Manual for 22" VARIABLE SPEED 3N1 WALK BEHIND MOWERS IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...
