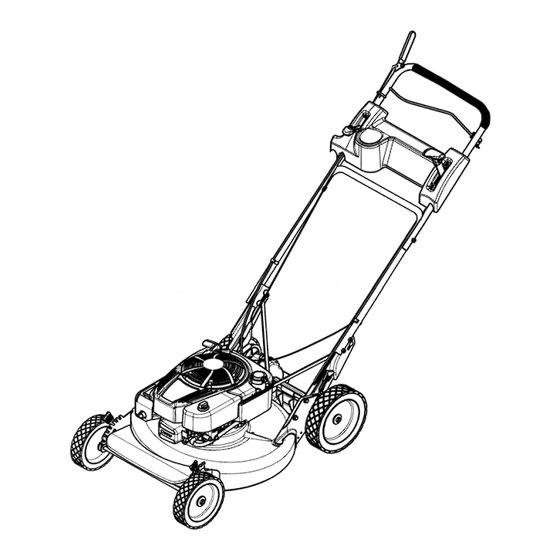

Snapper RP217250 Parts Manual

21" steel deck walk behind series 20 commercial mowers

Hide thumbs Also See for RP217250:

Operator's manual (64 pages)

Table Of Contents

Summary of Contents for Snapper RP217250

Page 1 Parts Manual for 21" STEEL DECK WALK BEHIND COMMERCIAL MOWERS SERIES 20 Model No. Description 7800772 CP218520 7800848 CP218520 7800764 CRP218520 7800847 CRP218520 Briggs & Stratton Yard Power Products Group 535 Macon Road Manual No. 7104803 McDonough, GA, 30253 U.S.A. 800-935-2967 Revision: B 1/19/2012...
Page 3: Table Of Contents
Table Of Contents PAGE GROUP Handles & Controls Group Engine, Deck & Blade Group Wheel & Height-of-Cut Assembly Group Drive System, Self-Propelled Transmission - Differential Group Grass Bag & Accessories Group Side Chute, Adapter Decals Group Manual No. 21" STEEL DECK WALK BEHIND 7104803 SERIES 20 TP 400-5485-B-WB-N...
Page 4: Handles & Controls Group
Handles & Controls Group Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 5 Handles & Controls Group Item Part No Description 7074411A HANDLE, Upper 7023810 FOAM GRIP, 18.75” long 7074418A BAIL, OPC Control 7034872 CLIP, Zone Control 7074156A HANDLE, Middle 7033985A HANDLE, Lower, Adjustable, LH 7033986A HANDLE, Lower, Adjustable, RH 7074140 CONTROL PANEL, No Electric Switch 7900067 SCREW, 1/4-20 x .550”...
Page 6 Handles & Controls Group Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 7 Handles & Controls Group Item Part No Description 7034162 COTTER PIN, 5/16” Self Lock 7090799 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck, GR 5 BZ (Was7091026) 7091601 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ 7046707A BRACE, Handle 7090238 SCREW, 5/16-24 x 1”...
Page 8: Engine, Deck & Blade Group
Engine, Deck & Blade Group Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 9 Engine, Deck & Blade Group Item Part No Description 7400026D WELDMENT, Deck, 21” Non-Adjust. Air (used on 7800764 & 7800847 models) 7500549D WELDMENT, Deck, 21”, Self-Propelled, HV (used on 7800772 & 7800848 models) 7091508 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 (was 7090001) 7091601 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ (was 7091070) 7046780...
Page 10: Wheel & Height-Of-Cut Assembly Group
Wheel & Height-of-Cut Assembly Group Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 11 Wheel & Height-of-Cut Assembly Group Item Part No Description 7090377 NUT, 7/16-20 Hex Center lock Jam, GR 5, YZ 7031960 HUBCAP 7035726 WHEEL, 10 x 1.75- Steel-D- (Self Propelled)- Gray 7031961 WASHER, 7/16” Flat 7091601 NUT, 5/16-18 Hex Flange Lock, GR 5 (Was 7091070) 7021119 AXLE, V21 7035727...
Page 12: Drive System, Self-Propelled
Drive System, Self-Propelled Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 13 Drive System, Self-Propelled Item Part No Description 7091542 SCREW, 5/16-18 x 1/2” Pan Head Self-Tap (Torx) 7090391 WASHER, 5/16” Internal Tooth Lock 7034179A LINK, Differential, Commercial 7011724 WASHER, Curved, .44 x .78 x .025 BZ 7012354 BELT, Poly-V, V21 7091576 NUT, 1/4-20 Hex, GR 5 or B, ZP (Was 7090063) 7090053 WASHER, 1/4”...
Page 14 Drive System, Self-Propelled Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 15 Drive System, Self-Propelled Item Part No Description 7073528 DRIVE DISC, Steel 7017696 BUSHING 7090585 NUT, 5/16-18 Hex Flange Lock, GR 5 7029025 SPRING, Extension, .58 x 3.2 7090731 BOLT, 5/16-18 x 1/2” Short Square neck Carriage, GR 5 7090799 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck, GR 5 BZ (Was 7091026) 7011791 RETAINER, 5/16”...
Page 16: Transmission - Differential Group
Transmission - Differential Group Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 17 Transmission - Differential Group Item Part No Description 7053943 ASSEMBLY, Transmission 7051908 ASSEMBLY, Right Hand Housing (Includes enclosed items) 7029034 HOUSING, Right Hand 7012314 SEAL, 5/8” ID 7073963 BALL BEARING, 1-1/8” O.D. 7029035 BEARING, Tapered, Differential Housing 7024442 GASKET, 5/8” O.D. 7014155 SCREW, 5/16-24 x 1-1/8”...
Page 18: Grass Bag & Accessories Group
Grass Bag & Accessories Group Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 19 Grass Bag & Accessories Group Item Part No Description 7501482 ASSEMBLY, Grass Bag (Slider Type, No Graphics) (replaces 7058572) 7103205 GRASS BAG, Res. Slider w/o Graphics (replaces 7075766) 7050711 ASSEMBLY, Slider 7042489A WELDMENT, Bag Connector 7019247 WIRE, Rear Bag 7058037 ASSEMBLY, Bag Adapter 7047081 BAG ADAPTER, 21...
Page 20: Side Chute, Adapter
Side Chute, Adapter Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 21 Side Chute, Adapter Item Part No Description 7047081 BAG ADAPTER, 21 7042965 CHUTE, 21” Side (accessory part) 7029149 COVER, 21” Deck 7091508 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 (Was 7090001) 7011791 RETAINER, 5/16” Bolt 7024340 SPACER, .316 I.D. x .375 O.D. x .310 thick 7090951 NUT, 5/16-18 Hex Large Flange Center Lock 7090189...
Page 22: Decals Group
Decals Group Manual No. 7104803 21" STEEL DECK WALK BEHIND SERIES 20...
Page 23: Decals Group
Decals Group Item Part No Description 7104148 DECAL, Logo, Snapper, 7.88” (used on all 4 models) 7046720 DECAL, Chute Deflector (used on 7800772 & 7800764 models) 7102324 DECAL, Chute/Deflector FC (used on 7800847 & 7800848 models) 278279 DECAL, 8.50T/190cc Professional Series (used on 7800772 & 7800764 models) 7075532 DECAL, Throttle Control, B&S (used on all 4 models)
Page 28 OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 Manual No. 7104803 www.snapper.com Revision: B 1/19/2012 Copyright © 2012 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved...

This manual is also suitable for:

7800772 Cp218520 7800848 7800764 Crp218520 7800847
