Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

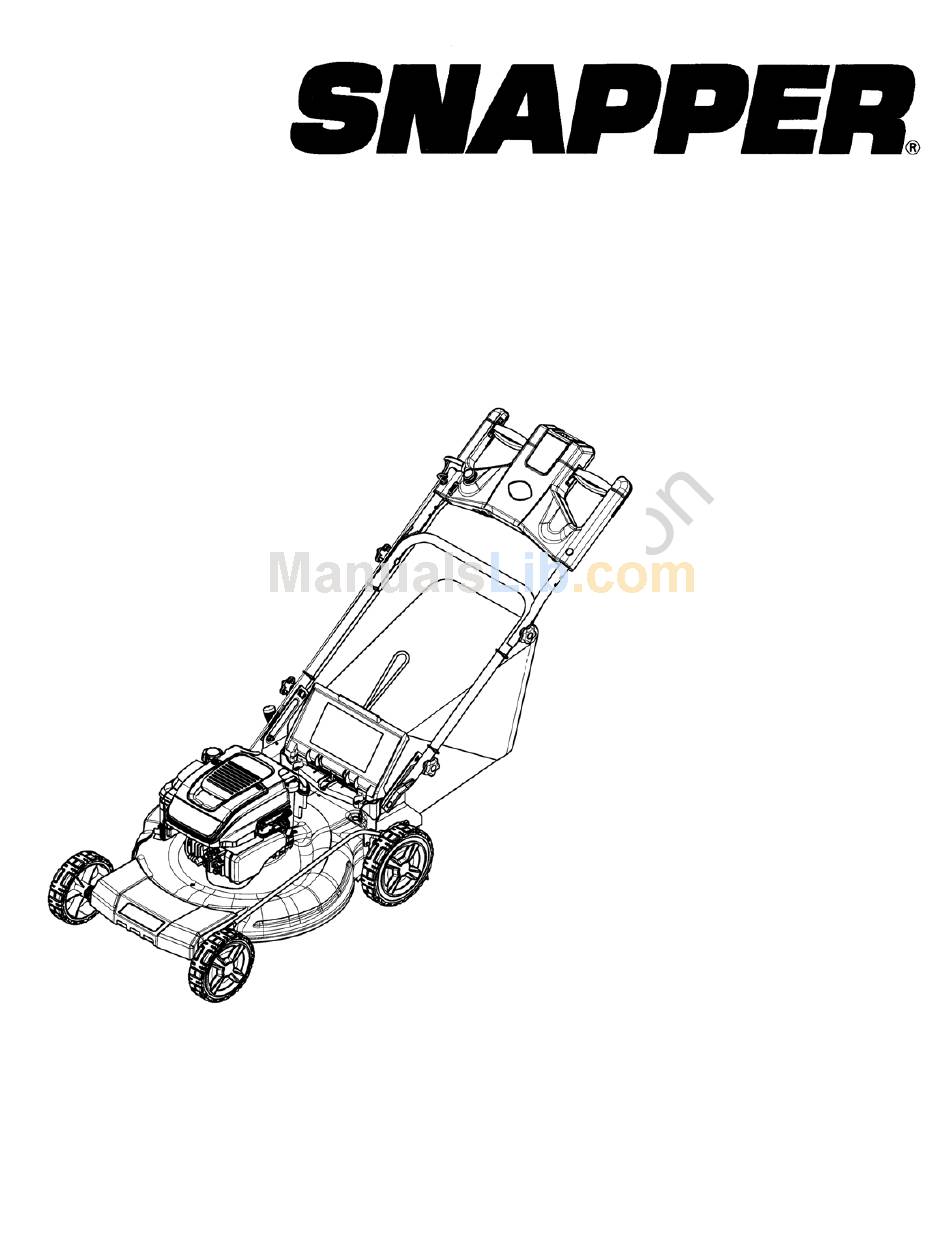

22" SELF-PROPELLED
ELECTRIC START MOWER
Parts Manual for
NXT SERIES
Model No.
Description
7800722
ENXT22875E
7800580
NXT22875E
7800752
NXT22875EE
7800696
NXT22875EFC
7800782
NXT22875EEFC
Manual No.
Revision: E
7104329
5/13/2011
Advertisement
Table of Contents
Related Manuals for Snapper SNAPPER 7800580
Summary of Contents for Snapper SNAPPER 7800580
- Page 1 Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 Parts Manual for 22" SELF-PROPELLED ELECTRIC START MOWER NXT SERIES Model No. Description 7800722 ENXT22875E 7800580 NXT22875E 7800752 NXT22875EE 7800696 NXT22875EFC 7800782 NXT22875EEFC Manual No. 7104329 Revision: E 5/13/2011...
-
Page 3: Table Of Contents
PAGE GROUP Handle & Controls Group (MY 2010 & Euro) Drive Control Assembly (MY 2010 & Euro) Handle & Controls Group, EHOC (MY 2011) Drive Control Assembly, EHOC (MY 2011) Mower Deck Group Wheels Group Engine, Blade & Grass Bag Group Transmission Group Decals 22"... -
Page 4: Handle & Controls Group (My 2010 & Euro)
Handle & Controls Group (MY 2010 & Euro) Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... - Page 5 Item Part No Description 7090015 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2, YZ 7101410 GUIDE, Rope, 1/4-20 x 1.8” (Euro Model 7800722) 7090391 WASHER, 5/16” Internal Tooth Lock 7090951 NUT, 5/16-18 Large Flange Center Lock 7091189 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2 723873 BOLT, 5/16-18 x 3/4”...
-
Page 6: Drive Control Assembly (My 2010 & Euro)
Drive Control Assembly (MY 2010 & Euro) Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... - Page 7 Item Part No Description 7091075 SCREW, #10-24 x 5/8” Hex Washer Self-Tap, GR 5 BZ 7091195 SCREW, #10-16 x 3/4” Pan Head Self-Tap Combo, BZ 1960593 NUT, #10-24 Speed Retainer w/extrusion 7102803 LEVER, Drive Control 7102804 LEVER, OPC, Control 7102805 CAM, Drive, LH 7102806 CAM, Drive, RH...
-
Page 8: Handle & Controls Group, Ehoc (My 2011)
Handle & Controls Group, EHOC (MY 2011) Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... - Page 9 Item Part No Description 7090015 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2, YZ 7090391 WASHER, 5/16” Internal Tooth Lock 7090951 NUT, 5/16-18 Large Flange Center Lock 7091189 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2 723873 BOLT, 5/16-18 x 3/4”...
-
Page 10: Drive Control Assembly, Ehoc (My 2011)
Drive Control Assembly, EHOC (MY 2011) Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... - Page 11 Item Part No Description 7091075 SCREW, #10-24 x 5/8” Hex Washer Self-Tap, GR 5 BZ 7091195 SCREW, #10-16 x 3/4” Pan Head Self-Tap Combo, BZ 1960593 NUT, #10-24 Speed Retainer w/extrusion 7102803 LEVER, Drive Control 7102804 LEVER, OPC, Control 7102805 CAM, Drive, LH 7102806 CAM, Drive, RH...
-
Page 12: Mower Deck Group
Mower Deck Group Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... - Page 13 Item Part No Description 7600155D DECK, 22”, Rear Wheel Drive, Washout (Was 7301112D) 7300885BH BRACKET, Lower Handle, LH, 22 WBM 7300915BH BRACKET, Lower Handle, RH, 22 WBM (used on 7800580 & 7800696 models) 7301141BH BRACKET, Lower Handle, Elec HOC, RH (used on 7800752 & 7800782 models) 7103298 COVER, Mulching 7103299...
-
Page 14: Wheels Group
Wheels Group Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... -
Page 15: Wheels Group
Item Part No Description 7091591 BOLT, 5/16-18 x 1” Hex Flange Lock, GR 5, YZ 7103290 HOLDER, Bearing, Rear Wheel Drive 7078243 BALL BEARING, Axle 1931277 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ (Was 7091601) 7100861 PIN, Axle 7101367 SHIELD, Dust, 21”... -
Page 16: Engine, Blade & Grass Bag Group
Engine, Blade & Grass Bag Group Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... - Page 17 Item Part No Description 7900072 SCREW, 3/8-16 x 1-1/4” Hex Washer Self-Tap 7103517 BELT GUIDE, Engine 7100437 PULLEY, Engine 7092086 SET SCREW, 5/16-18 x 1/2” Hex Recess 7091214 KEY, #HP-506 Hi-Pro 7101414 BLADE HUB, 21” WBM, Rear Drive, 2 Position 7103288BZ BLADE, Wave, Steel Deck 7012063...
-
Page 18: Transmission Group
Transmission Group Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... -
Page 19: Transmission Group
Item Part No Description 7103312 TRANSMISSION, Variable Speed, Rear Wheel Drive 7100240 PULLEY, Transmission Variable Speed, LC WBM 7091585 NUT, 3/8-16 Hex Center Lock, YZ 7103364 BELT, 3L, Traction Drive, 22” WBM, RWD (3L Section, 33.83” Effective Length) 7100863 BELT GUIDE, Transmission 7091195 SCREW, #10-16 x 3/4”... -
Page 20: Decals
Decals Manual No. 7104329 22" SELF-PROPELLED NXT SERIES... - Page 21 Item Part No Description 7103963 DECAL, Front Shroud, Snapper Logo 7103964 DECAL, Front Shroud, NXT Logo 7103965 DECAL, Handle, Domed Turtle 7103966 DECAL, Handle, React Drive 7103967 DECAL, Start NXT 7103968 DECAL, Stop NXT 7102275 DECAL, Customer Service, MY08, Snapper 7013010 DECAL, Danger, Cut Finger 7101495...
- Page 24 Parts Manual for 22" SELF-PROPELLED ELECTRIC START MOWER NXT SERIES IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...
