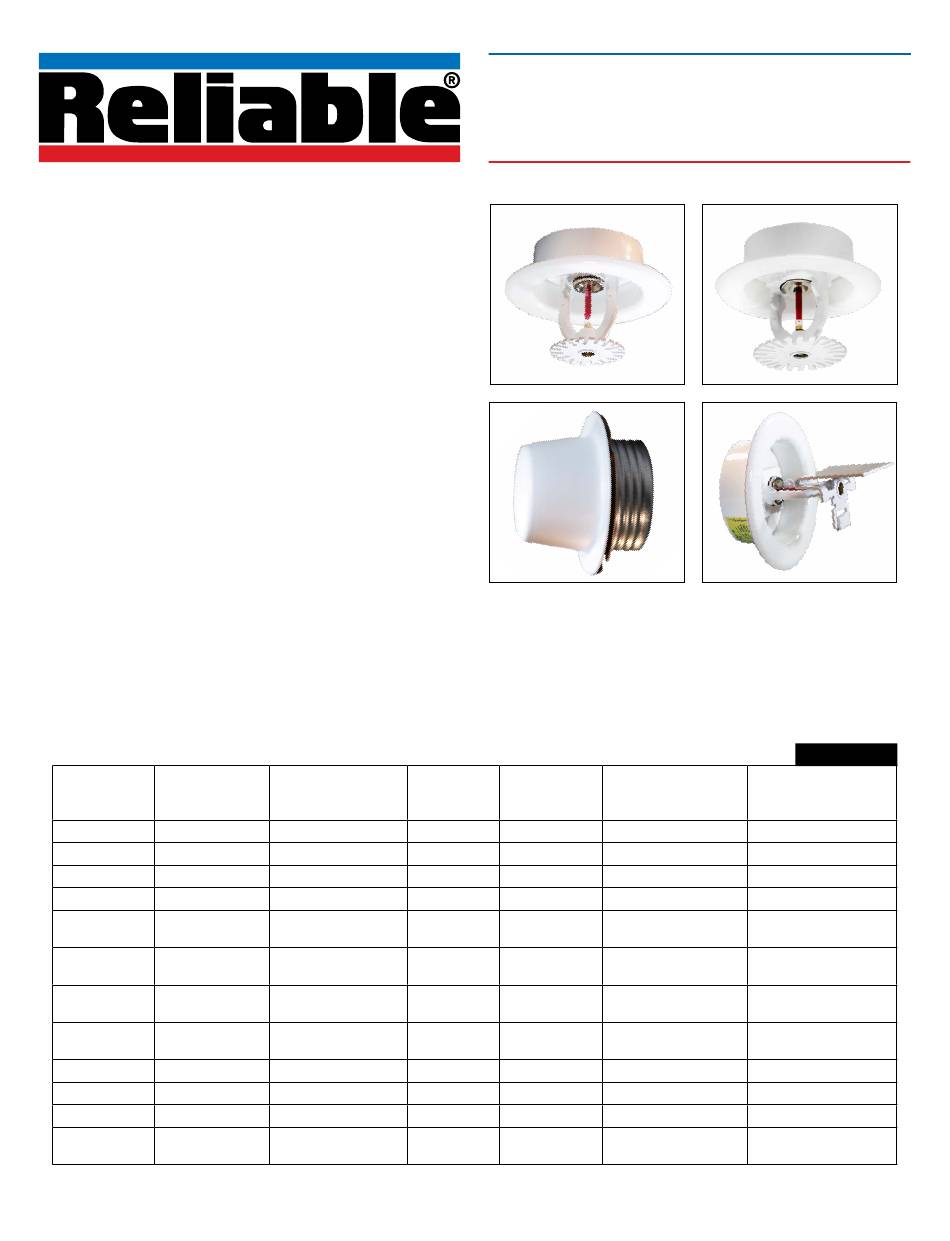

Reliable F1Res Series Bulletin

Features
• cULus Listed Residential Sprinklers
• Available in pendent and horizontal sidewall orientations
• Decorative finishes available, including recessed
escutcheons and conical concealed cover plates
Product Description

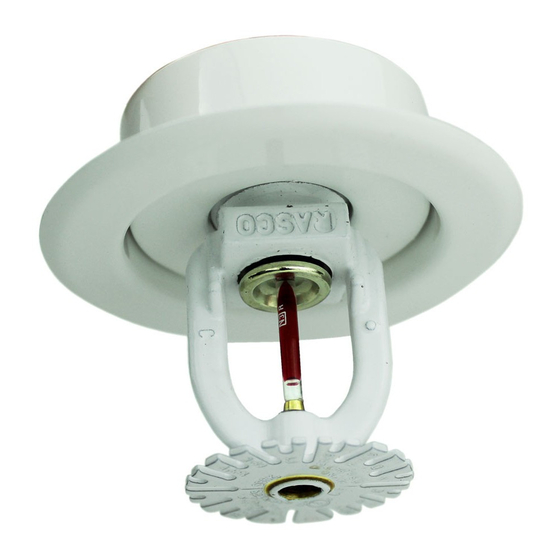

Model F1Res Series sprinklers are residential sprinklers with a
3 mm glass bulb operating element. A variety of K-Factors as
well as recessed and conical concealed options are available
as detailed in this Bulletin.
The F1Res Series sprinklers are specially engineered for fast
thermal response to meet the requirements of UL 1626. They
are intended for installation in accordance with NFPA 13, 13R,
and 13D.
Application
The Model F1Res Series sprinklers cULus Listed Residential
sprinklers are intended for use in accordance with NFPA
13, NFPA 13R, or NFPA 13D. The Model F1Res residential
sprinklers are cULus Listed for use in residential occupancies
and residential portions of any occupancy, where permitted
by NFPA 13, NFPA 13R, or NFPA 13D. For NFPA 13R and
NFPA 13D applications, the design flow and pressure shall
not be less than the minimum flow and pressure specified
Residential Sprinkler Summary
Sprinkler
Sprinkler
Identification
Model
Number (SIN)
F1Res30 R3511
F1Res49 R3516
F1Res58 R3513
F1Res76 R7618
F1Res30 CCP R3511
F1Res49 CCP R3516
F1Res58 CCP R3513
F1Res76 CCP R7618
F1Res44 HSW R3531
F1Res44 SWC R3531
F1Res58 HSW R3533
F1Res 58
RA3533
HSWX
K-Factor
Orientation gpm/psi
(lpm/bar
Pendent 3.0 (43)
Pendent 4.9 (71)
Pendent 5.8 (84)
Pendent 7.6 (109)
Pendent 3.0 (43)
Pendent 4.9 (71)
Pendent 5.8 (84)
Pendent 7.6 (109)
Horizontal Sidewall 4.4 (63)
Horizontal Sidewall 4.4 (63)
Horizontal Sidewall 5.8 (84)
Horizontal Sidewall 5.8 (84)
www.reliablesprinkler.com
Model F1Res Series Glass Bulb
in the Listed Design Criteria tables in this Bulletin. For NFPA
13 applications, the design density shall be a minimum
of 0.1 gpm/sf (4.1 mm/min), but in no case shall the flow
and pressure be less than the minimum flow and pressure
specified in the Listed Design Criteria tables in this bulletin.
Model F1Res Series sprinklers are listed for use in wet
systems only.
Thread Size
Installation Options
1/2
NPT or ISO7-1
)
1/2
1/2 Pendent or Recessed
1/2 Pendent or Recessed
1/2 Pendent or Recessed
3/4 Pendent or Recessed
Conical Concealed or
1/2
Recessed
Conical Concealed or
1/2
Recessed
Conical Concealed or
1/2
Recessed
Conical Concealed or
3/4
Recessed
1/2 Recessed
1/2 Conical Concealed
1/2 Recessed
1/2 Recessed
Bulletin 135 February 2020
Residential Sprinklers
cULus Listed
Table A
Max. Coverage Area
ft x ft (m x m)
16 x16 (4.9 x 4.9)
20 x 20 (6.1 x 6.1)
20 x 20 (6.1 x 6.1)
20 x 20 (6.1 x 6.1)
14 x 14 (4.3 x 4.3)
20 x 20 (6.1 x 6.1)
20 x 20 (6.1 x 6.1)
20 x 20 (6.1 x 6.1)
16 x 20 (4.9 x 6.1)
16 x 20 (4.9 x 6.1)
16 x 20 (4.9 x 6.1)
14 x 26 (4.3 x 7.9)
