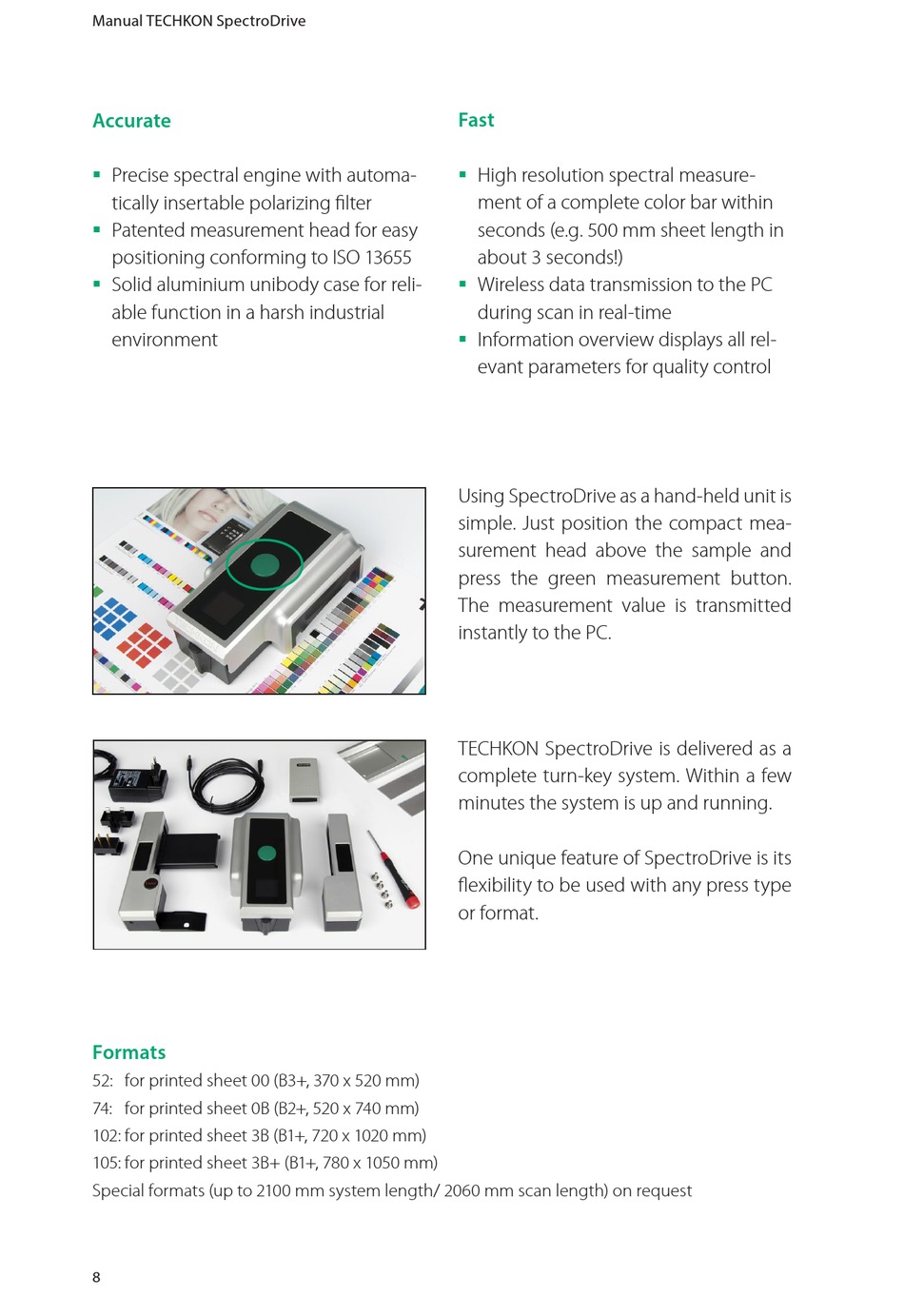

Techkon SpectroDrive Manual page 8

Manual TECHKON SpectroDrive
Accurate
Precise spectral engine with automa-

tically insertable polarizing filter
Patented measurement head for easy

positioning conforming to ISO 13655
Solid aluminium unibody case for reli-

able function in a harsh industrial
environment
Formats
52: for printed sheet 00 (B3+, 370 x 520 mm)
74: for printed sheet 0B (B2+, 520 x 740 mm)
102: for printed sheet 3B (B1+, 720 x 1020 mm)
105: for printed sheet 3B+ (B1+, 780 x 1050 mm)
Special formats (up to 2100 mm system length/ 2060 mm scan length) on request
8
Fast
High resolution spectral measure-

ment of a complete color bar within
seconds (e.g. 500 mm sheet length in
about 3 seconds!)
Wireless data transmission to the PC

during scan in real-time
Information overview displays all rel-

evant parameters for quality control
Using SpectroDrive as a hand-held unit is
simple. Just position the compact mea-
surement head above the sample and
press the green measurement button.
The measurement value is transmitted
instantly to the PC.
TECHKON SpectroDrive is delivered as a
complete turn-key system. Within a few
minutes the system is up and running.
One unique feature of SpectroDrive is its
flexibility to be used with any press type
or format.
