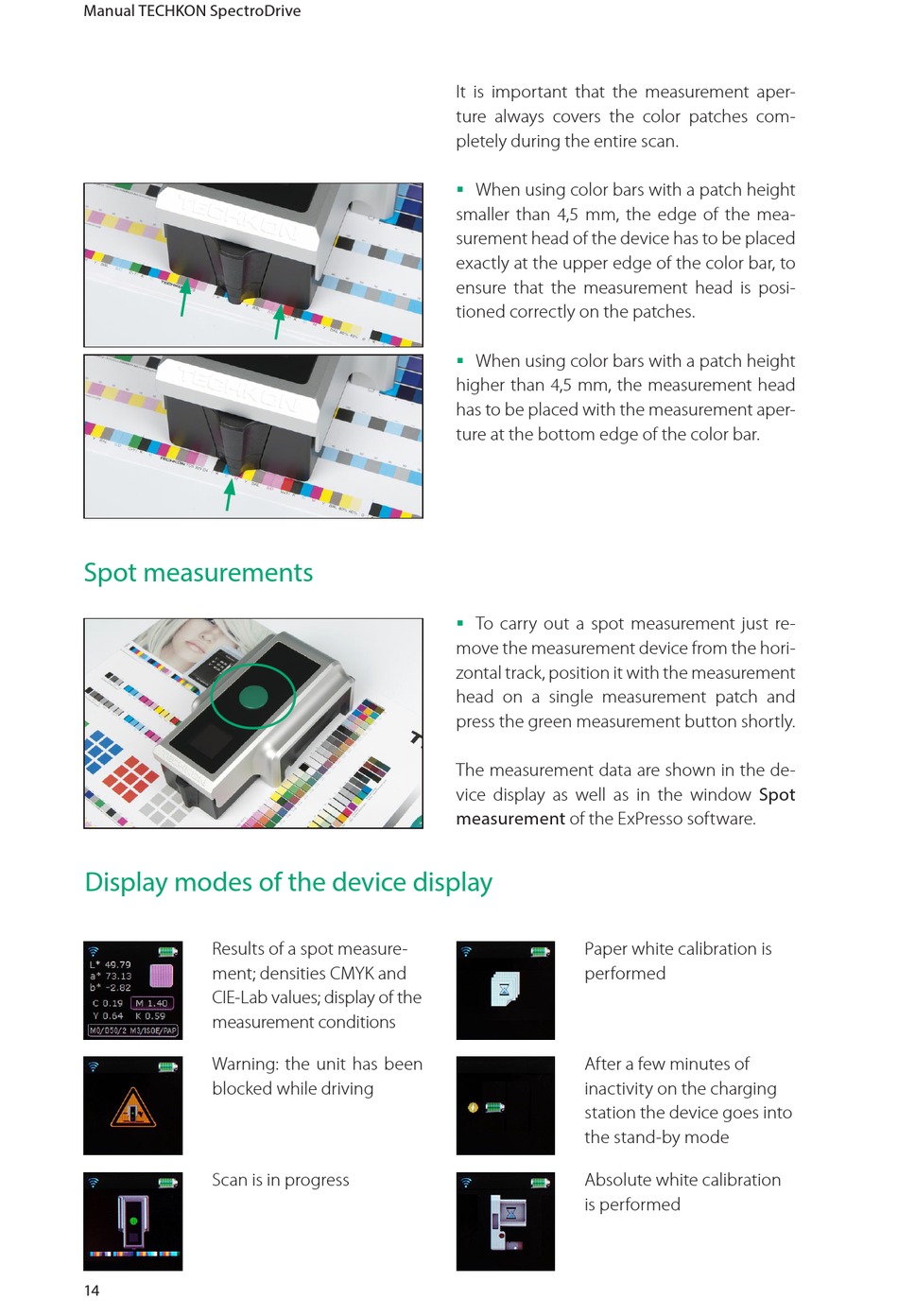

Manual TECHKON SpectroDrive
Spot measurements
Display modes of the device display
Results of a spot measure-
ment; densities CMYK and
CIE-Lab values; display of the
measurement conditions
Warning: the unit has been
blocked while driving
Scan is in progress
14
It is important that the measurement aper-
ture always covers the color patches com-
pletely during the entire scan.
When using color bars with a patch height

smaller than 4,5 mm, the edge of the mea-
surement head of the device has to be placed
exactly at the upper edge of the color bar, to
ensure that the measurement head is posi-
tioned correctly on the patches.
 When using color bars with a patch height
higher than 4,5 mm, the measurement head
has to be placed with the measurement aper-
ture at the bottom edge of the color bar.
To carry out a spot measurement just re-

move the measurement device from the hori-
zontal track, position it with the measurement
head on a single measurement patch and
press the green measurement button shortly.
The measurement data are shown in the de-
vice display as well as in the window Spot
measurement of the ExPresso software.
Paper white calibration is
performed
After a few minutes of
inactivity on the charging
station the device goes into
the stand-by mode
Absolute white calibration
is performed
