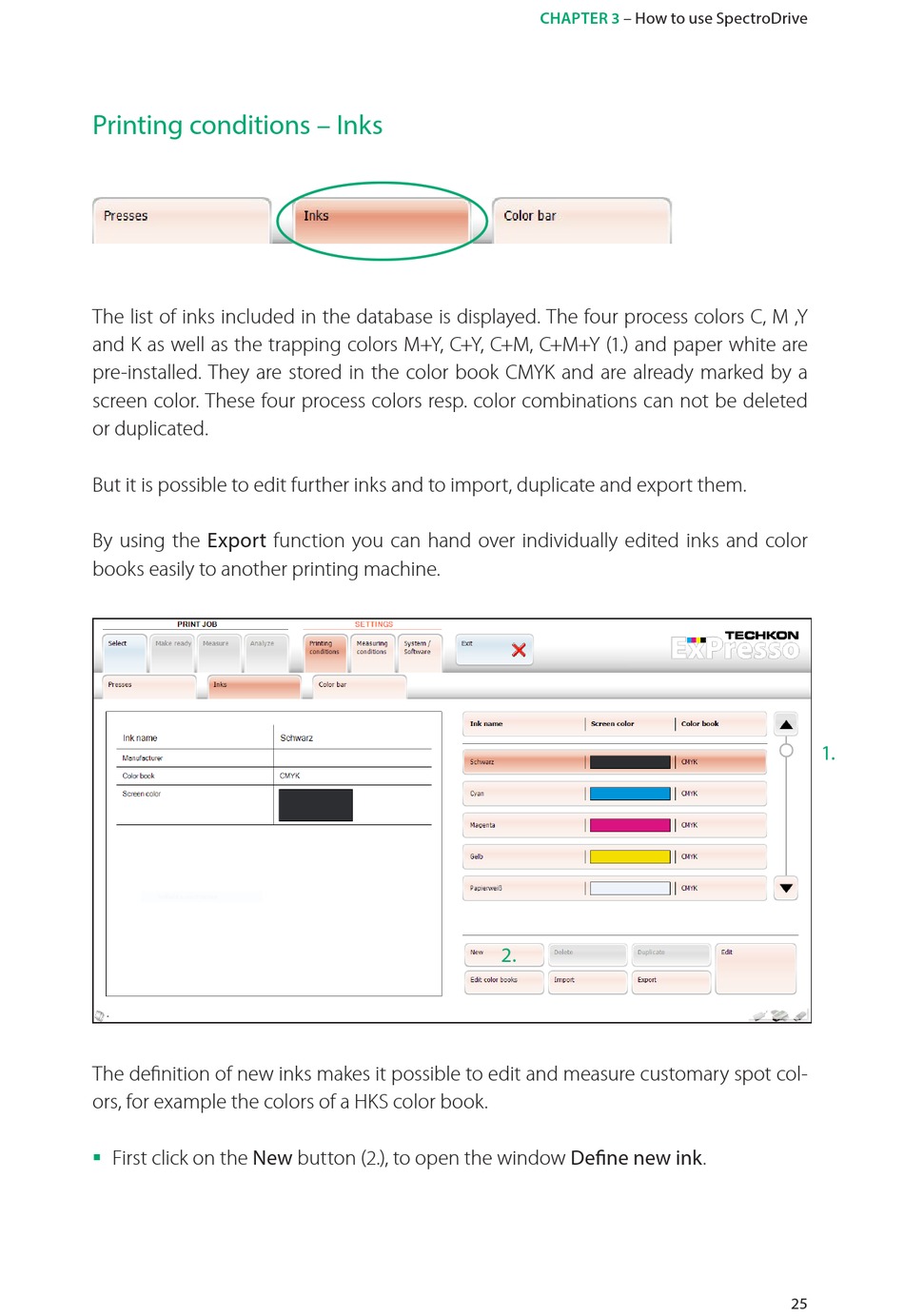

Techkon SpectroDrive Manual page 25

CHAPTER 3
– How to use SpectroDrive
Printing conditions – Inks
The list of inks included in the database is displayed. The four process colors C, M ,Y
and K as well as the trapping colors M+Y, C+Y, C+M, C+M+Y (1.) and paper white are
pre-installed. They are stored in the color book CMYK and are already marked by a
screen color. These four process colors resp. color combinations can not be deleted
or duplicated.
But it is possible to edit further inks and to import, duplicate and export them.
By using the Export function you can hand over individually edited inks and color
books easily to another printing machine.
1.
2.
The definition of new inks makes it possible to edit and measure customary spot col-
ors, for example the colors of a HKS color book.
First click on the New button (2.), to open the window Define new ink.

25
