Chapter 2
Installation of SpectroDrive and the software ExPresso 4

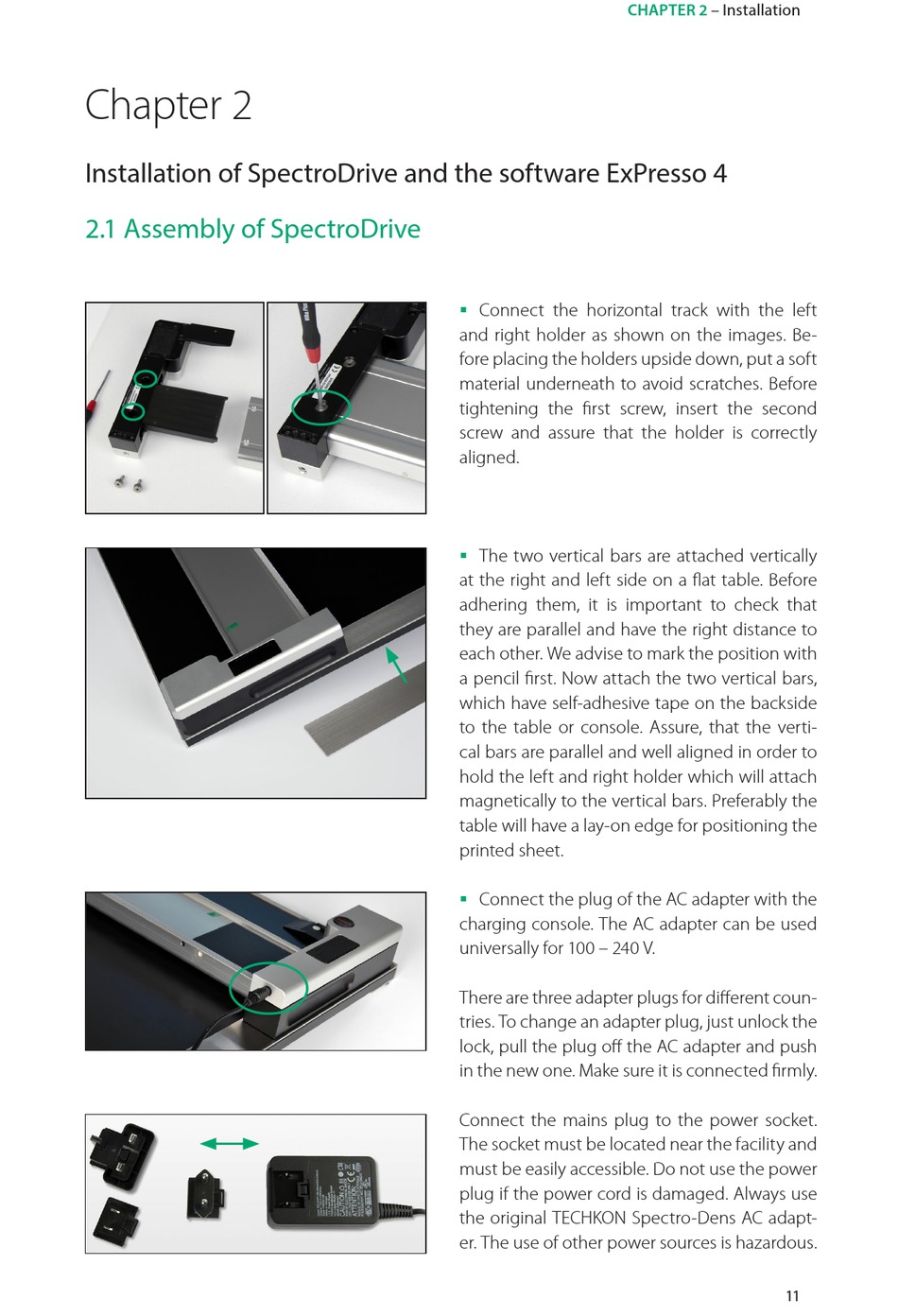

2.1 Assembly of SpectroDrive

Connect the horizontal track with the left

and right holder as shown on the images. Be-
fore placing the holders upside down, put a soft
material underneath to avoid scratches. Before
tightening the first screw, insert the second
screw and assure that the holder is correctly
aligned.
The two vertical bars are attached vertically

at the right and left side on a flat table. Before
adhering them, it is important to check that
they are parallel and have the right distance to
each other. We advise to mark the position with
a pencil first. Now attach the two vertical bars,
which have self-adhesive tape on the backside
to the table or console. Assure, that the verti-
cal bars are parallel and well aligned in order to
hold the left and right holder which will attach
magnetically to the vertical bars. Preferably the
table will have a lay-on edge for positioning the
printed sheet.
Connect the plug of the AC adapter with the

charging console. The AC adapter can be used
universally for 100 – 240 V.
There are three adapter plugs for different coun-
tries. To change an adapter plug, just unlock the
lock, pull the plug off the AC adapter and push
in the new one. Make sure it is connected firmly.
Connect the mains plug to the power socket.
The socket must be located near the facility and
must be easily accessible. Do not use the power
plug if the power cord is damaged. Always use
the original TECHKON Spectro-Dens AC adapt-
er. The use of other power sources is hazardous.
