2.
1.

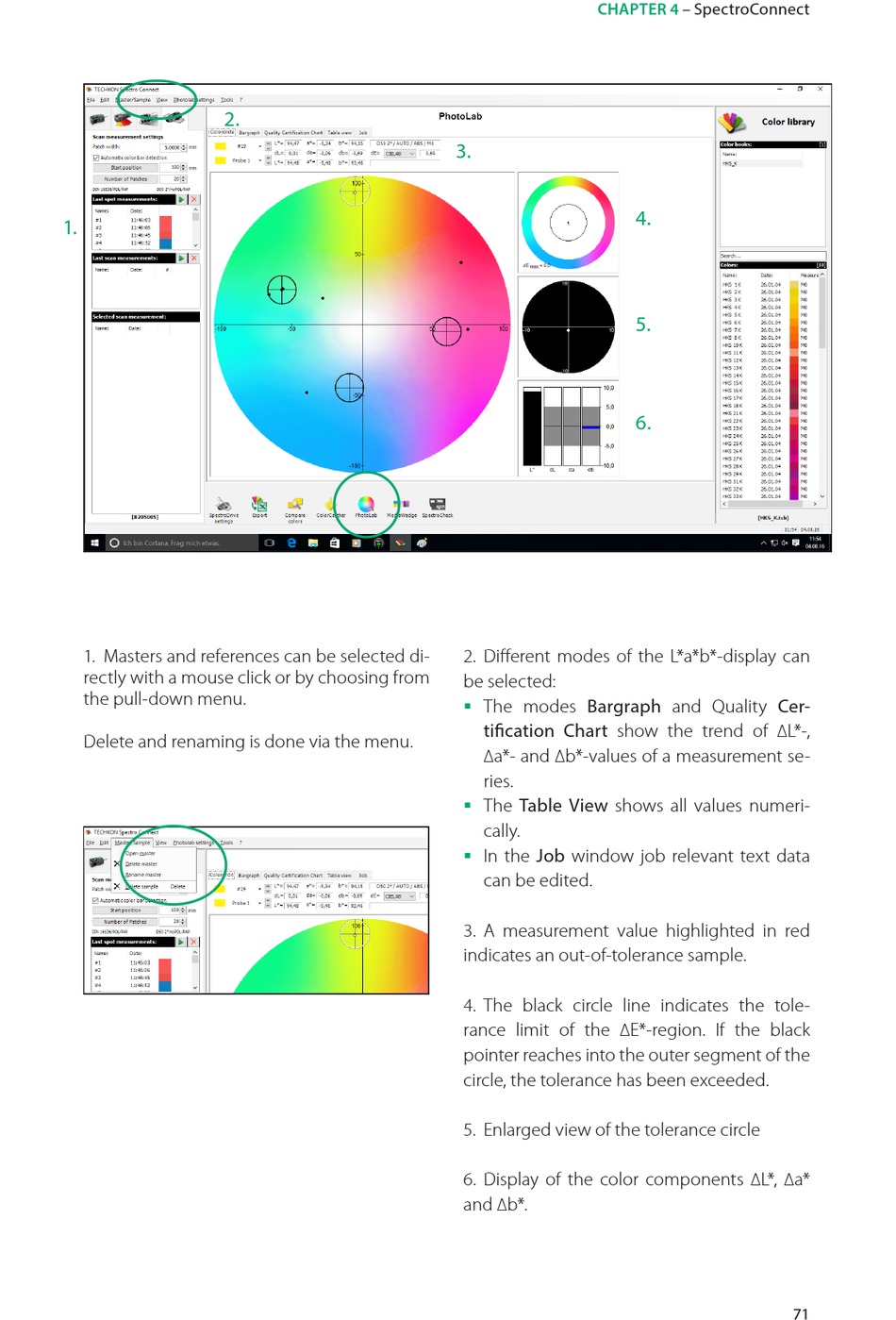

1. Masters and references can be selected di-
rectly with a mouse click or by choosing from
the pull-down menu.
Delete and renaming is done via the menu.
CHAPTER 4
3.
2. Different modes of the L*a*b*-display can
be selected:
The modes Bargraph and Quality Cer-

tification Chart show the trend of ∆L*-,
∆a*- and ∆b*-values of a measurement se-
ries.
The Table View shows all values numeri-

cally.
In the Job window job relevant text data

can be edited.
3. A measurement value highlighted in red
indicates an out-of-tolerance sample.
4. The black circle line indicates the tole-
rance limit of the ∆E*-region. If the black
pointer reaches into the outer segment of the
circle, the tolerance has been exceeded.
5. Enlarged view of the tolerance circle
6. Display of the color components ∆L*, ∆a*
and ∆b*.
– SpectroConnect
4.
5.
6.
