Draper 300213 Installation Instructions

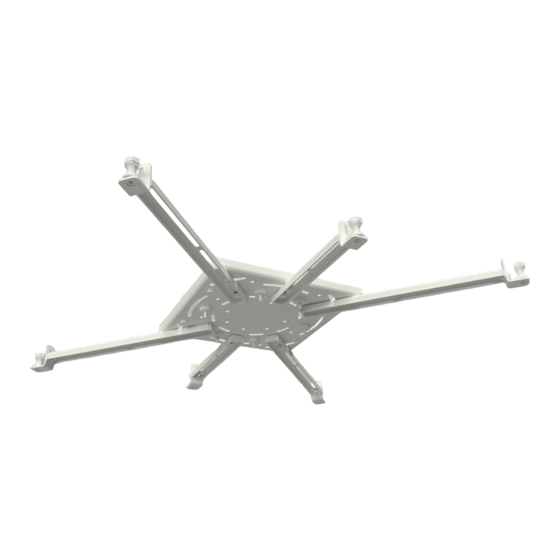

Medium Universal Projector Mount

Section 1 - Assembling the Universal Projector Mount

1. Determine the number of mounting points required for the projector and the distance between them.
Section 1.1 - Small Projectors
1. Secure projector to universal mounting plate by inserting the ¼-20 x ¾" bolts through any of the provided
holes, then nylon spacers and then thread directly into projector mounting holes
Section 1.2 - Large Projectors
Each universal projector mount has eight
1. One adjustable arm will be used per mounting point. Attach the adjustable foot to the end of each adjustable
arm using the provided hardware
2. Secure each of the adjustable arms to the universal mounting plate by threading two
bolts (with washers) through the provided slots in each of the Adjustable Arms, then through the universal
mounting plate (see Figure 2-B
¼-20 Lock Nut
(2 per arm)
Adjustable Arms
(Number required will vary
depending on projector used)
Washer
(2 per arm)
¼-20 x ¾" Bolt
(2 per arm)

Section 2 - Attaching Universal Projector Mount to Projector Plate

1. Remove the projector plate from the projector lift prior to installing the universal projector mount.
2. Thread four (4) ¼-20 x 2¼" bolts with washer through the provided holes in the universal mount plate, then through the four
then through the provided holes in the projector plate. Secure the assembly together using the four
Figure 3
(mounting points less than 12" [30.5cm] apart)
(mounting points greater than 12" [30.5cm] apart)
(8) adjustable arms included: 4 Long and 4 Short.
(see Fig 2-A)
below). Secure with provided ¼-20 lock nuts.
¼-20 Acorn Nuts (4)
Washer (4)
(see Figure 1 at right).
(2) of the ¼-20 x ¾"
Figure 2-B
Universal
Mounting
Plate
(4)
Please note: SLX Projector plate shown in Figure 3.
Compression
Spring (4)
¼-20 x 2¼" Bolt (4)
© 2019 All Rights Reserved
INSTALLATION
INSTRUCTIONS
Figure 1
Universal
Mounting
Plate
Assembling Adjustable Arms
Adjustable
Arm
Figure 2-A
Universal Mount with Arms Attached
(4) compression springs,
¼-20 acorn nuts. (See Figure 3).
An identical procedure is used for attaching
the Universal Projector Mount to provided
holes in Scissor Lift and AeroLift 100 / 150
projector plates.
Universal Mount Attached to Projector Plate
If you have any difficulties installing or servicing your
Universal Projector Mount, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: MED_UniversalProjectorMount_Inst19
¼-20 x ¾" Bolt
Nylon
Spacer
Adjustable
Foot
Washer
Split Lock
Washer
Hex Screw
