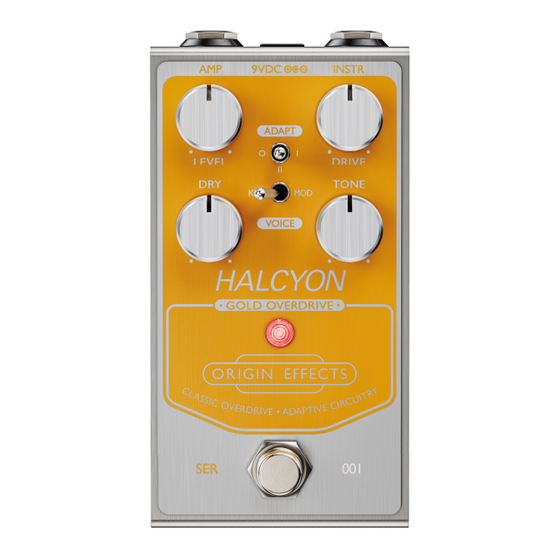

Origin Effects HALCYON GOLD OVERDRIVE Owner's Manual

Hide thumbs Also See for HALCYON GOLD OVERDRIVE:
Table of Contents

Advertisement

Quick Links

Download this manual

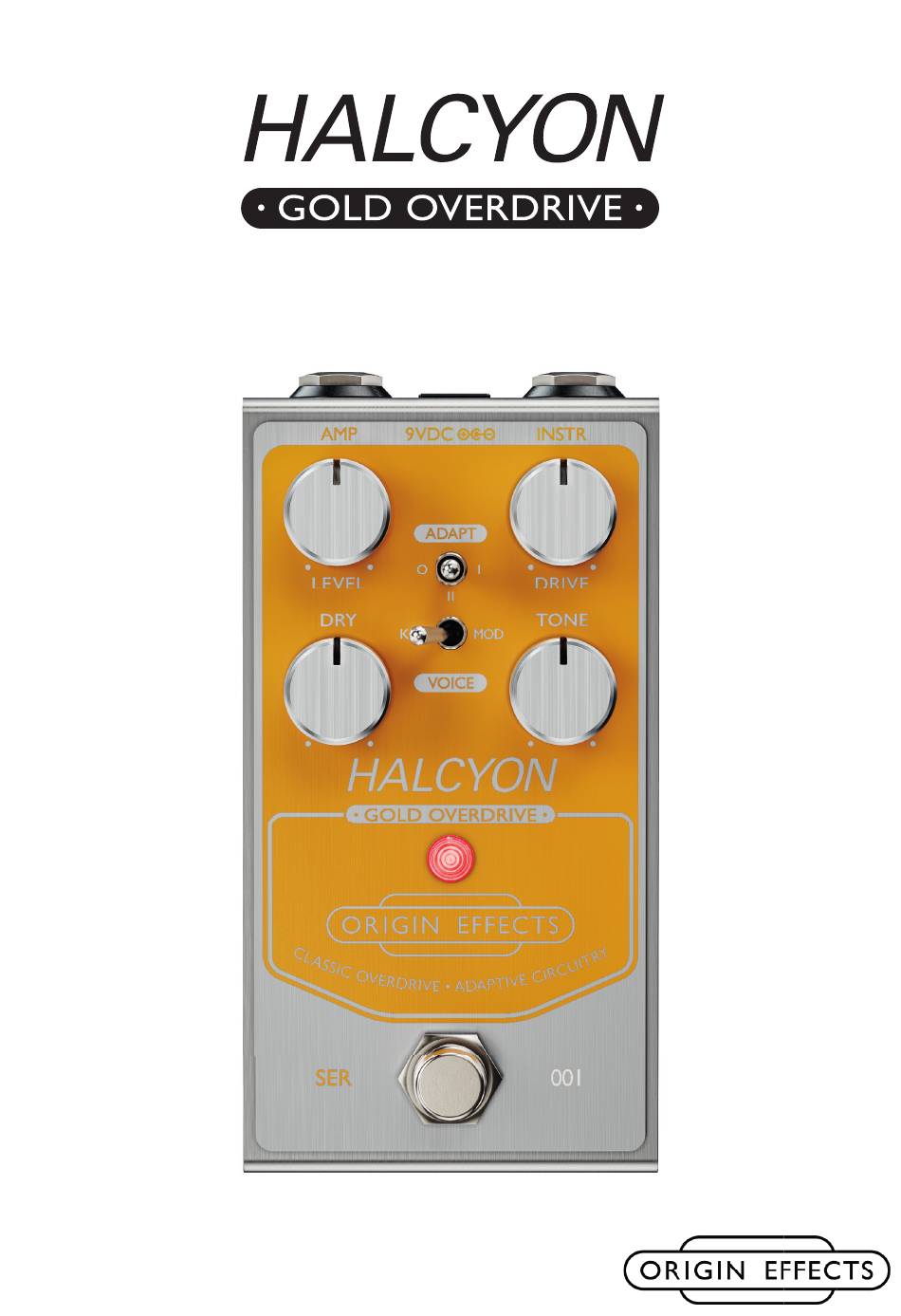

OWNER'S MANUAL
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HALCYON GOLD OVERDRIVE and is the answer not in the manual?

Questions and answers

Related Manuals for Origin Effects HALCYON GOLD OVERDRIVE

Summary of Contents for Origin Effects HALCYON GOLD OVERDRIVE

  • Page 1 OWNER’S MANUAL Version 1.0...
  • Page 2 ORIGIN EFFECTS is a trademark of Origin E ects Limited and is a registered trademark in the United States, United Kingdom and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin E ects Limited and is a registered trademark in the United States and United Kingdom.

  • Page 3: Table Of Contents

    Introducing the Halcyon Gold Overdrive ........

  • Page 4: Introducing The Halcyon Gold Overdrive

    Introducing the HALCYON GOLD OVERDRIVE The Halcyon Gold Overdrive is a versatile drive pedal featuring our proprietary Adaptive Circuitry. This unique design allows it to adapt its voicing in response to pick attack and volume changes, making it one of the most dynamic and interactive overdrives out there.

  • Page 5: Connecting The Halcyon Gold Overdrive

    Origin E ects Halcyon Gold Overdrive Connecting the HALCYON GOLD OVERDRIVE 9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 200mA). INSTR: Connect to your guitar. AMP: Connect to your amp or modeller. Controls ADAPT SWITCH: This enables the Adaptive Circuitry, allowing the pedal’s mid-forward voicing to gradually fade away as the pedal cleans up.
  • Page 6 Origin E ects Halcyon Gold Overdrive Controls (continued) ADAPT SWITCH (suggestion): To hear the ADAPT switch in action, set the DRIVE above 10 o’clock, select Position II, play some licks, then roll down your guitar volume to a clean tone and select Position O. You will hear a big di erence between the adaptive and stock clean tones! ®...

  • Page 7: Sample Settings

    Origin E ects Halcyon Gold Overdrive Sample Settings CLEAN BOOST GOLD STANDARD The ultimate clean boost. This tone balances a tight The mid-forward drive tone that defined boutique low end with a natural high end response and stacks overdrive, now with Adaptive Circuitry! The mid well with other pedals.

  • Page 8: Appendix A: Physical Specification

    Origin E ects Halcyon Gold Overdrive Appendix A: Physical Specification Measurement Unboxed Boxed Weight 500g (18oz) 570g (20oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value 1M Ω...

  • Page 9: Appendix D: Safety Notices

    (including amplifi ers) that produce heat. Refer all servicing to qualifi ed service personnel. When using an external power supply, use only attachments/accessories specifi ed by Origin Effects. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

  • Page 10: Appendix E: Warranty

    Appendix E: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
