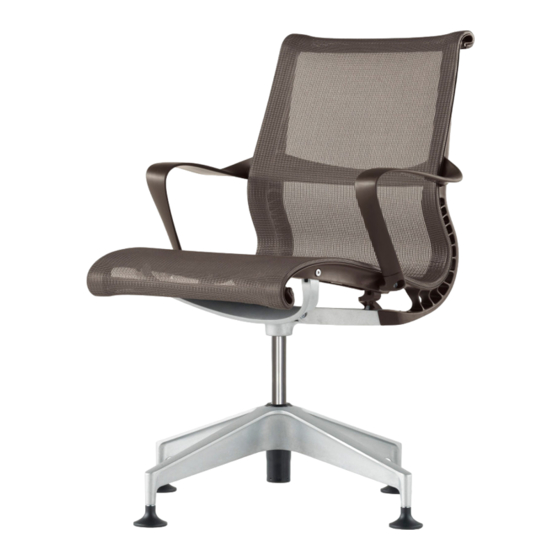

HermanMiller Setu Disassembly Instructions Manual

Y
Tools Needed:
2 lbs Hammer
Power Driver
Materials Identification and Segregation:
Where possible, plastic components are marked with recycling codes. Use these codes to identify material type
for recycling. Non marked components should be treated as mixed plastic. Ferrous metals can be identified using
a small magnet for recycling. Non-ferrous metals should be separated and recycled separately.
Disassembly Steps:
1.1. Lay chair on back.
Z
© 2010 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Action Office, Mirra and Setu are among the registered trademarks of Herman MIller, Inc. Part no. 1b5vn8 rev A.
Vivo® is among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Small Flathead
Screwdriver
1

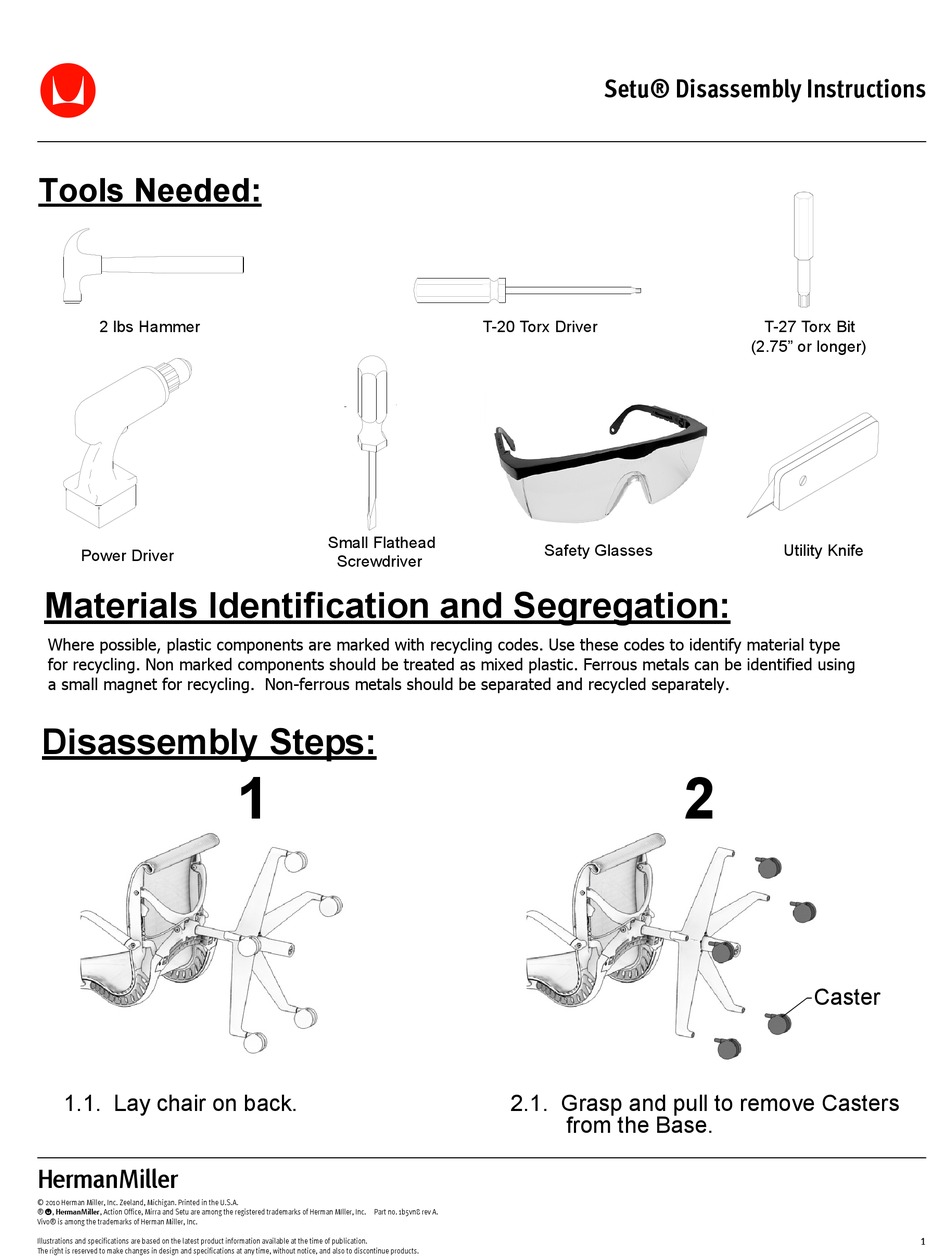

Setu® Disassembly Instructions
T-20 Torx Driver
Safety Glasses
2.1. Grasp and pull to remove Casters
from the Base.
T-27 Torx Bit
(2.75" or longer)
Utility Knife
2
Caster
1
