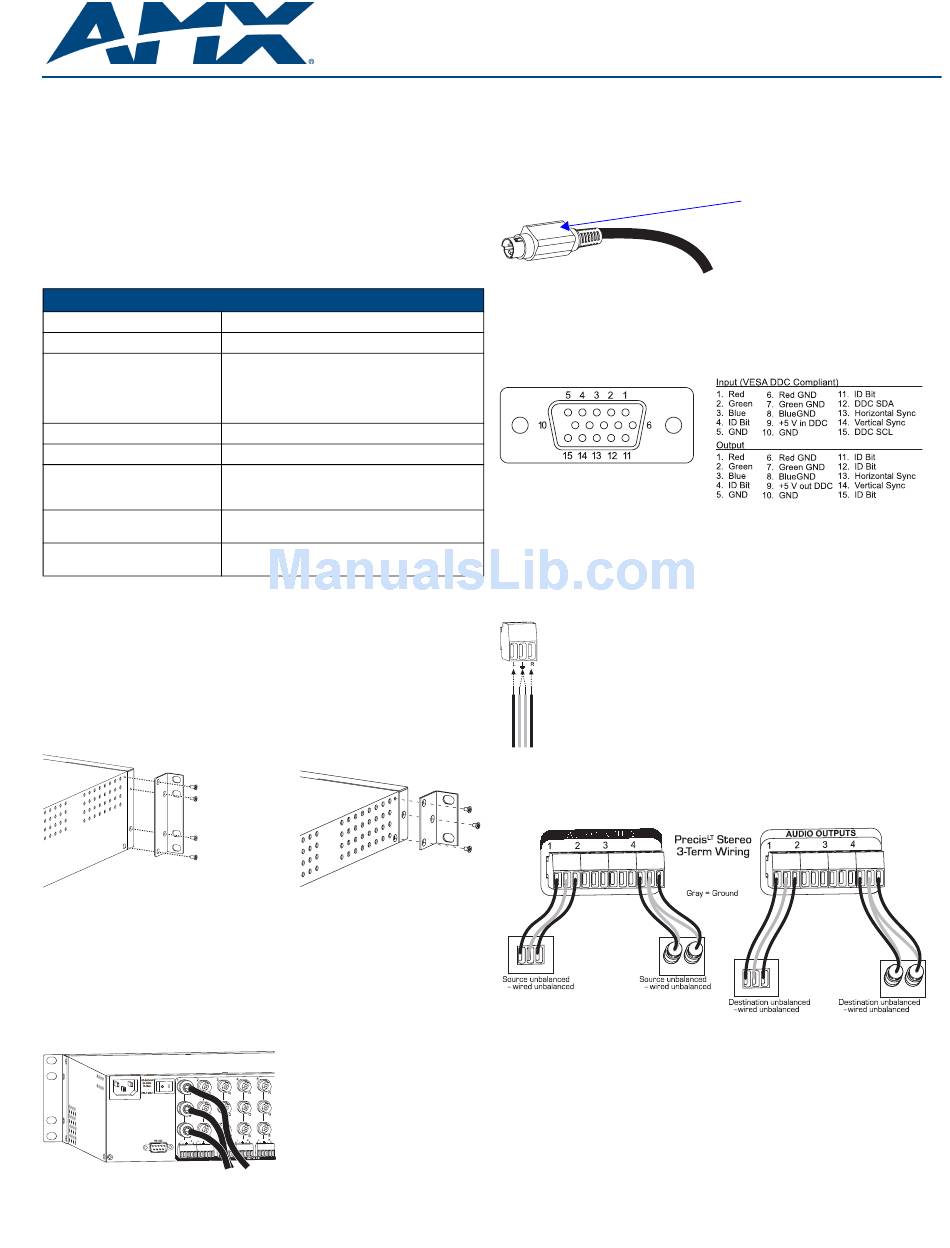

AMX Precis LT Quick Start Manual

Overview
The PrecisLT Distribution Matrix is available in various sizes and board configurations;
therefore the illustrations in this guide may differ from the model(s) you purchased.
The PrecisLT is available in the following models:
• Standard Video & Stereo
• S-Video & Stereo
Configurations available: 4x4, 4x8, 8x4, and 8x8. The PrecisLT Instruction Manual
contains complete documentation for this product; see the AMX AutoPatch Software &
Documentation CD or visit www.amx.com.
General Specifications
Specifications
Approvals
AC Power
Power Consumption per enclosure:
Standard Video & Stereo
S-Video & Stereo
Component Video & Stereo
RGBHV/HD-15 & Stereo
Operational Temperature
Humidity
Dimensions (depth & width)
Height
Weight per enclosure
Installation
ESD Warning: Avoid ESD (Electrostatic Discharge) damage to
sensitive components; be sure you and the enclosure(s) are
properly grounded before touching any internal materials.
Rack Mounting
To rack mount a PrecisLT enclosure:
1. Attach the rack ears as shown in FIG. 1 (screws provided).
2. Install in a rack (we recommend leaving a minimum of one empty rack unit
above and below).
FIG. 1 Attach 2 RU rack ears
Attaching Input & Output Cables/Wires
Attach sources and destinations to the PrecisLT according to the labels on the
enclosure.
Standard & Component Video – BNC
Video BNC connectors are used for standard and component video. Component
signals (e.g., Y/Pb/Pr) require more than one BNC connection. The example in FIG. 2
shows three BNC cable connectors attached for routing a three-component signal as
Input 1.
FIG. 2 Three BNC connectors are required for a three-component signal
AutoPatch Precis
• Component Video & Stereo
• RGBHV/HD-15 & Stereo
CE, UL, cUL
100 - 240 VAC single phase (50 - 60 Hz)
35 Watts (max.), 15 Watts (typical)
35 Watts (max.), 15 Watts (typical)
60 Watts (max.), 25 Watts (typical)
60 Watts (max.), 25 Watts (typical)
32° - 110° F (0° - 43° C)
0 to 90% non-condensing
10.4 in. (26.42 cm) depth
19.0 in. (48.26 cm) width with mounting ears
17.4 in. (44.20 cm) width without mounting ears
1 RU Models: 1.7 in. (4.32 cm)
2 RU Models: 3.5 in. (8.89 cm)
1 RU Models: Approx. 7.0 lb. (3.18 kg)
2 RU Models: Approx. 10.5 lb. (4.75 kg)
Attach 1 RU rack ears
Distribution Matrix
LT
S-Video
AutoPatch S-Video cables lock on to S-Video connectors. Standard S-Video cables
may be used, but will not lock.
To fasten a locking S-Video connector:
the right while pushing in or pull back on the connector housing while pushing the
connector in.
FIG. 3 Pull back on connector housing while pushing in
RGBHV/HD-15
RGBHV/HD-15 connectors use the pinouts in FIG. 4.
FIG. 4 HD-15 input and output board connector pinouts
Note: 55 mA supplied on output pin 9; power draw not to exceed 50 mA per port.
Stereo Audio – 3-Term (RGBHV/HD-15 Model Only)
Three-position terminal block connectors are wired for unbalanced (single-ended)
stereo audio (see FIG. 5).
FIG. 5 Insert the wires and re-tighten clamps
More than one of the options shown in FIG. 6 can be used in the same system.
FIG. 6 Options for source-to-PrecisLT-to-destination 3-Term wiring
Quick Start Guide
hold the connector at a slight angle to
Connector housing
