Summary of Contents for ElectrIQ EAP300PM2.5HC

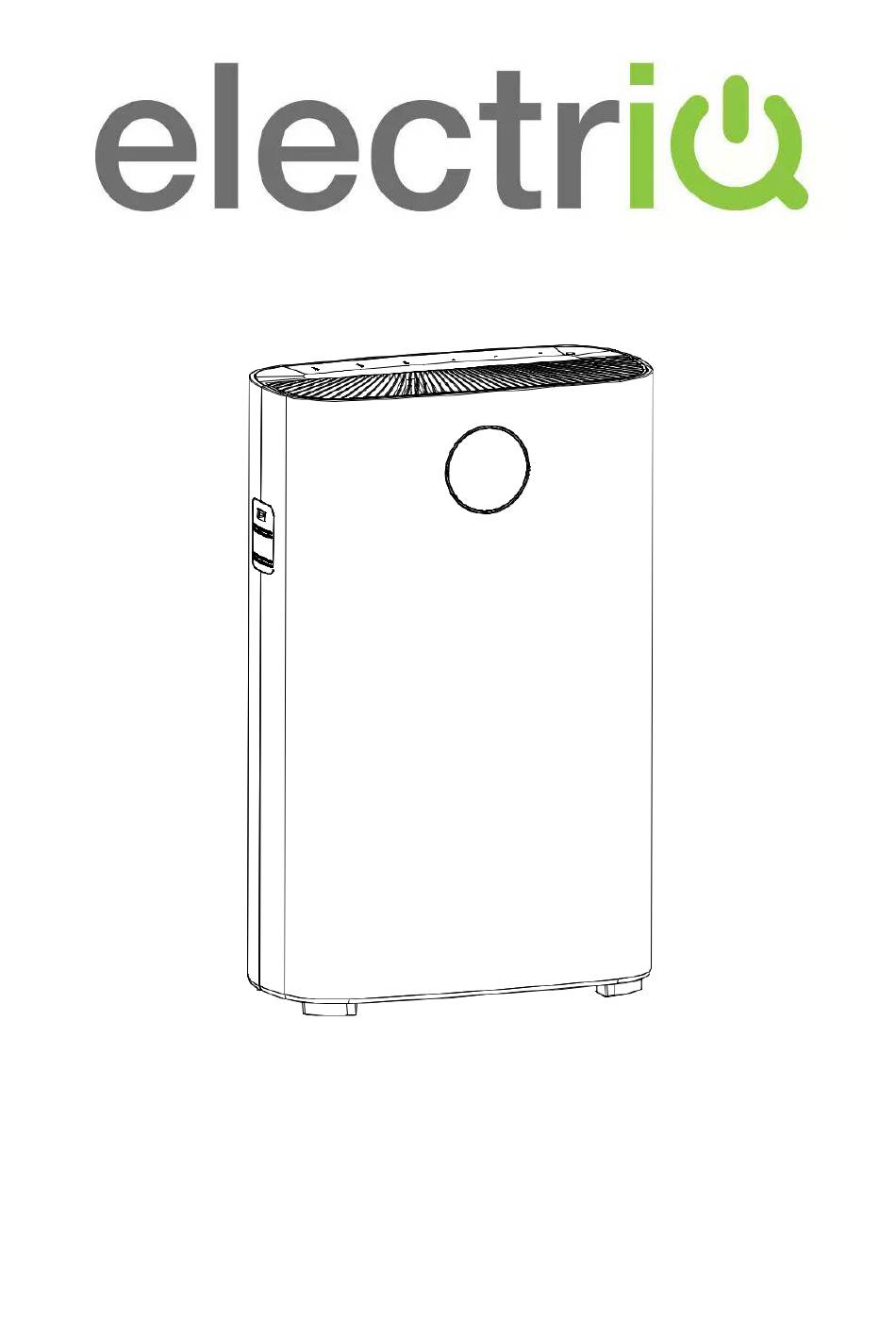

- Page 1 USER MANUAL EAP300PM2.5HC Thank you for choosing electriQ Please read this user manual before using this innovative Air Purifier and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS AIR PURIFIER DIAGRAM ABOUT YOUR AIR PURIFIER INFORMATION ON INDOOR POLLUTANTS OPERATION INSTRUCTIONS BEFORE FIRST USE CONTROL PANEL FRONT DISPLAY CARE AND MAINTENANCE CLEANING THE PRE_FILTER AND FILTER HOLDING AREA CHANGING THE FILTERS CLEANING THE AIR QUALITY SENSOR CLEANING THE CASE CLEANING THE FILTER COVER AND CLEAN AIR OUTLET TECHNICAL SPECIFICATION... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit. • This appliance is for indoor use only. • This unit must only be connected to a 220-240V / 50Hz outlet. • Installation must be in accordance with regulations of the country where the unit is used. - Page 4 • Avoid removing the power cord from the socket whilst the unit is still in operation. This could cause electrical damage. • Never use the power supply as a switch to start and turn off the air purifier. Use the provided ON/OFF button located on the control panel. •...
-
Page 5: Air Purifier Diagram
AIR PURIFIER DIAGRAM Air Outlet Air Quality Handle Indicator Air Quality Sensor Air Inlet Back Cover Power Cord Ambient HEPA Light Sensor Filter Activated Carbon Filter Pre-Filter Air Inlet Panel... -
Page 6: About Your Air Purifier
• Activated carbon filter removes unpleasant odours and absorbs harmful substances such as formaldehydes and benzenes. The EAP300PM2.5HC also features a PM2.5 air quality sensor and a front facing display. The display provides information on the air quality, temperature and humidity of the air within the room. -
Page 7: Information On Indoor Pollutants
The antibacterial activated carbon on the EAP300PM2.5HC is a natural material biosynthesized from walnut shell, the absorption area of activated carbon is very large at up to 300,000 square meters. -
Page 8: Operation Instructions
OPERATION INSTRUCTIONS BEFORE FIRST USE: 1) Unpack the appliance and remove the filter cover from the rear of the unit, by gently pulling the Air inlet panel back and then lifting off the unit. 2) Remove the three filters from the rear of the unit. -
Page 9: Control Panel
CONTROL PANEL SPEED TIMER MODE DISPLAY/LOCK RESET ON/OFF Press to turn the appliance on and off. ON/OFF Press to change between the four fan speeds. The indicators will show the currently selected fan speed. When all three indicators are on, the unit is in Turbo mode. -
Page 10: Front Display
FRONT DISPLAY The unit utilises a PM2.5 sensor to measure the air quality. When turning on the unit will take around 90 seconds before showing the air quality on the screen. The front indicator will alternate between showing the air quality, humidity and temperature. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE • Always shut off the unit and unplug from the mains before cleaning or performing any maintenance. • When the unit is not in use for long periods, it is advisable to remove the plug from the power socket. -
Page 12: Cleaning The Air Quality Sensor
CLEANING THE AIR QUALITY SENSOR • Remove the cover from the sensor, checking for any signs of blockage in the holes. Any blockages should be removed using a soft brush. • Wipe the sensor and air inlet/outlets with a damp cotton bud. -
Page 13: Technical Specification
TECHNICAL SPECIFICATION Input power 220-240V, 50/60Hz Rated power 30 W Net Weight 7 Kg Gross Weight 8.8 Kg Dimensions 410 x 210 x 635mm Fan speeds Low / Medium / High / Turbo Airflow 310 m TROUBLESHOOTING ISSUE CHECK Check that the unit is plugged in Not working Ensure that the filters and filter cover are correctly installed. -
Page 14: Support
UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, check the troubleshooting guide before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
