cecotec PerfectSteak 4250 Stand Instruction Manual page 14

ENGLISH

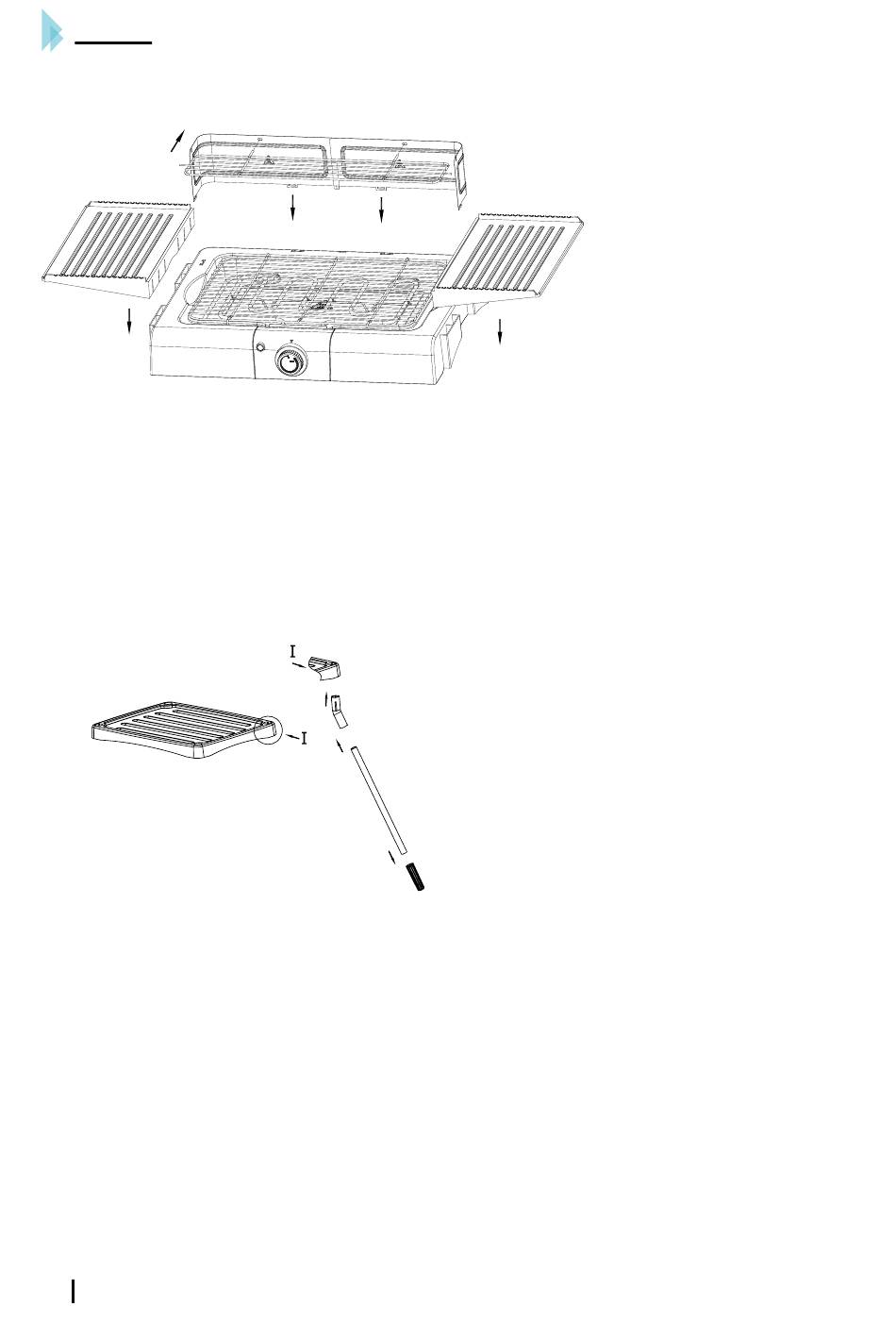

5. Introduce the side trays in the side guides as it is shown on figure 2. Press slightly until they
are properly fixed.
6. Introduce the containment perimeters in the back guides as it is shown on figure 2. Press
slightly until they are properly fixed.
7. Introduce one of the lower legs into one of the tube connectors' ends until it is properly
fixed. Repeat this step with the 3 other lower legs.
8. Once all the lower legs are fitted into the connector tubes, introduce one of the free tube
connector ends into the lower tray. Repeat this step with the 3 other tube connectors.
9. Introduce the upper legs in the holes situated on the top part of the lower tray. Repeat this
step with the 3 other upper legs and make sure they are properly fixed.
14 PERFECTSTEAK 4250 STAND
2
3
