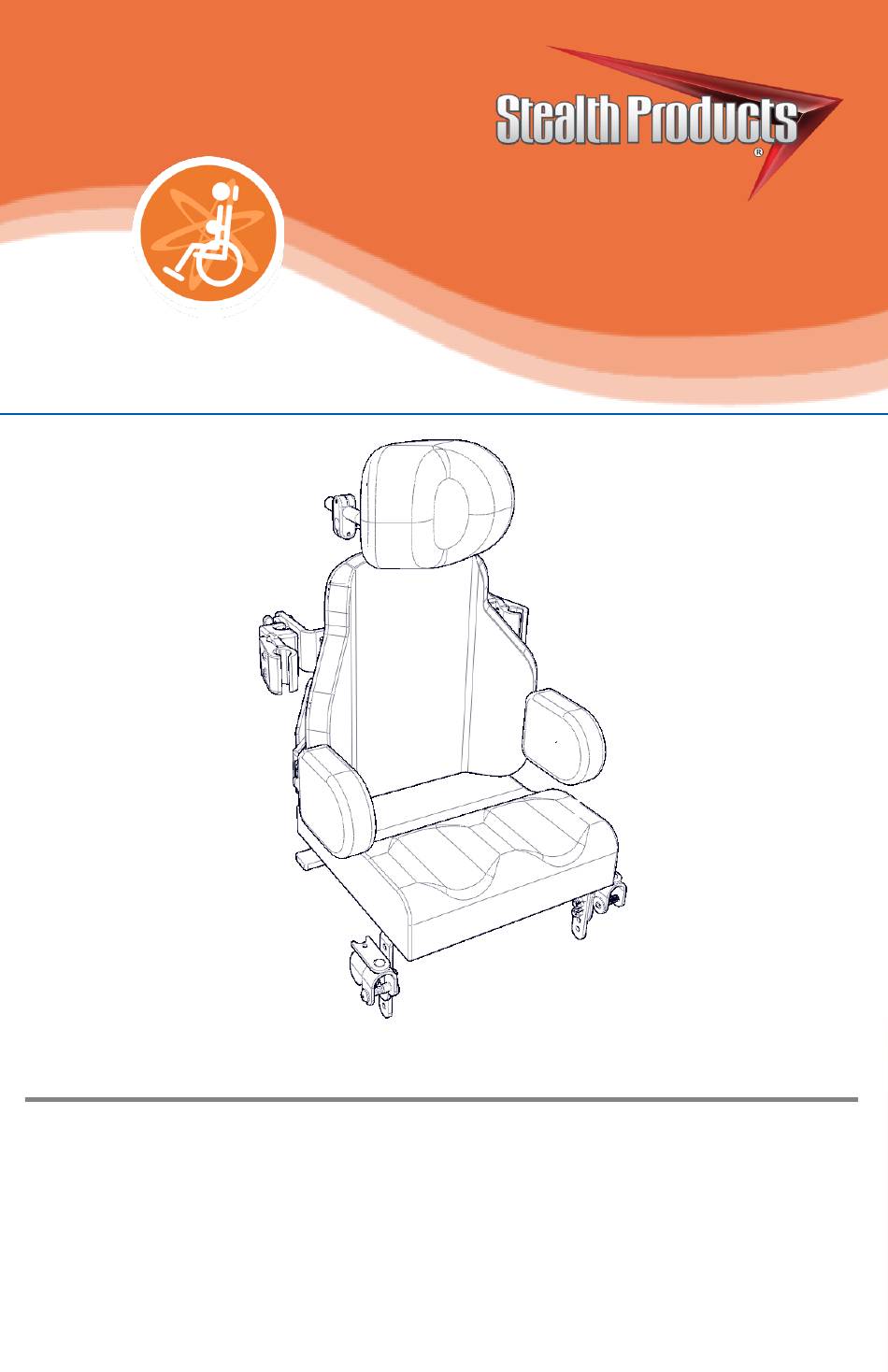

- Page 1 Backs and Support OWNER’S MANUAL Diego Seating System Diego Seating System Owner’s Manual...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes to help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC... - Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used succesfully, you must: •...
-
Page 4: Introduction
They also contain important safety and maintenance information and describe possible problems that may arise during use. For further assistance or more advanced applications, please contact your supplier or Stealth Products, LLC at (512) 715-9995 or toll free at (800) 965-9229. -
Page 5: Warranty
Any lack or alteration of serial number, where applicable, will automatically void this warranty. Stealth Products, LLC is liable for replacement parts only. Stealth Products, LLC is not liable for any incurred labor costs. No person is authorized to alter, extend, or waive the warranties of Stealth Products, LLC. -
Page 6: Table Of Contents
Table of Contents 1.0 Customer Satisfaction ................. i 2.0 Important Information ................ii 3.0 Introduction ....................iii 4.0 Warranty ..................... iv 5.0 Table of Contents ..................v 6.0 Warning Labels ..................vii 6.1 Warning Labels ......................vii 6.2 Limited Liability ......................vii 6.3 Testing ..........................vii 7.0 Design and Function ................... - Page 7 Table of Contents 9.10 Cane Compatibility ....................12 9.11 Attaching Clamps to Wheelchair Back Canes..........12 10.0 WC20 Information .................. 13 10.1 WC20 FlipLock Hardware ..................13 10.2 Before Transit ......................13 10.3 Belt Placement ......................14 10.4 User Safety ........................ 17 11.0 First-Time Use ..................
-
Page 8: Warning Labels
Stealth Products, LLC does not hold responsibility for final integration or final assembly of product to end user. Stealth Products, LLC is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 9: Design And Function
Design and Function Intended Use The Diego System is designed for the individual who needs a solid back to support minimal deformities or stability needs, and who requires minimal to moderate postural support and improved trunk/pelvic positioning. The Diego System combines all of the features and benefits of individual components into a complete seating system for optimal postural support, skin care and portability. -
Page 10: Parts And Accessories Breakdown
Features Parts and Accessories Breakdown A full Diego Seating System includes: 1. Back • Composed of an aluminum frame with a CoolCore-covered dual-layer foam cushion 2. Mounting Hardware • Features FlipLock Back Mounting Hardware for quick-release removal of back from canes 3. -
Page 11: Back Dimensions
Features Back Dimensions Height Width Part Number Min. Width Max. Width Height DGBAL1010AC 9” 11” 10” DGBAL1012AC 9” 11” 12” DGBAL1212AC 11” 13” 12” DGBAL1214AC 11” 13” 14” DGBAL1414AC 13” 15” 14” DGBAL1416AC 13” 15” 16”... -
Page 12: Installation Instructions
Installation Instructions... -
Page 13: Hardware Parts
Parts and Accessories Hardware Parts Description Qty. Headrest Comfort Plus 6” or 8” Headrest Back Support Diego Back Support Lateral Supports Swing-Away or Fixed Lateral Supports Mounting Hardware FlipLock Mounting Hardware Seat Diego Seat Cushion Seat Hardware J+L Seat Mounting Hardware... -
Page 14: Preparation
Set up an installation plan before beginning the installation. This plan should take into account: • Where the Diego Seating System will be placed as well as applicable laterals and support cushions. • How the Diego Seating System will be operated, including the quick-release functions for the mount and laterals. -
Page 15: Required Tools/ Torque Chart
Installation Instructions Required Tools Below are the tools needed to complete the installation of the laterals: Hardware Component Use 3mm Hex Key Lateral Cushion Mount (G8); Socket Head Screw on Lateral (F5) 4mm Hex Key Button Head Screws on Lateral Bracket (E1) CAUTION ADDITIONAL TOOLS REQUIRED FOR OTHER HARDWARE ARE LISTED IN THE INSTALLATION INSTRUCTIONS OF THE SEPARATE HARDWARE MANUALS. -
Page 16: Installing The Laterals
Installation Instructions Installing the Laterals Step One: Place the Q-back lateral track nut into the groove of the 125° lateral bracket. Step Two: Slide the 125° lateral bracket between the aluminum and covered foam back. - The depth that the bracket is placed can be adjusted to change the horizontal placement of the lateral to the appropriate position for the user. -
Page 17: Installing The Headrest To Back
Installation Instructions Installing the Headrest to Back Step One: Align the holes on the seat back mount with the mounting holes of the back. Step Two: Use the M6 x 1 x 16mm button head screws with the M6 x 1 nylon lock nut. Tighten to 10nM of torque. -
Page 18: Seat To Back Mount
Installation Instructions Seat-to-Back Mount Step One: Align the seat-to-back mount holes with the mounting holes of back. Step Two: Tighten the M6 x 1 x 16mm button head screws, each with a washer, to the lateral track nut. Tighten to 10nM of torque. Ensure the button head screws are installed from the inside of the back to prevent discomfort to the user. -
Page 19: Seat Pan
Installation Instructions Seat Pan Step One: Align the seat-to-back mount holes with the mounting holes of the seat pan. Tighten the M6 x 1 x 16mm button head screws, each with a washer, to the lateral track nut. Tighten to 10nM of torque. Step Two: Tigthen the M6 x 1 x 16mm button head screws, each with a washer, to the spacer by using M6 lock nuts. -
Page 20: Cane Compatibility
Installation Instructions Cane Compatibility 9.10 The FlipLock hardware mounts to multiple diameter cane clamps without the use of spacers. • Hardware is compatible with 1in., 3/4in., and 7/8in. cane diameters. 1” Clamp 7/8” Clamp 3/4” Clamp... -
Page 21: Attaching Clamps To Wheelchair Back Canes
Attaching Clamps to Wheelchair Back Canes 9.11 Step One: Visually determine the desired height of the Diego back. Mark on each back cane the location necessary to attach the clamp assemblies. Step Two: Loosen the M5 x 0.8 x 25mm socket head cap screws (D8) and with two fingers, pinch and hold the back of the cane clamp to open in order to slide the clamp assembly over the top of the back cane (receiving cane facing inward). -
Page 22: Wc20 Information
The Diego System’s FlipLock hardware has met WC20 and ISO16840-4 requirements and provisions. CAUTION The WC20-approved FlipLock hardware and Diego back should only be used as detailed in these instructions. WC20 establishes design/performance requirements and test methods for complete seating systems (i.e., consisting of a seat, back support, and attachment hardware) as they relate to their use as seats in motor vehicles. -
Page 23: Belt Placement
WC20 Information 10.0 DANGER The WC20-approved FlipLock hardware and Diego back have been designed to accommodate the proper use of vehicle-anchored belt restraints and the ratings of the seating systems, with regard to a) ease of properly positioning vehicle-anchored belt restraints on the wheelchair passenger, and b) the degree to which proper positioning of belt restraints can be achieved. - Page 24 WC20 Information 10.0 CAUTION Belt restraints should be adjusted to fit as snugly as possible, consistent with user comfort. SAFETY Belt restraints should not be worn twisted in a manner that reduces the area of contact of the belt webbing with the occupant.
- Page 25 WC20 Information 10.0 Both pelvic-belt and shoulder-belt restraints that comply with RESNA WC-4:2012, Section 18 and/or 4.6, 5.2, 5.3 or RESNA WC-4:2012, Section 19 should be used to limit occupant movement in a crash and reduce the likelihood of occupant ejection from the vehicle and/or injurious contact of the occupant with the vehicle interior.
-
Page 26: User Safety
WC20 Information 10.0 Trays Wheelchair-mounted rigid trays that are not specifically designed for use during travel in motor vehicles should be: • removed and secured separately in the vehicle; or • secured to the wheelchair so they will not break free in a crash; •... - Page 27 Dimensions in pictures measured in millimeters When mounting the WC20-approved FlipLock hardware to your Diego back, refer to the installation instructions starting on page 4. Torque specifications for the hardware are listed in the Installation Instructions section on page 7.
-
Page 28: First-Time Use
User Testing 11.2 It is important that the customer be fully aware of the installation of the Diego Seating System, including how to use it and how it can be adjusted to fit the client comfortably. As a dealer, proceed as follows: •... -
Page 29: Maintenance
Maintenance 12.0 Cleaning 12.1 • Use a soft cloth to clean the back shell. • Ensure all cleaners are approved for finished steel, aluminum, plastic, and upholstered surfaces. • To wash the cover, remove from the foam and back. Do not get the foam wet. •... -
Page 30: Disinfecting
Maintenance 12.0 Disinfecting 12.2 • Wipe gently with a cloth dampened with a household disinfectant. Do not immerse foam in water. WARNING Maintenance 12.3 The following care and guideline instructions will keep hardware and covers in good condition for a longer period of time and prevent damage: •... -
Page 31: Notes
Notes 13.0... - Page 32 Notes 13.0...
- Page 33 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 Revision Date 2019-01-30 P130D576 -- Diego Back Owner's Manual...
