- Page 1 Alternative Drive Mounting Hardware USER MANUAL IDCH Stealth’s User Manual and Maintenance Guide for the i-Drive Control Harness...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC... - Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...
-
Page 4: Introduction
For further assistance or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at 1-800-965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 5: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 6: Table Of Contents
7.0 Design and Function ................1 7.1 Intended Use ......................1 7.2 Features ........................1 7.3 Mounting ......................... 1 8.0 Parts and Accessories ................2 8.1 IDCH Package ......................2 8.2 IDCH Accessories....................3 8.3 IDCH Replacement Parts .................. 4 8.4 Accessories ......................6... - Page 7 Table of Contents 9.0 Mounting ....................8 10.0 Features ....................11 10.1 Adjustment....................... 11 11.0 Installation Instructions ..............14 11.1 Tools ......................... 14 11.2 Installation Plan .................... 14 11.3 Joystick Installation ..................14 11.4 Installation ...................... 15 12.0 First Time Use ..................16 12.1 Dealer Assistance ...................
-
Page 8: Warning Labels
SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 9: Design And Function

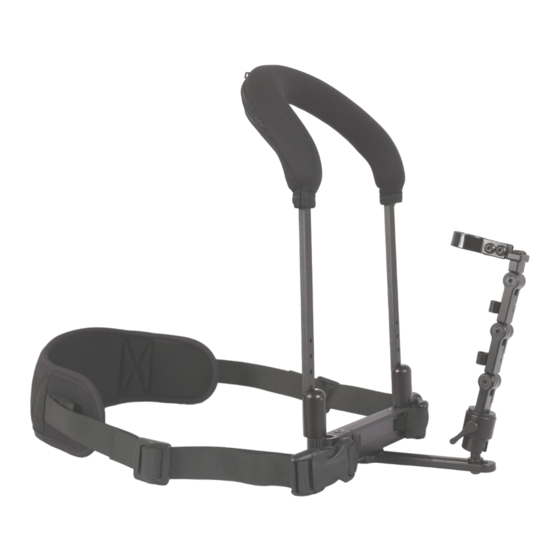

Height, depth, and angle changes available through easily adjustable tracks, swivel mounts, and links. Twister switches and fiber optics can be attached to the IDCH using Loc-Line as an additional accessory. An i-Fit body securement belt, supplied in each order, ensures the IDCH remains secure and stable. -
Page 10: Parts And Accessories
Medium i-Drive Control Harness IDCH-M Large i-Drive Control Harness IDCH-L i-Drive Control Harness Standard Belt IDCH-SB (standard for Pediatric, Small, and Medium IDCH sizes)* i-Drive Control Harness IDCH-XLB* (standard for Large IDCH) Extra Large Belt * All belts are universal... -
Page 11: Idch Accessories
Parts and Accessories IDCH Accessories The IDCH accessories include switches and fiber-optics on Loc-Line. The part numbers/ descriptions are as follows: Product Description Part Number IDCH-A1L Left Side Single Twister Basic Button on Loc-Line– Specify Color *See colors below Right Side Single Twister Basic IDCH-A2R Button on Loc-Line–... -
Page 12: Idch Replacement Parts
Parts and Accessories IDCH Replacement Parts Additional/Replacement parts can be ordered if necessary. The part numbers descriptions are as follows: Product Description Part Number Additional Link for Harness IDCH-LINK Replacement Cover for IDCH-PC Control Harness IDCH-SC IDCH-MC IDCH-LC 6” Loc-Line for Mounting... - Page 13 Parts and Accessories Pediatric i-Drive Control Harness Collar IDCH-PNC Small i-Drive Control Harness Collar IDCH-SNC Medium i-Drive Control Harness Collar IDCH-MNC Large i-Drive Control Harness Collar IDCH-LNC Mount for IDM-MULTI-9 & IDPMP-1,9 IDCH-JM01 Mount for IDM-MICRO-9 IDCH-JM02...
-
Page 14: Accessories
Medium 36” 66” Large Additional Link for IDCH (IDCH-LINK) If additional height is required for proper positioning, the IDCH-LINK can be ordered and easily attached. 3/4” An additional link will provide 1 of adjustment. * Measurements are approximate... - Page 15 Parts and Accessories Loc-Line with Twister Basic Button/Fiber Optic Switch Switches, attached by Loc-Line tubing, can be ordered for the IDCH. Approximately 12in. of Loc-Line is provided. Loc-Line will be secured via M5 x .8 x 25mm SHS & M5 locknuts and share the same track as the swivel mount.
-
Page 16: Mounting
Use the four screws provided in the Multi Accessory Pack to mount the joystick. The screws will travel through the joystick mount on the IDCH and into the base of the Multi Joystick. USB ports should be oriented to the client’s right side for standard configuration of... - Page 17 Use the screws provided in the IDCH kit to mount the IDPMP joystick. Screws will travel through the base of the mount on the IDCH and into the base of the IDPMP joystick. For standard configuration of the joystick, orient the dimple to the front, facing away from the client.
- Page 18 Mounting When mounting a mo-Vis Micro joystick: The Multi/IDPMP mount on the IDCH will be removed. Replace the mount with the i-Drive Control Harness Micro joystick mount. The arrow on the base of the joystick should be pointing away from the client for standard...
-
Page 19: Features
Features 10.0 The IDCH has multiple points of adjustment. The sizes of the IDCH are as follows: To determine the size needed, measure the circumference of the client’s neck. Reference the table below for sizing information. Collar Size Arm Lengths... - Page 20 Features 10.0 Lateral Adjustment & Depth Adjustment Lateral adjustment of the track and joystick mount is determined by the size of the collar. ” of depth adjustment is available for all harnesses. Size Inches of Lateral Adjustment Pediatric 3”...
- Page 21 Features 10.0 Angle & Link Adjustment The swivel link, featured at the base of the joystick mount, offers 360° of adjustment for the user. 90° of adjustment forward and backward provides the client with the ability to move the joystick as close to them as necessary.
-
Page 22: Installation Instructions
Joystick Installation 11.3 To install the mo-Vis Micro, Multi, or Stealth IDPMP joysticks, follow the instructions in the IDCH Installation Manual. To program these joysticks, look at the corresponding user manual, sent with the joystick, and carefully follow the instructions. -
Page 23: Installation
Use the mounting strap to mount the Micro Joystick to the links on the IDCH. Place IDCH on client and make any final adjustments with the joystick and the angle at which it is mounted for the client. ... -
Page 24: First Time Use
First Time Use 12.0 Dealer Assistance 12.1 During first time use by the client, it is advised that the dealer or service technician assists and explains the different configurations to the client. If needed, the dealer can make final adjustments. User Testing 12.2 It is important that the customer is fully aware of the installation, how to use the... -
Page 25: Maintenance
Maintenance 13.0 Care and Maintenance 13.1 We recommend that all products be checked for wear and function on a periodic basis and replaced, if necessary, by a wheelchair professional. Repairs should be done with Stealth parts, fasteners, or items appropriate for the service needed. - Page 26 Notes 14.0...
- Page 27 Notes 14.0...
- Page 28 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P132D399 Revision Date 2019-12-17...
