Positioning & Support
USER MANUAL

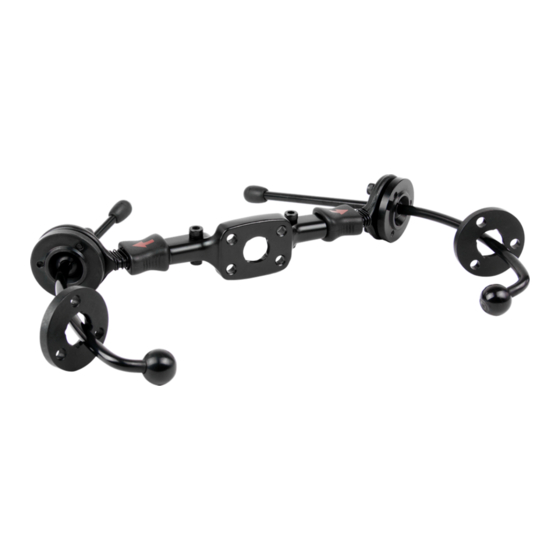

SUS9 Swing Away Series
Stealth's User Manual and Maintenance Guide for
the SUS9 Swing Away Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUS9 Swing Away Series and is the answer not in the manual?

Questions and answers

Related Manuals for Stealth Products SUS9 Swing Away Series

Summary of Contents for Stealth Products SUS9 Swing Away Series

  • Page 1 Positioning & Support USER MANUAL SUS9 Swing Away Series Stealth’s User Manual and Maintenance Guide for the SUS9 Swing Away Series...
  • Page 2 Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC...
  • Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...

  • Page 4: Introduction

    Ordering Documentation You can download additional copies of this User Manual on the Stealth website: https://stlpro.site/stealth-docs and search: SUS9 Swing Away Series User Manual in the search bar at the top of the page.

  • Page 5: Warranty

    Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty.

  • Page 6: Table Of Contents

    Table of Contents 1.0 Customer Satisfaction ................i 2.0 Important Information ................ii 3.0 Introduction ................... iii 4.0 Warranty ....................iv 5.0 Table of Contents ................... v 6.0 Warning Labels ..................vi 6.1 Warning Labels ....................vi 6.2 Limited Liability ....................vi 6.3 Testing........................

  • Page 7: Warning Labels

    SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely.

  • Page 8: Parts And Accessories

    Parts and Accessories Parts Included   10-24 x 1/2” screws, 6 included SU260, 2 included   Shoulder Bolt Screws, 2 included SUS9-E, 2 included   Shoulder Bolt Nuts, 2 included SUS, 1 included SUS9-E SU260 Shoulder Bolt Screws Shoulder Bolt Nut 10-24 x 1/2”...

  • Page 9: Installation Instructions

    Installation Instructions Installing the Mounting Hardware Attach swing away ear pieces (SUS9-E) into designated cut out on the center mounting bracket (SUS). Insert shoulder bolt screws through designated hole, attaching the shoulder bolt nuts and tighten until secure. Adjust socket head screws on ear piece so that the slotted ball expands. Slide facial lateral rods (SU260) through the slotted balls.
  • Page 10 Installation Instructions Slide 17mm steel ball with swing away hardware back into ball receiver. Retighten tapered set screw with 5/32 T-Handle in a clockwise direction. Insert 10-24x 1/2” Socket Head Screws through SUS bracket and into designated threaded holes of headrest bracket. Do not overtighten screws.

  • Page 11: Mounting

    Mounting Mounting Accessories The SUS9 Swing Away system was designed for mounting facial pads, switches, or drive controls. The unique design allows for a 5/32 T-Handle adjust and assemble. To mount accessories to the swing away system: After the swing away system has been mounted to the headrest, loosen the 10-24x 1/2” Socket Head Screws on ear pieces and slide lateral rods with accessory mounting ring into desired position.

  • Page 12: Testing

    Testing 10.0 After installation of the swing away system, execute the following tests before the wheelchair is delivered or put into service:  Check the SUS9 for intactness  Operational Test Check that the SUS9 10.1  Is not bent or damaged. ...

  • Page 13: First Time Use

    First Time Use 11.0 Dealer Assistance 11.1 During first time use by the client, it is advised that the dealer or service technician assists and explains the configurations to the customer (the user and/or the attendant). If needed, the dealer can make final adjustments. User Testing 11.2 It is important that the customer is fully aware of the installation, how to use it,...

  • Page 14: Maintenance

    Maintenance 12.0 Cleaning 12.1  To wash the facial pad cover, remove the cover from the pad, machine wash in cold water on delicate cycle and drip dry. Do not put foam in the dryer. CAUTION Monthly 12.2  Check the hardware for loose screws or worn parts. Replace or repair parts as needed. ...
  • Page 15 NOTES 13.0...
  • Page 16 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P91D274 Revision Date 2019-12-17...
