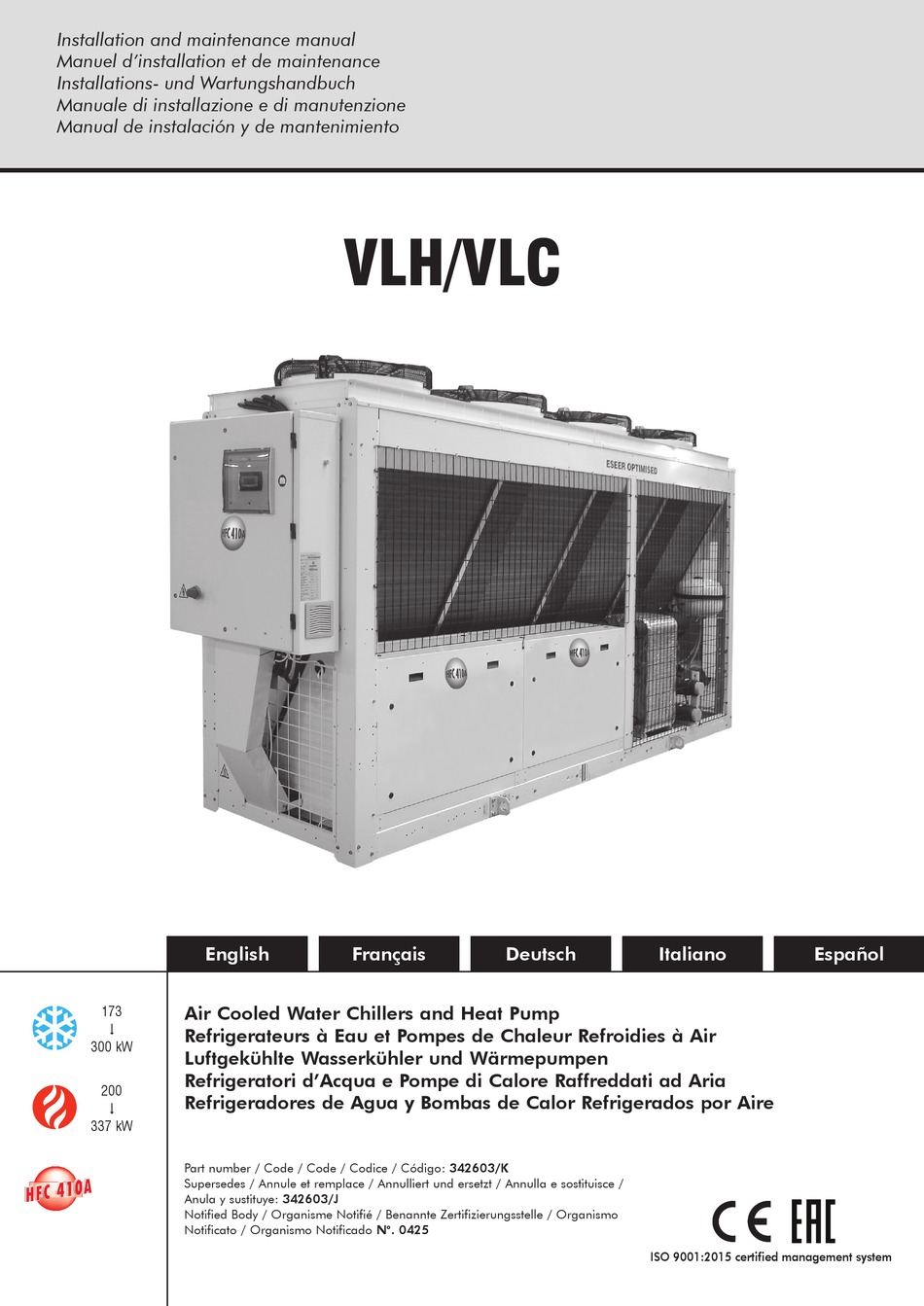

Installation and maintenance manual
Manuel d'installation et de maintenance
Installations- und Wartungshandbuch
Manuale di installazione e di manutenzione
Manual de instalación y de mantenimiento
English

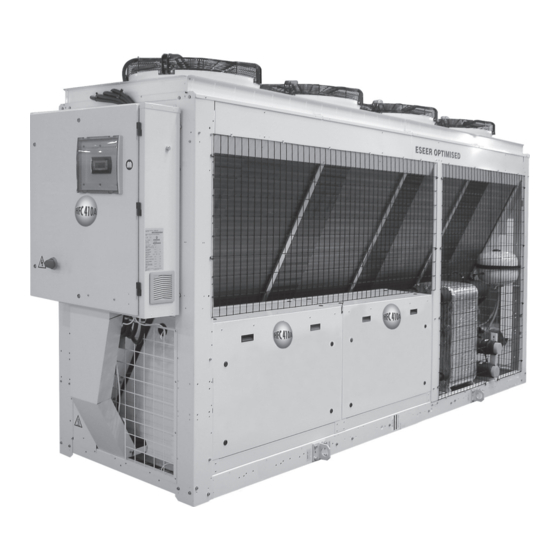

Air Cooled Water Chillers and Heat Pump
173
Refrigerateurs à Eau et Pompes de Chaleur Refroidies à Air
300 kW
Luftgekühlte Wasserkühler und Wärmepumpen
Refrigeratori d'Acqua e Pompe di Calore Raffreddati ad Aria
200
Refrigeradores de Agua y Bombas de Calor Refrigerados por Aire
337 kW
Part number / Code / Code / Codice / Código: 342603/K
Supersedes / Annule et remplace / Annulliert und ersetzt / Annulla e sostituisce /
Anula y sustituye: 342603/J
Notified Body / Organisme Notifié / Benannte Zertifizierungsstelle / Organismo
Notificato / Organismo Notificado N°. 0425
VLH/VLC
Français
Deutsch
Italiano
Español
ISO 9001:2015 certified management system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLH Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SystemAir VLH Series

  • Page 1 Installation and maintenance manual Manuel d’installation et de maintenance Installations- und Wartungshandbuch Manuale di installazione e di manutenzione Manual de instalación y de mantenimiento VLH/VLC English Français Deutsch Italiano Español Air Cooled Water Chillers and Heat Pump  Refrigerateurs à Eau et Pompes de Chaleur Refroidies à Air 300 kW Luftgekühlte Wasserkühler und Wärmepumpen Refrigeratori d’Acqua e Pompe di Calore Raffreddati ad Aria...
