Description
Model 7818-F5 is a double-post hoist (with
follower plate) designed to accommodate
pump assemblies (see Table 1) capable of
pumping medium- to heavy-weight material
from original 400-pound (180 kg) containers.
The air-operated power ram raises and
lowers the pump (not included) and follower
plate assembly. Pressure created from the
force on the follower plate causes the material
to enter the inlet of the pump.
Force and Pressure
The power ram develops a force of 1050
pounds (477 kg) on the follower when 100 psi
(6.9 Bars) of air pressure is applied to the
hoist. This translates into a pressure of 2.5 psi
on the material within a 400-pound container
(0.16 Bar for a 180 kg container).
Control Box
A pneumatic control box mounts to the left
column of the hoist. The operator positions
three separate valves to control the flow of air
to the hoist, pump's motor, and follower plate.
Models 7818-F4 and 7818-F5
Model 7818-F4 is obsolete.
Pump and Adapter
Pump Model Ratio
7785-A5 40:1
7786-A5 75:1
7886-A5 11:1
7889-C 40:1
7896-A5 22:1
* See Figure 3 for details
Table 1 Pump and Adapter Usage
This document contains confidential information that is the property of Alemite Corporation
670772
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Pump Hoist and Power Ram
Adapter *
327247
Hoist
Model
330976
327247
7818-F4
330976
7818-F5
Alemite Corporation
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
©
Copyright 2004 by Alemite Corporation
Overall Height
Down Position Up Position
Inches Meters Inches Meters Inches
69 1.75 106 2.69 42 x 24 1.07 x .61

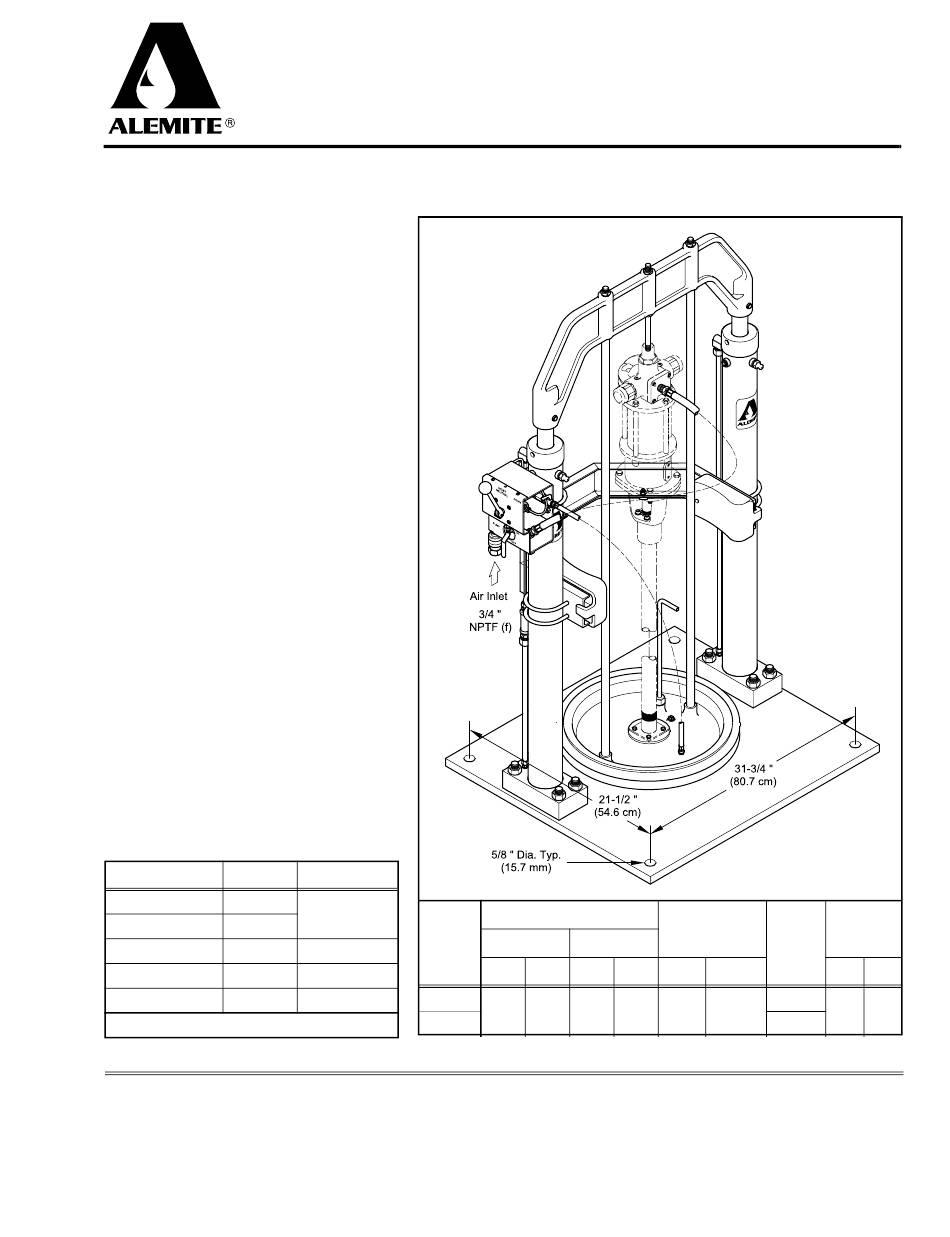

Figure 1 Pump Hoist Model 7818-F5
