Alemite 7880-C1 Service Manual

Description

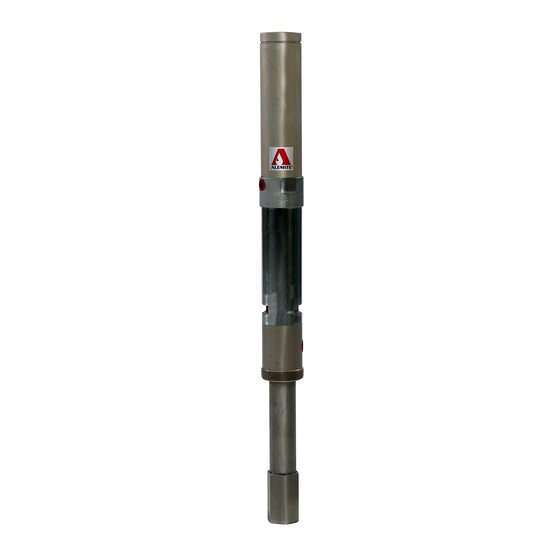

The major components of low-pressure pump model 7880-C1
consist of a reciprocating differential air motor and a double-acting
pump tube.
The pump is designed to deliver a mixture of antifreeze and
water. It can also be used to dispense windshield washer fluid and
water.
This low-pressure (2-1/2:1 ratio) pump includes a 2 " NPTF (m)
thread for mounting on the 2 '' bung thread of a drum or tank. With
the use of an extension (not included) the pump can accommodate
different size drums and tanks.
The pump can also mount to a wall (with the use of a wall
bracket) and be used with an optional siphon wand kit. See Table 4
for details.
Specifications
Differential Air Motor
Piston Effective
Diameter x Stroke Piston Area *
2
In Cm
In
2-1/16 x 4 5.2 x 10.2 1.67
For details on the air motor, refer to Service Guide SER 318450-4.
See Figure 3 for performance curves.
* The effective piston area of a differential air motor is equal to one-half the
actual area of the piston.
Pump Tube
Max. Fluid Max. Free-Flow
Pressure Delivery/Minute *
Fluid
Outlet
psi Bars Gallons
3/8 " NPTF (f) 500 34.5
See Figure 3 for performance curves.
* At 100 psi (6.9 Bars) air pressure
Table 1 Low-Pressure Pump Model 7880-C1 Specifications
This document contains confidential information that is the property of Alemite Corporation
396745
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Low-Pressure Pump
Air Inlet
2
Cm
10.8 1/4 " NPTF (f)
Recommended
Continuous
Delivery/Minute
Liters Gallons Liters
7 26.5 4-1/4 16.1
Alemite Corporation
PO Box 473515, Charlotte, North Carolina 28247-3515
www.alemite.com
©
Copyright
Maximum Air
Pressure
psi Bars
200 13.8
Displacement
per Cycle
3 3
In Cm
5.4 88
Figure 1 Low-Pressure Pump Model 7880-C1
2000 by Alemite Corporation
7880-C1
SER 7880-C1
Revision (6-00)
