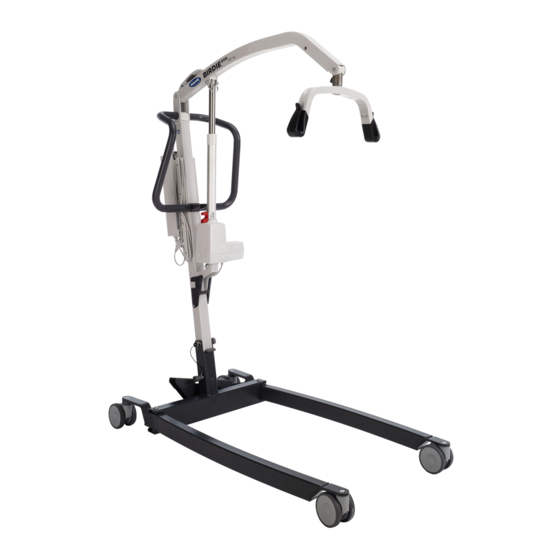

Invacare Birdie EVO Service Manual
Hide thumbs
Also See for Birdie EVO:
- Service manual (172 pages) ,
- User manual (36 pages) ,
- Mounting instruction (2 pages)
Table of Contents
Related Manuals for Invacare Birdie EVO
Summary of Contents for Invacare Birdie EVO
- Page 1 Invacare® Birdie® EVO Birdie® EVO, Birdie® EVO COMPACT, Birdie® EVO PLUS, Birdie® EVO XPLUS en Mobile Patient Lift Service Manual PROVIDER: Keep this manual. The procedures in this manual MUST be performed by a qualified technician.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 General ......... 4 1.1 Introduction . -
Page 4: General
CAUTION Find the user manual on Invacare’s website or contact Indicates a hazardous situation that could your Invacare representative. See addresses at the end result in minor or slight injury if it is not of this document. -
Page 5: Safety
Assembly of accessories might not be described in this service manual. Refer to the manual, delivered with the accessory. – Additional manuals can be ordered from Invacare. See addresses at the end of this document. Boom IMPORTANT! Spreader bar – with or without SMARTLOCK™... -
Page 6: Servicing
If the service light is required to be set for a period shorter than 12 months, a special handset and further instructions If not otherwise stated in the specific instructions the are required. Contact Invacare to order this handset and following guidelines apply: instructions. -
Page 7: Service Inspection Checklist
3.4 Service inspection checklist Model: REF / SN number: Comment Checkpoints for Invacare® Birdie® EVO according to ISO 10535:2006 Annex B ü û General inspection No unauthorized modifications All labels present and readable. (see full list of labels in the user manual) - Page 8 Invacare® Birdie® EVO Model: REF / SN number: Comment Checkpoints for Invacare® Birdie® EVO according to ISO 10535:2006 Annex B ü û Functional tests Castors smoothly swivel and roll Application and release of castor brakes is working properly Base fully opens and closes smoothly...
-
Page 9: Troubleshooting
Troubleshooting 4 Troubleshooting 4.1 Identifying and repairing faults Symptoms Faults Solution Patient lift feels loose. Mast/Base joint loose. Check and tighten the Mast/ Base connection. See “Installing the Mast” in the user manual or 5.1 Disassembling a foldable mast, page Mast/Boom joint loose. - Page 10 The detachable spreader bar does not The locking mechanism is damaged Replace the spreader bar connector. fix to the connector on the boom See 5.9 Replacing the damper, page 16 Contact your Invacare provider or representative if the above does not solve your problems. 60122366-B...
-
Page 11: Instructions
Instructions 5 Instructions 5.1 Disassembling a foldable mast CAUTION! Risk of injury and damage to property Improper handling of heavy parts can cause injury or damage to property. – Always perform the following procedures with the mast in folded position. –... -
Page 12: Replacing 75 Mm Castors
Invacare® Birdie® EVO 5.3 Replacing 75 mm castors 5.4 Replacing 100 mm castors 60122366-B... -
Page 13: Replacing 125 Mm Castors
Instructions 5.5 Replacing 125 mm castors 60122366-B... -
Page 14: Replacing The Spreader Bar
Invacare® Birdie® EVO 5.6 Replacing the spreader bar 60122366-B... -
Page 15: Replacing The Boom Actuator
Instructions 5.7 Replacing the boom actuator 60122366-B... -
Page 16: Replacing The Boom
Invacare® Birdie® EVO 5.8 Replacing the boom 5.9 Replacing the damper 60122366-B... -
Page 17: Replacing A Leg Actuator Without Cover
Instructions 5.10 Replacing a leg actuator without cover 60122366-B... -
Page 18: Replacing A Leg Actuator With Cover
Invacare® Birdie® EVO 5.11 Replacing a leg actuator with cover 60122366-B... - Page 19 Instructions 60122366-B...
-
Page 20: Replacing Electrical Legs Without Actuator Cover
Invacare® Birdie® EVO 5.12 Replacing electrical legs without actuator cover 60122366-B... -
Page 21: Replacing Electrical Legs With Actuator Cover
Instructions 5.13 Replacing electrical legs with actuator cover 60122366-B... -
Page 22: Replacing The Foot Pedal And/Or Rods
Invacare® Birdie® EVO 5.14 Replacing the foot pedal and/or rods 60122366-B... -
Page 23: Replacing Manual Legs
Instructions 5.15 Replacing manual legs 60122366-B... -
Page 24: Replacing The Cbj Home Control Unit
Invacare® Birdie® EVO 5.16 Replacing the CBJ Home control unit 60122366-B... -
Page 25: Replacing The Cbj Care, Cbj1 , Cbj2 Control Unit
Instructions 5.17 Replacing the CBJ Care, CBJ1 , CBJ2 control unit 60122366-B... -
Page 26: Smartlock
Invacare® Birdie® EVO 5.18 Installing the Wunder RS300 scale with SMARTLOCK® 60122366-B... -
Page 27: Installing The Wunder Rs300 Scale With A Fixed Spreader Bar
Instructions 5.19 Installing the Wunder RS300 scale with a fixed spreader bar 60122366-B... -
Page 28: Installing The Lever For Manual Leg Spreader
Invacare® Birdie® EVO 5.20 Installing the lever for manual leg spreader 60122366-B... - Page 29 Notes...
- Page 30 Notes...
- Page 31 Notes...
- Page 32 Italia: Nederland: Belgium & Luxemburg: Norge: Invacare AS Invacare Mecc San s.r.l., Invacare BV Invacare nv Grensesvingen 9, Postboks 6230, Via dei Pini 62, Galvanistraat 14-3 Autobaan 22 Etterstad I-36016 Thiene (VI) NL-6716 AE Ede...
