Пульт SR-2803B (для MIX-ленты, 6 зон)
Пульт SR-2803C (для MIX-ленты, 1 зона)
SR-2803B
FeatuRe
• SR-2803 B/C is RF Wireless CCT Dimmer.
• SR-2803 B let you individual ly control up to 6 different zones independently or in a group.
• SR-2803B, dim WW and CW associatively , for example if WW is 70%, CW is 30%. Dim 6 zones
separately or synchronously.
• SR-2803C, dim WW and CW associatively, for example if WW is 60%, CW is 40%. 1 zone. save 6
color temperature.
• Push dim function
PaRaMeteR
•
Remote
Part No.
Operation Voltage
SR-2803B
SR-2803C
•
Receiver
Part No.
SR-2501M
SR-2501MEA
SR-2502M
SR-2503M
PRODuCt SIze
SR-2803C
Operation Frequency
3VDC
868MHz
3VDC
868MHz
Iuput Voltage
12-36VDC
12-36VDC
12-36VDC
12-36VDC
Dimension ø/h (mm)
39x136.5x10.7
39x136.5x10.7
Current
Output
4x5A
4x(60-180)W
4x8A
4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x350mA
4x(8.4-25.2)W
Remarks
Battery CR2025
Battery CR2025
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
Advertisement
Table of Contents
Related Manuals for Sunricher SR-2803B
Summary of Contents for Sunricher SR-2803B

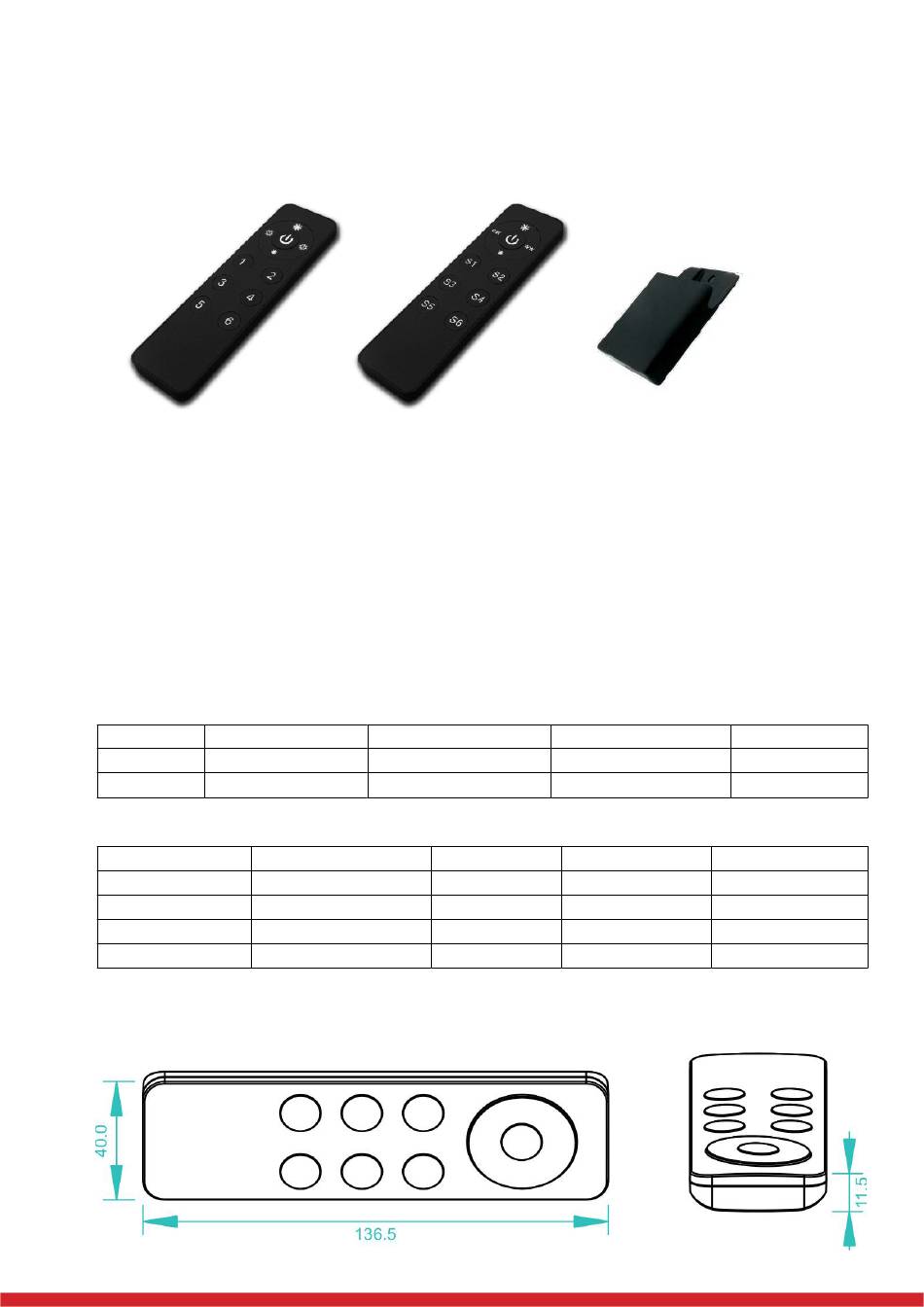

- Page 1 Пульт SR-2803B (для MIX-ленты, 6 зон) Пульт SR-2803C (для MIX-ленты, 1 зона) SR-2803C SR-2803B FeatuRe • SR-2803 B/C is RF Wireless CCT Dimmer. • SR-2803 B let you individual ly control up to 6 different zones independently or in a group. • SR-2803B, dim WW and CW associatively , for example if WW is 70%, CW is 30%. Dim 6 zones separately or synchronously. • SR-2803C, dim WW and CW associatively, for example if WW is 60%, CW is 40%. 1 zone. save 6 color temperature. • Push dim function PaRaMeteR • Remote Part No. Operation Voltage Operation Frequency Dimension ø/h (mm) Remarks...
- Page 2 WIRINg DIagRaM • Receiver Connection Diagram for Single unit • Receiver Connection Diagram for Multiple units BRIeF INtRODuCtION OF ButtONS • SR-2803B ON/OFF button Control CW Control WW Turn Up your selected zones’ receives’ (4 channels together) LED lights Turn Down your selected zones’ receives’ (4 channels together) LED lights 1 2 3 4 5 6 Six zones...
- Page 3 • SR-2803C ON/OFF button Control CW Control WW Turn Up your selected zones’ receives’ (4 channels together) LED lights Turn Down your selected zones’ receives’ (4 channels together) LED lights Save six color temperature OPeRatION After you have wired al l the receivers according to Figure illustration you need to do the fol low- ing: 1. Pul l off the plastic fi lm cover of the battery at the back of remote. 2. If you use multiple receivers, you have 2 choices: 1) Have al l receivers in the same zone l ike Zone 1 for example 2) Have each receiver in a different zone, like Zone 1, 2, 3 and so on 3. In order for each receiver to know what Zone it belongs to, you wi l l need to “pair” it to the zone you wish to use: short press the Learning Key on the receiver, and immediately short press the zone number (1-6) which you wish to use (for example Once you do that, the LED l ights wi l l bl ink once. Now your remote and receiver are paired! 4. Do the same for the other receivers if you use them. This wireless receiver can work in any of the 6 zones. It has a special “Learning Key” that wi l l enable you to pair it to any of the 6 zones in the wireless remote control. You can add as many optional receivers as you wish, to create up to 6 different control zones. Each zone can have an endless number of receivers. Memory Reset: In case you want to reset the memory of the receiver, press the learning function button for 10 seconds while the unit is being powered. The unit wi l l then reset to factory defaults. Re-assign zone: Re assigning the receiver to a different zone is easy, just repeat Step 3 as above. button to turn ON/OFF all zones’ LED lights. Long press the zone number for 3 seconds to turn OFF that zone separately (for example ), and you can turn it ON only by long press that zone number again, but Not the power button. After ID learning between remote and receiver, press the zone number (for example )to select the zone you want to control. Regarding SR-2803C saving color temperature, first choose CCT you like, short press , the light will be blink, it means you save this CCT to , then you also can save other 5 CCT to S2-S6. Just...
