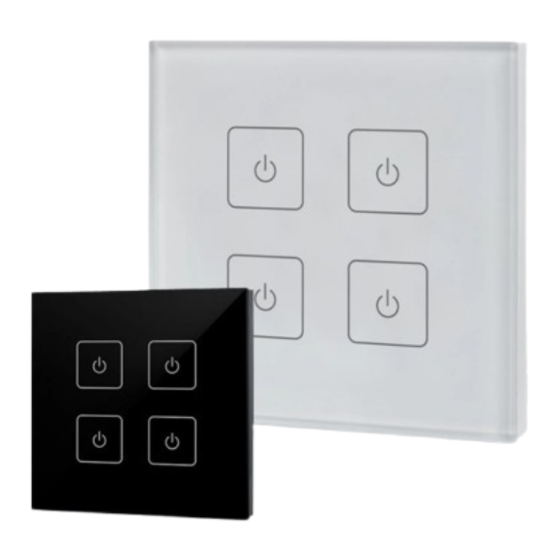

Sunricher SR-2833T2 Quick Start Manual

RF Single Color Wall Mounted Controller
Important: Read All Instructions Prior to Installation

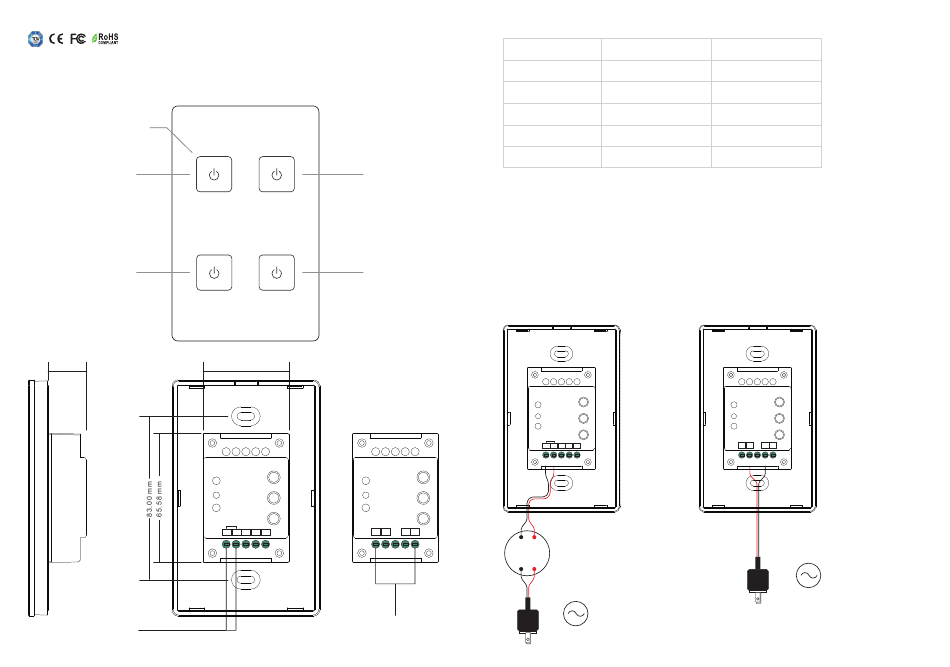

Function introduction

Click to turn on/off, press and
hold down to increase/decrease
light intensity
Zone 1
Zone 3
19.4 mm
DC Power input
Zone 2
Zone 4
Front side
43.58 mm
DC Version AC Version
RF Wall Panel RF Wall Panel
Controller Controller
DC INPUT
AC INPUT
V- V+ L L
AC Power input
Back side

Product Data

09.28T2U.04212
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers, radio frequency: 916.5MHz
• Control single color
• Control 4 zones of RF receiver
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Wiring diagram

DC Version
RF Wall Panel
Controller
DC INPUT
V- V+
N N
12-24VDC
PSU
AC Power
50/60Hz
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
200 mA 15 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
75x120x29.1mm 75x120x29.1mm
AC Version
AC Version
RF Wall Panel
Controller
AC INPUT
L L N N
AC Power
50/60Hz
AC 100-240V
