General

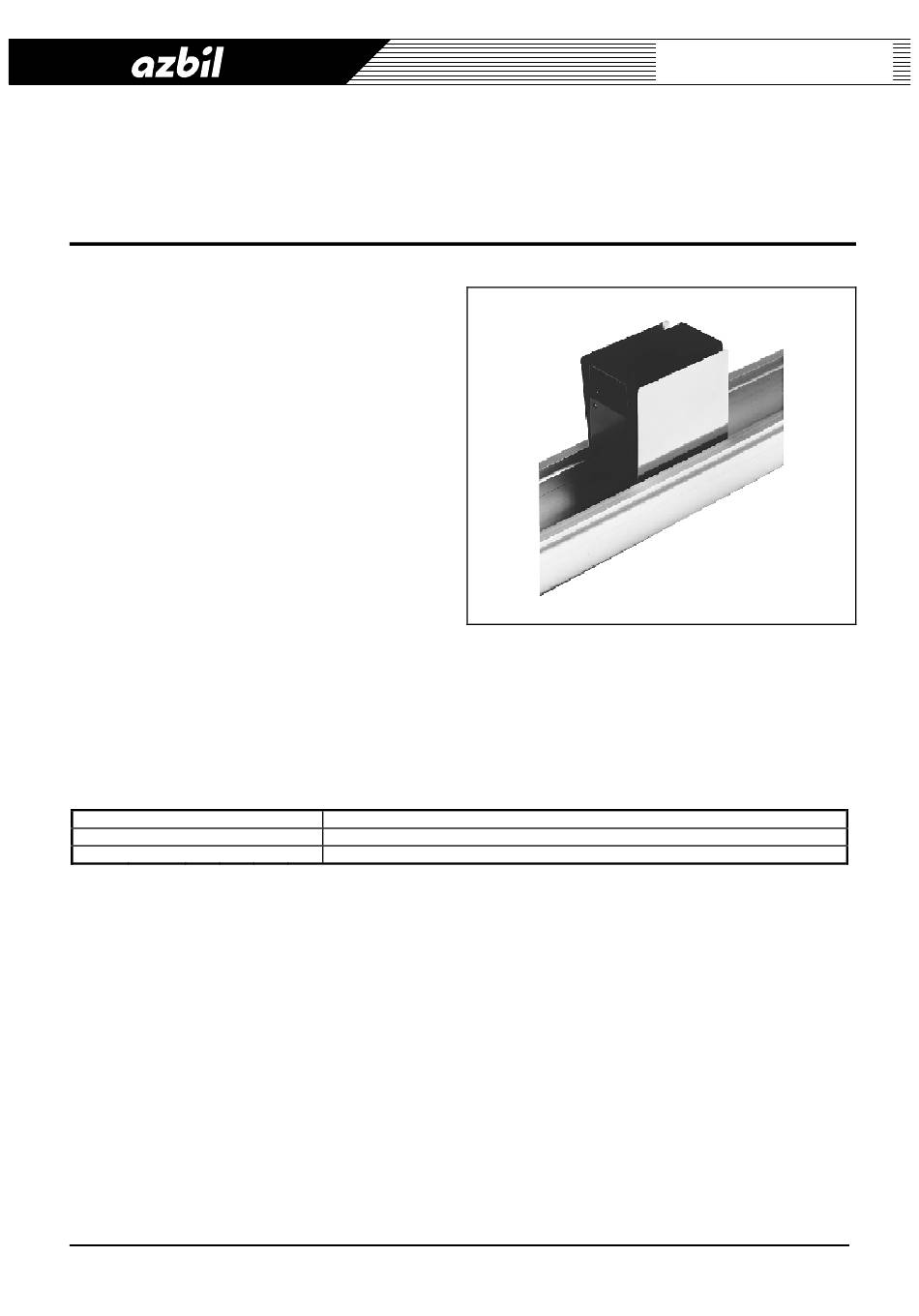

The HTY7033 Ceiling Mounted Sensor uses a Pt100
platinum film temperature sensing element and a poly-
mer capacitive film humidity sensing element (FP3 spe-
cially developed by Azbil Corporation) which ensures
highly accurate and reliable temperature/humidity sens-
ing. It is designed to be installed to narrow opening of
system ceilings and can be used to control or measure
temperature and humidity.
TY7033 for temperature only is also available.
Features
1) Wide sensing range.
2) Excellent long term stablility.
3) Highly resistant to environment.
Models
HTY
7033
T
1
TY
7033
Z
0
TY
7033
Z
0
Ceiling Mounted Sensor
HTY7033/ TY7033
P
00
Humidity (1-5 V) + Temperature (Pt100) Lead wire output
P
00
Temperature (Pt100)
P
01
Temperature (Pt100)
4) Quick response and high repeatability.
5) Easy installation on the "double T bar" of the narrow
opening of system ceiling.
Lead wire output
Modular jack output
1
AB-5965
Specifications/Instructions
Advertisement
Table of Contents
Related Manuals for Azbil HTY 7033
Summary of Contents for Azbil HTY 7033
- Page 1 (FP3 spe- cially developed by Azbil Corporation) which ensures highly accurate and reliable temperature/humidity sens- ing. It is designed to be installed to narrow opening of system ceilings and can be used to control or measure temperature and humidity.
-
Page 2: Specifications
If this product is used in clean rooms or places where reliability or control accuracy is particularly required, please contact Azbil Corporation’s sales representatives. Azbil Corporation bears no responsibility for any benefit, or lack of benefit, derived from the operation by the customer. -
Page 3: Dimensions (Mm)
Dimensions(mm) Wiring approx. 85 Brown ～(+) Power 24V AC Black supply ⊥(–) (24V HTY7033T1P00 Blue 1-5VDC Humidity Black – TY7033Z0P00 White Temp-e Pt100 rature White Black wire of power supply and humidity output is wired inside sensor. “Double T bar” Applicable products (confirmed) Maker Aluminum... -
Page 4: Cautions On Wiring
40dB or higher (normal mode). • Connect an isolator to the controller input circuit if a removal ratio is unknown. Multi-loop Humidity/temperature • If you use a Azbil Corporation cotnroller, no problem controller sensor 24VAC will occur. ～ ＋... -
Page 5: Troubleshooting
Troubleshooting Problem… Check… Action… - No output - Check loose - Re-connect the wire generated connection - Check Incorrect wiring - Unstable output - Check supply voltage - Check sensor - Replace sensor damage - Slow response - Check the sensor - Remove cover for water leakage or Dry the unit with no... - Page 6 Specifications are subject to change without notice. Building Systems Company http://www.azbil.com/ Rev.1.1 Jul. 2012 AB-5965 0.5H-H (W) Printed in Japan.
