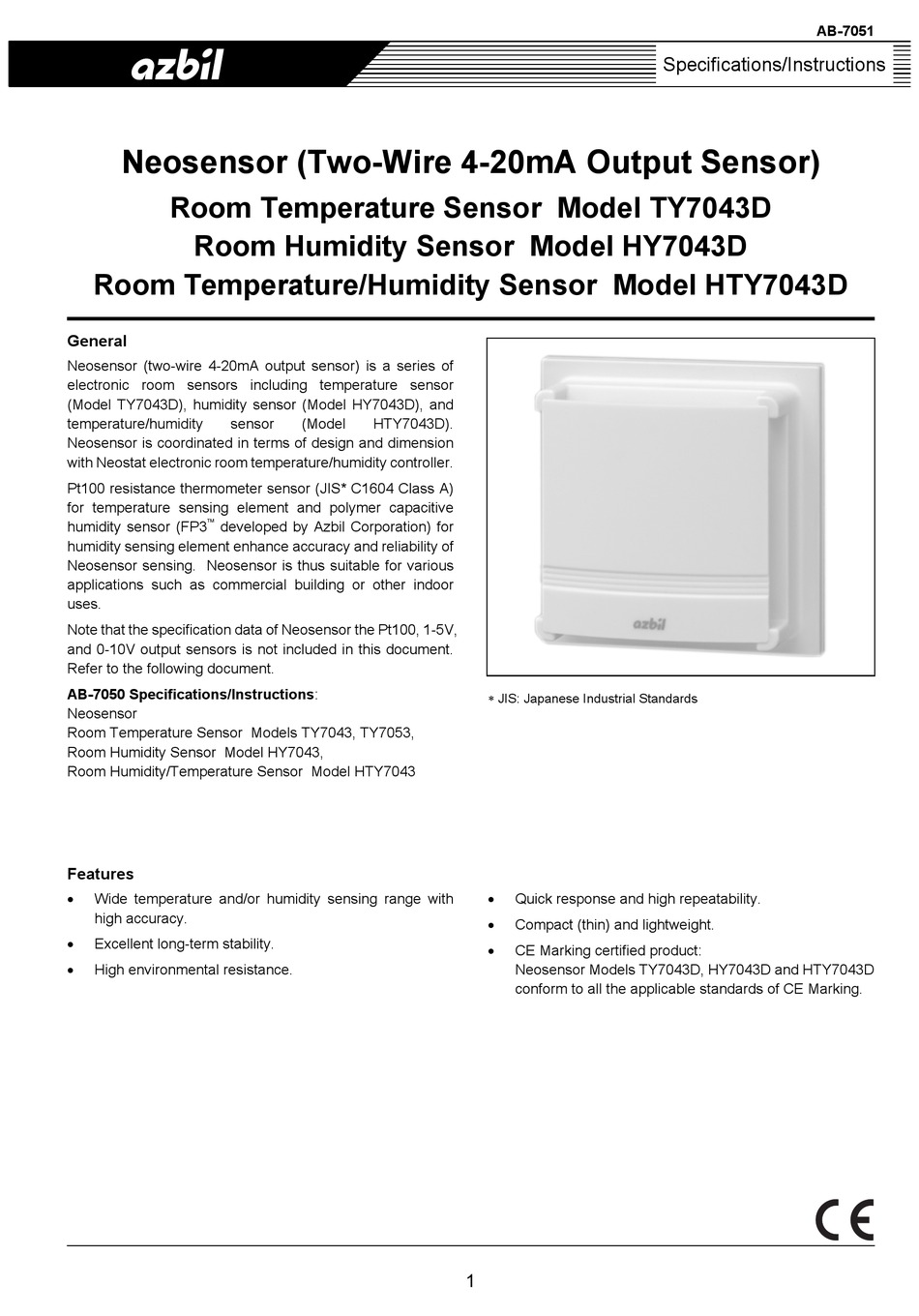

Azbil TY7043D Specifications & Instructions

Neosensor (Two-Wire 4-20mA Output Sensor)

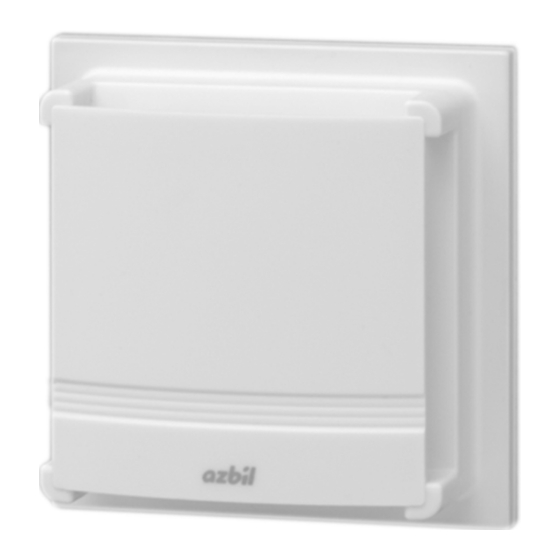

Room Temperature Sensor Model TY7043D
Room Humidity Sensor Model HY7043D
Room Temperature/Humidity Sensor Model HTY7043D
General
Neosensor (two-wire 4-20mA output sensor) is a series of
electronic room sensors including temperature sensor
(Model TY7043D), humidity sensor (Model HY7043D), and
temperature/humidity sensor
Neosensor is coordinated in terms of design and dimension
with Neostat electronic room temperature/humidity controller.
Pt100 resistance thermometer sensor (JIS* C1604 Class A)
for temperature sensing element and polymer capacitive

humidity sensor (FP3 developed by Azbil Corporation) for
humidity sensing element enhance accuracy and reliability of
Neosensor sensing. Neosensor is thus suitable for various
applications such as commercial building or other indoor
uses.
Note that the specification data of Neosensor the Pt100, 1-5V,
and 0-10V output sensors is not included in this document.
Refer to the following document.
AB-7050 Specifications/Instructions:
Neosensor
Room Temperature Sensor Models TY7043, TY7053,
Room Humidity Sensor Model HY7043,
Room Humidity/Temperature Sensor Model HTY7043
Features

Wide temperature and/or humidity sensing range with
high accuracy.

Excellent long-term stability.

High environmental resistance.
(Model HTY7043D).
1
 JIS: Japanese Industrial Standards

Quick response and high repeatability.

Compact (thin) and lightweight.

CE Marking certified product:
Neosensor Models TY7043D, HY7043D and HTY7043D
conform to all the applicable standards of CE Marking.
AB-7051
Specifications/Instructions
