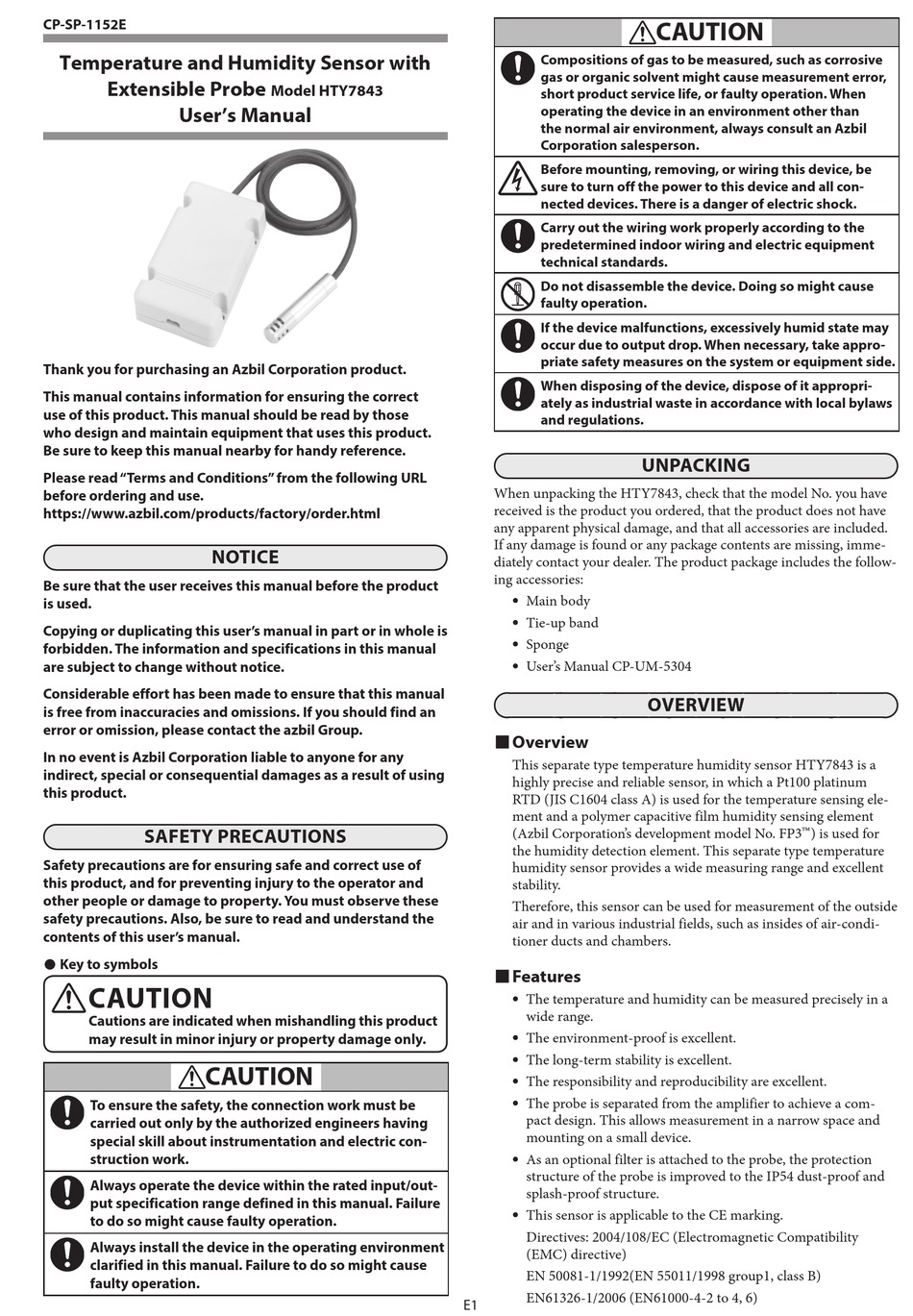

Azbil HTY7843 User Manual

CP-SP-1152E
Temperature and Humidity Sensor with
Extensible Probe
User's Manual
Thank you for purchasing an Azbil Corporation product.
This manual contains information for ensuring the correct
use of this product. This manual should be read by those
who design and maintain equipment that uses this product.
Be sure to keep this manual nearby for handy reference.
Please read "Terms and Conditions" from the following URL
before ordering and use.
https://www.azbil.com/products/factory/order.html
NOTICE
Be sure that the user receives this manual before the product
is used.
Copying or duplicating this user's manual in part or in whole is
forbidden. The information and specifications in this manual
are subject to change without notice.
Considerable effort has been made to ensure that this manual
is free from inaccuracies and omissions. If you should find an
error or omission, please contact the azbil Group.
In no event is Azbil Corporation liable to anyone for any
indirect, special or consequential damages as a result of using
this product.
SAFETY PRECAUTIONS
Safety precautions are for ensuring safe and correct use of
this product, and for preventing injury to the operator and
other people or damage to property. You must observe these
safety precautions. Also, be sure to read and understand the
contents of this user's manual.
Key to symbols
l
CAUTION
Cautions are indicated when mishandling this product
may result in minor injury or property damage only.
CAUTION
To ensure the safety, the connection work must be
carried out only by the authorized engineers having
special skill about instrumentation and electric con-
struction work.
Always operate the device within the rated input/out-
put specification range defined in this manual. Failure
to do so might cause faulty operation.
Always install the device in the operating environment
clarified in this manual. Failure to do so might cause
faulty operation.
Model HTY7843
Compositions of gas to be measured, such as corrosive
gas or organic solvent might cause measurement error,
short product service life, or faulty operation. When
operating the device in an environment other than
the normal air environment, always consult an Azbil
Corporation salesperson.
Before mounting, removing, or wiring this device, be
sure to turn off the power to this device and all con-
nected devices. There is a danger of electric shock.
Carry out the wiring work properly according to the
predetermined indoor wiring and electric equipment
technical standards.
Do not disassemble the device. Doing so might cause
faulty operation.
If the device malfunctions, excessively humid state may
occur due to output drop. When necessary, take appro-
priate safety measures on the system or equipment side.
When disposing of the device, dispose of it appropri-
ately as industrial waste in accordance with local bylaws
and regulations.
When unpacking the HTY7843, check that the model No. you have
received is the product you ordered, that the product does not have
any apparent physical damage, and that all accessories are included.
If any damage is found or any package contents are missing, imme-
diately contact your dealer. The product package includes the follow-
ing accessories:
•
Main body
•
Tie-up band
•
Sponge
•
User's Manual CP-UM-5304
„ „

Overview

This separate type temperature humidity sensor HTY7843 is a
highly precise and reliable sensor, in which a Pt100 platinum
RTD (JIS C1604 class A) is used for the temperature sensing ele-
ment and a polymer capacitive film humidity sensing element
(Azbil Corporation's development model No. FP3
the humidity detection element. This separate type temperature
humidity sensor provides a wide measuring range and excellent
stability.
Therefore, this sensor can be used for measurement of the outside
air and in various industrial fields, such as insides of air-condi-
tioner ducts and chambers.
„ „

Features

•
The temperature and humidity can be measured precisely in a
wide range.
•
The environment-proof is excellent.
•
The long-term stability is excellent.
•
The responsibility and reproducibility are excellent.
•
The probe is separated from the amplifier to achieve a com-
pact design. This allows measurement in a narrow space and
Mounting on a small device.
•
As an optional filter is attached to the probe, the protection
structure of the probe is improved to the IP54 dust-proof and
splash-proof structure.
•
This sensor is applicable to the CE marking.
Directives: 2004/108/EC (Electromagnetic Compatibility
(EMC) directive)
EN 50081-1/1992(EN 55011/1998 group1, class B)
EN61326-1/2006 (EN61000-4-2 to 4, 6)
