CONNECTION DIAGRAM

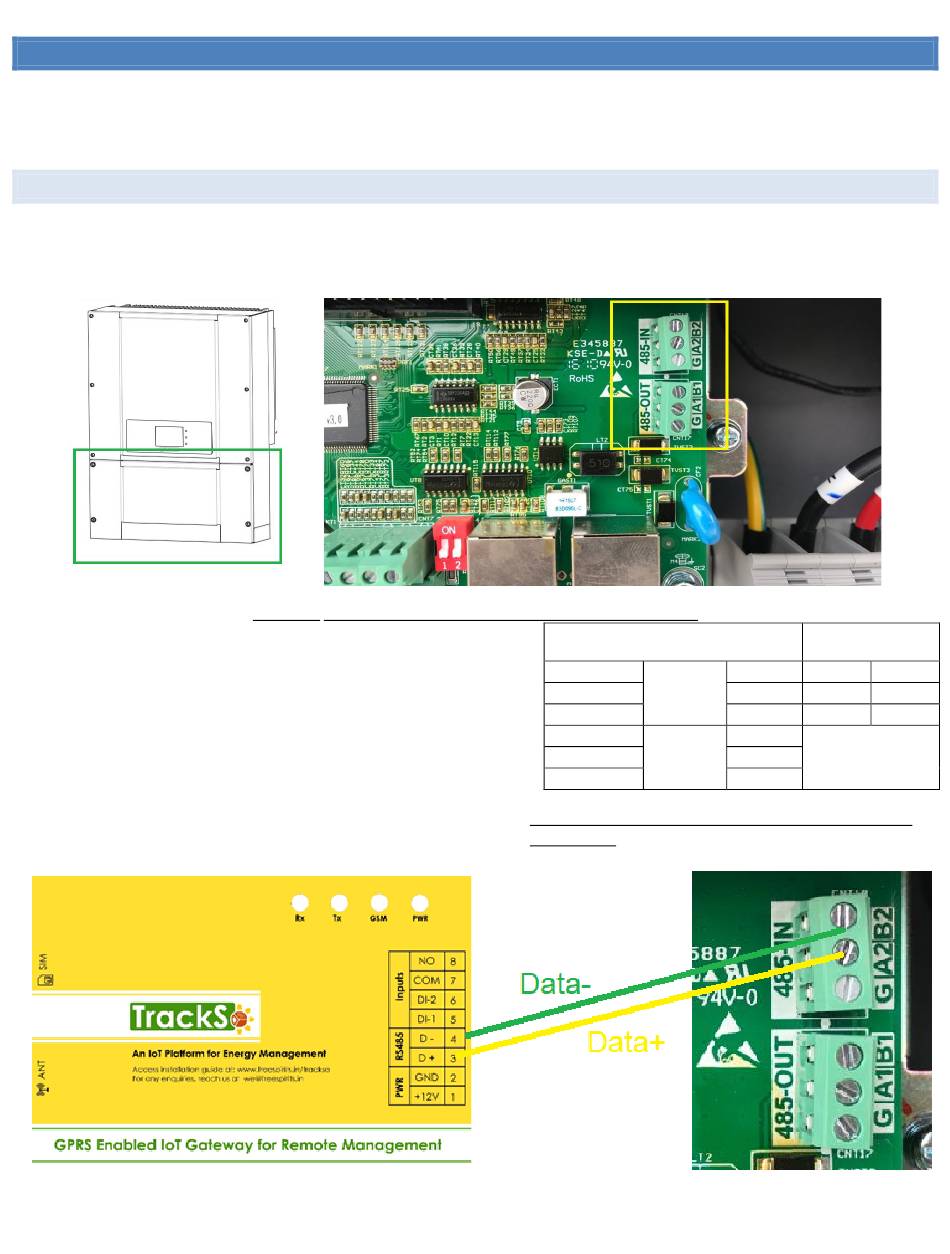

Locate communication terminals (RS485) as shown in the picture below. There are two connection terminals on the configuration
circuit board: RS485IN and RS485OUT (used for Daisy Chain connections)
Connection steps
Please unscrew the RS485 terminal as shown in A part of Figure
S1.
Please make the connections from the Terminal Block to TrackSo
IoT Gateway as mentioned in Table – ST1.
Provide 12V external supply to TrackSo IoT Gateway via 12V, 2A DC
adaptor provided in the package

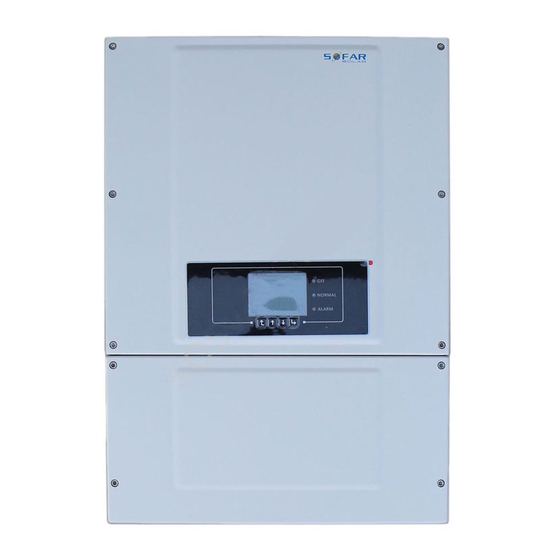

TRACKSO INSTALLATION GUIDE FOR SOFAR
Figure S1: Sofar String Inverter communicatio port & Connections
SOFAR Pin no. & Assignment
1
485-IN
2
3
4
485-OUT
5
6
Table ST1 – SOFAR RS485 chip connections with TrackSo
IoT Gateway
TrackSo Pin No.&
Assignment
B2
4
Data-
A2
3
Data+
G
B1
Used for Daisy
A1
Chain
Connection
G
